4WD Control Ecu: Installation

INSTALL 4WD CONTROL ECU
1. Install the ECU with the bolt.
  Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

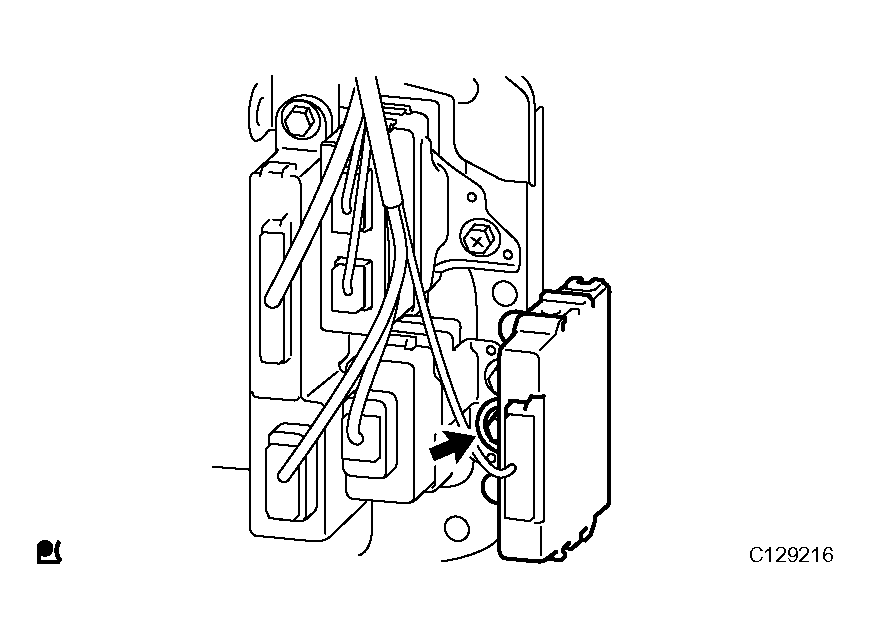

  Fig 1: Installing 4WD Control ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See appropriate step(s) under INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
