Active Torque Control 4WD System
›
System Diagram
System Diagram

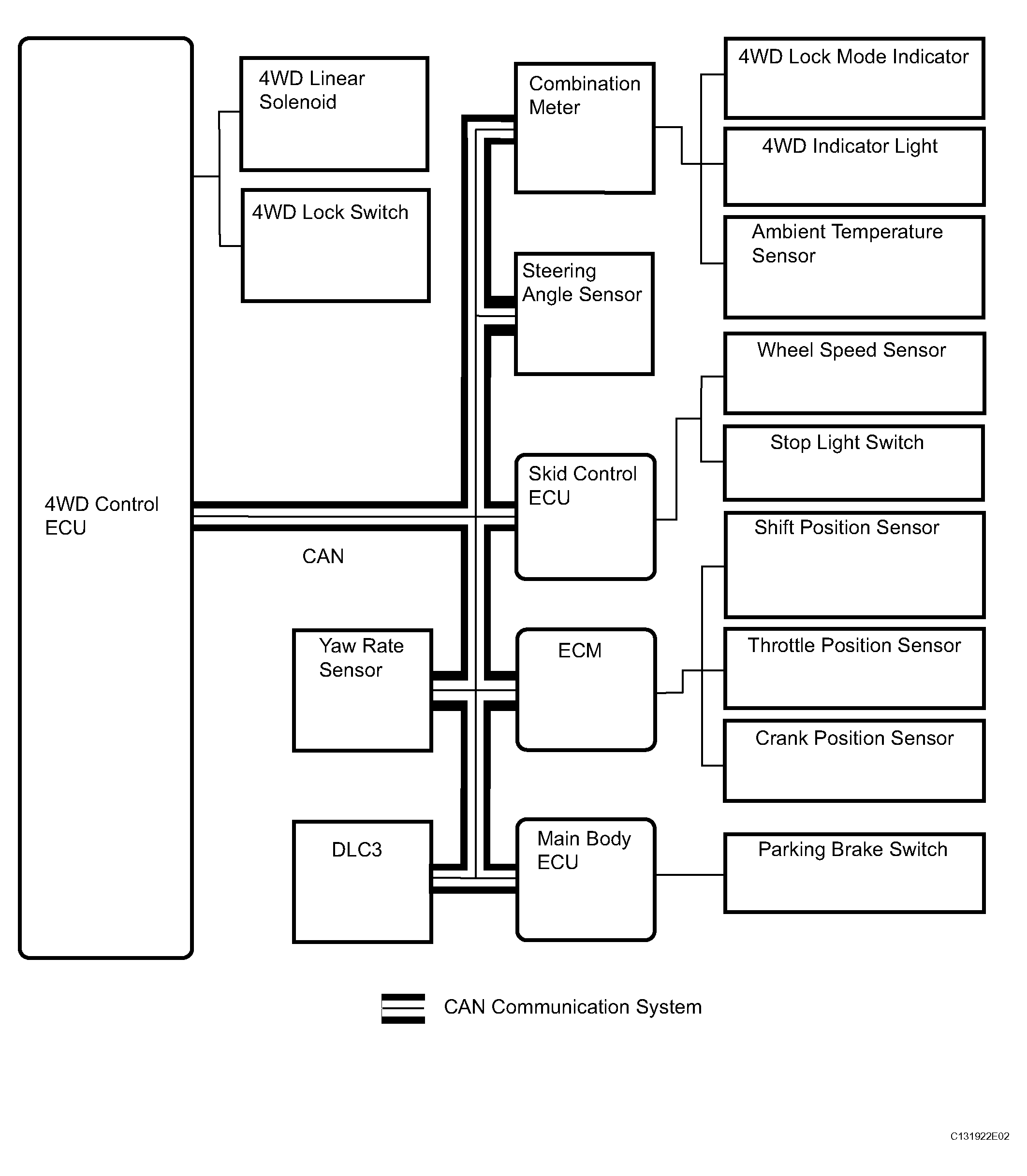

Fig 1: Active Torque Control 4WD System - Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
