Knock Sensor: Components

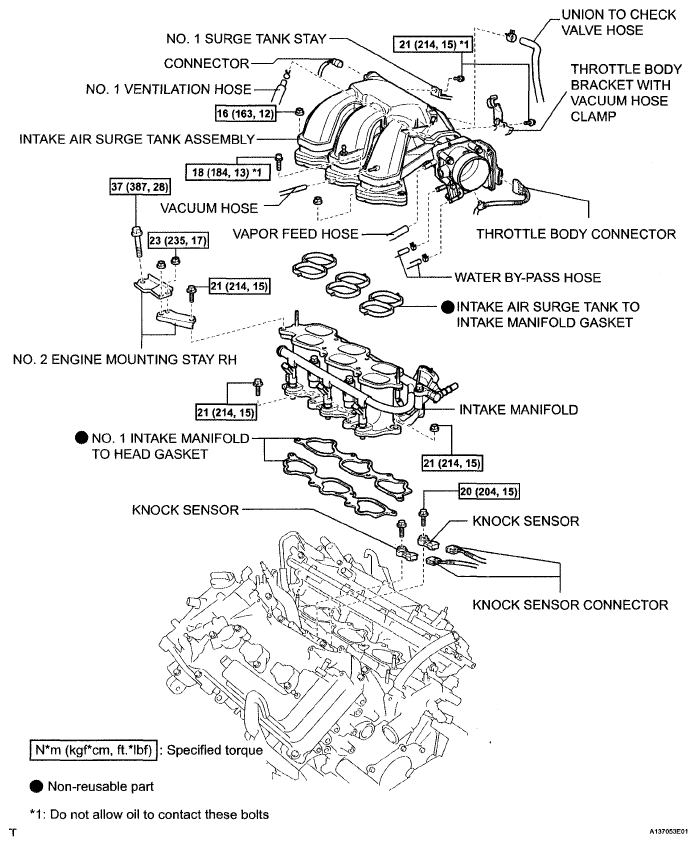

Fig 1: Knock Sensor Replacement Components With Torque Specifications

G05184283

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
