Toyota
›
2007
›
RAV4 Base, 3.5 K, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System (2GR-FE)
›
SFI System
›
Parts Location
Parts Location

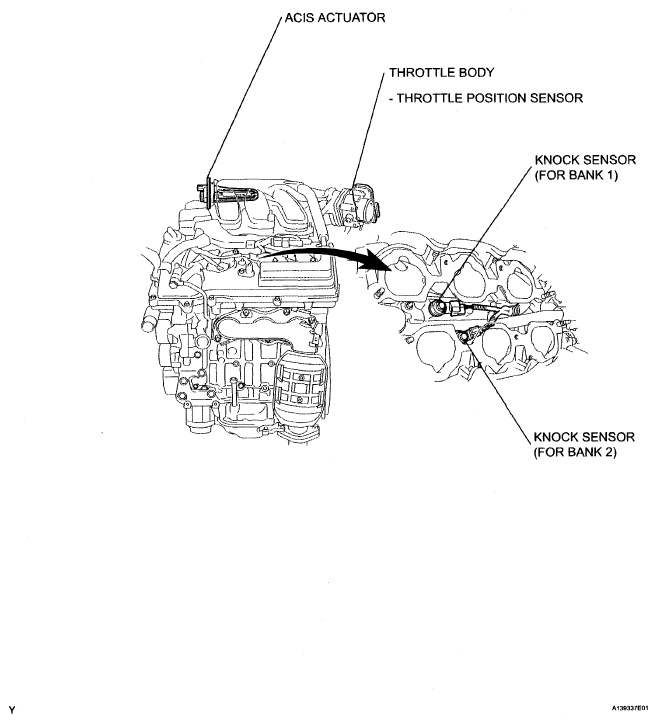

Fig 1: Identifying Engine Control System Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

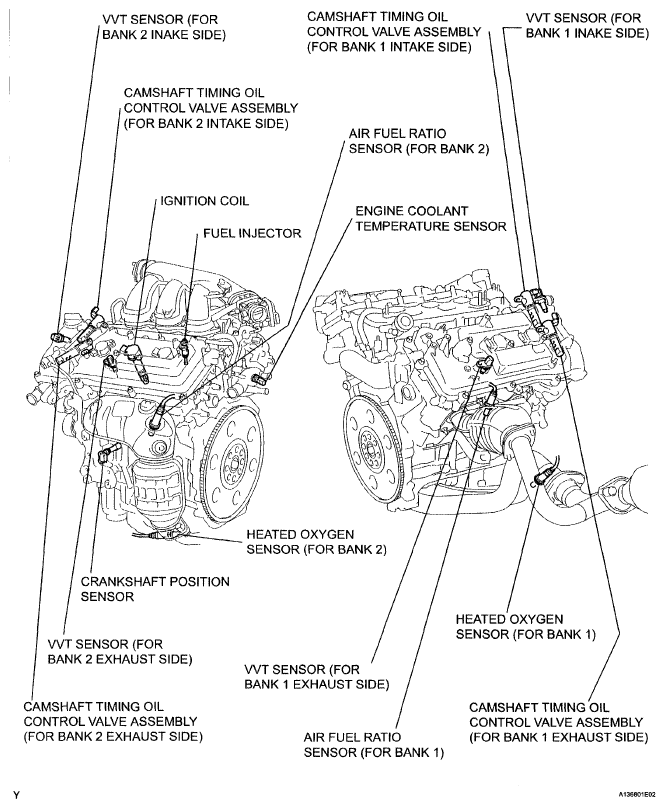

Fig 2: Identifying Engine Control System Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

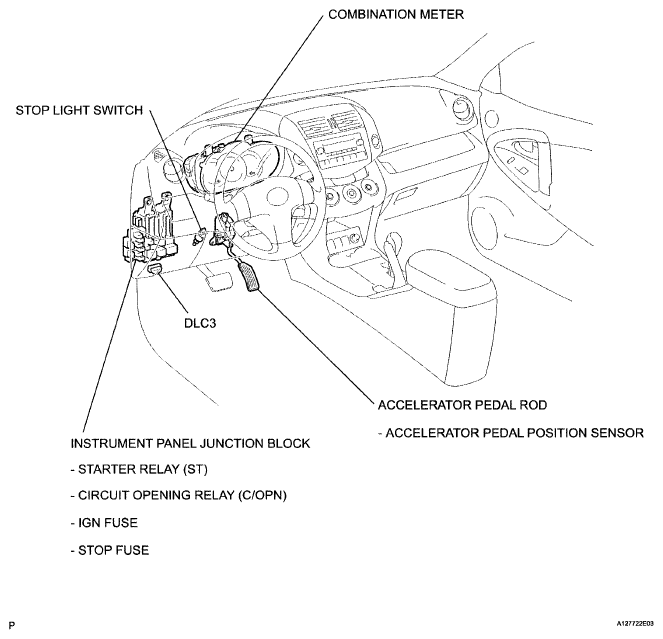

Fig 3: Identifying Engine Control System Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

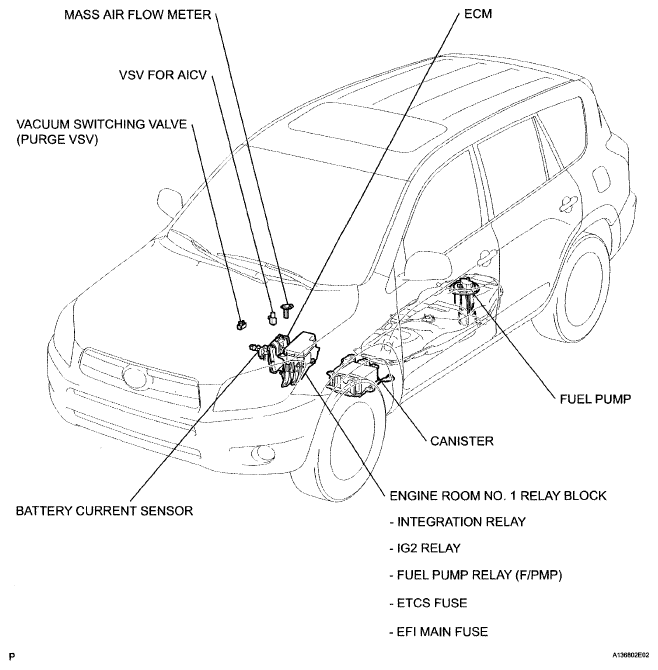

Fig 4: Identifying Engine Control System Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
