VC Output Circuit: Wiring Diagram

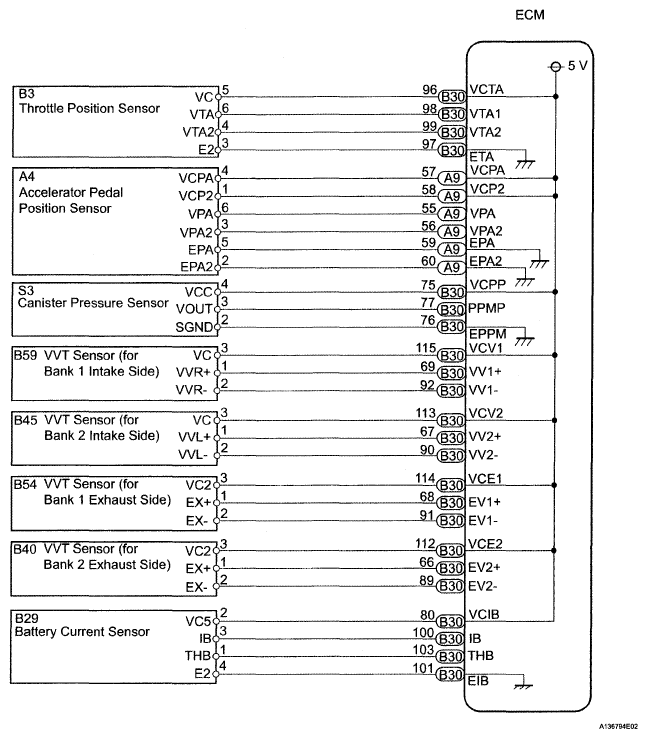

Fig 1: VC Output Wiring Diagram

G05184227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
