Fuel Pressure Pulsation Damper: Components

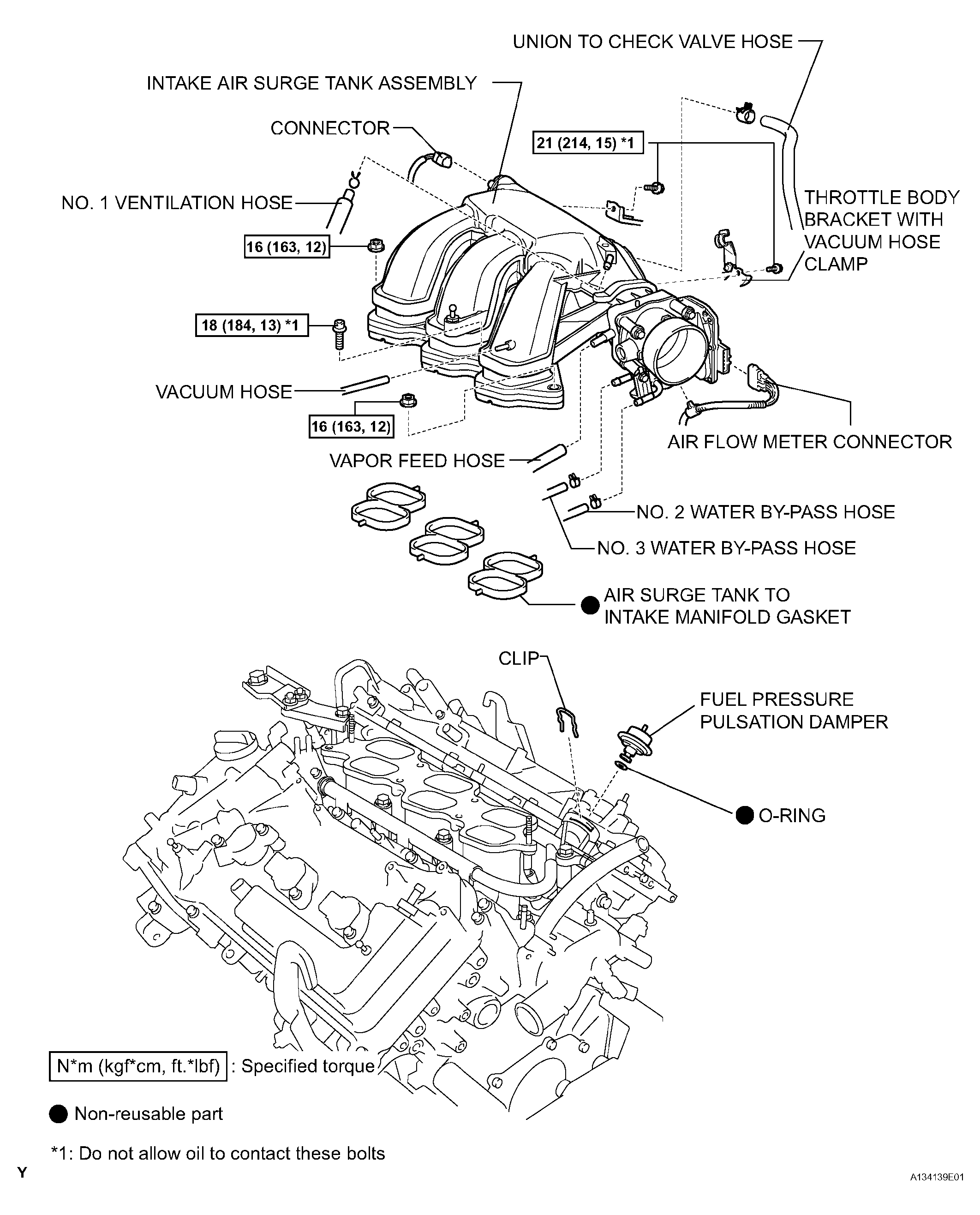

Fig 1: Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
