Fuel Pump Resistor: Installation

INSTALL FUEL PUMP RESISTOR

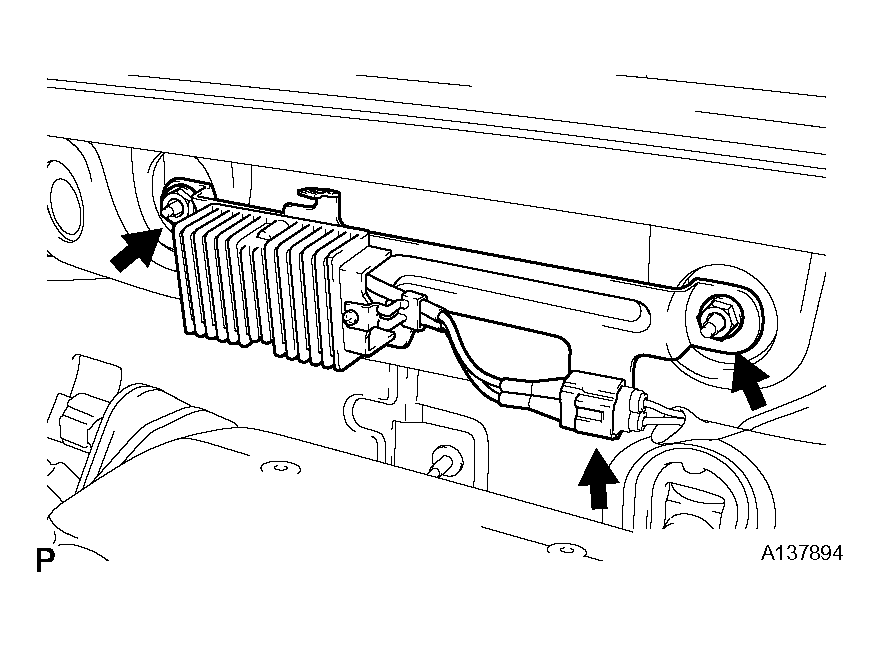

1. Install the resistor with the 2 bolts.
  Torque: 7.0 N*m (71.4 kgf*cm, 62 in.*lbf)
2. Connect the connector.
INSTALL FUEL PUMP RESISTOR COVER
1. Install the cover to the resistor.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Fig 1: Installing Cover To Resistor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
