RAV4 Base, 3.5 K, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Engine Fuel System (2GR-FE)
›
Fuel Tank
›
Components
Fuel Tank: Components

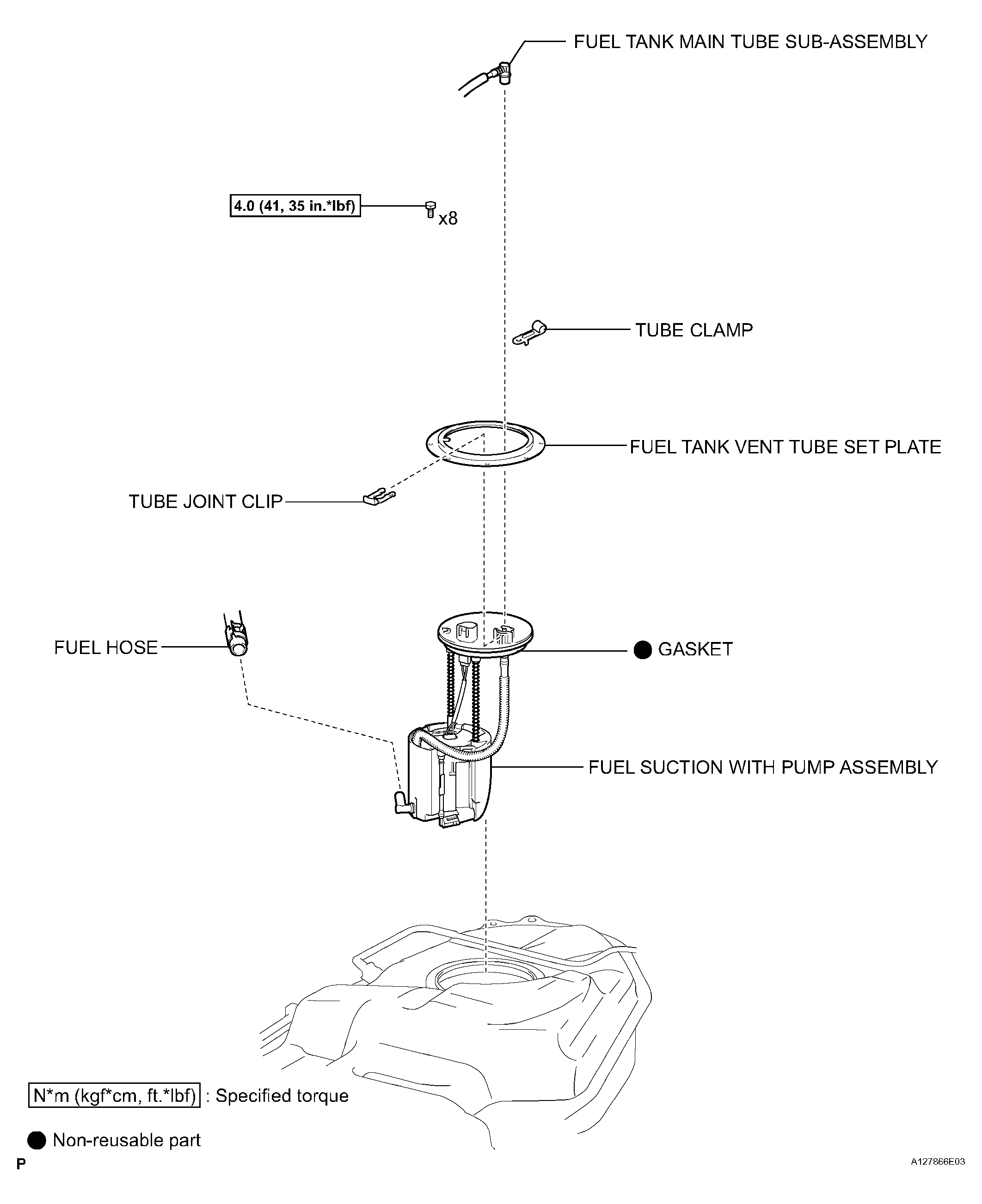

Fig 1: Identifying Fuel Tank Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

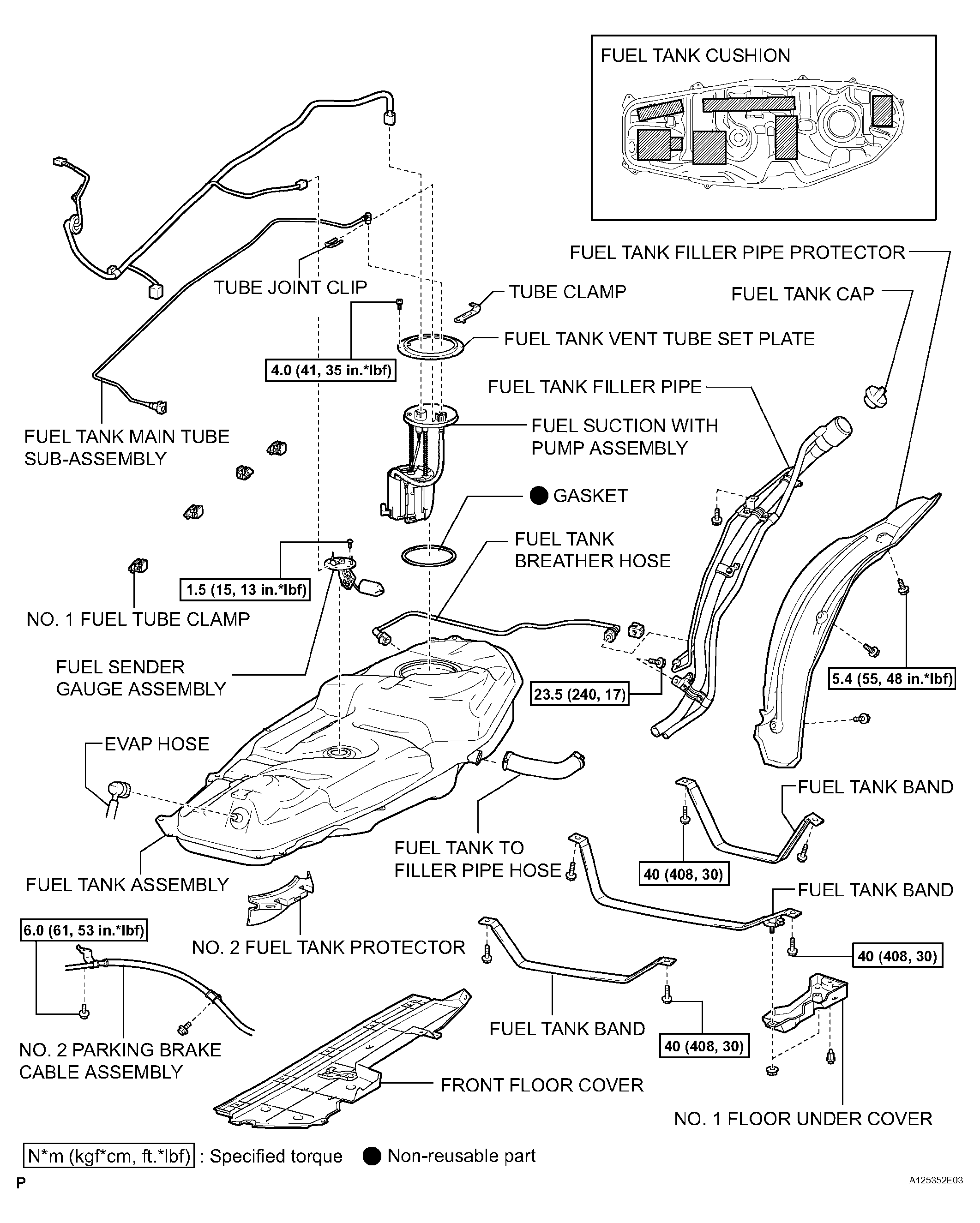

Fig 2: Identifying Fuel Tank Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
