FixVault
Home
›
Toyota
›
2007
›
Sequoia Limited, 4WD
›
Repair and Diagnosis
›
Engine Mechanical
›
Lubrication System
›
Engine Lubrication System
›
Oil Nozzle
›
Components
Oil Nozzle: Components

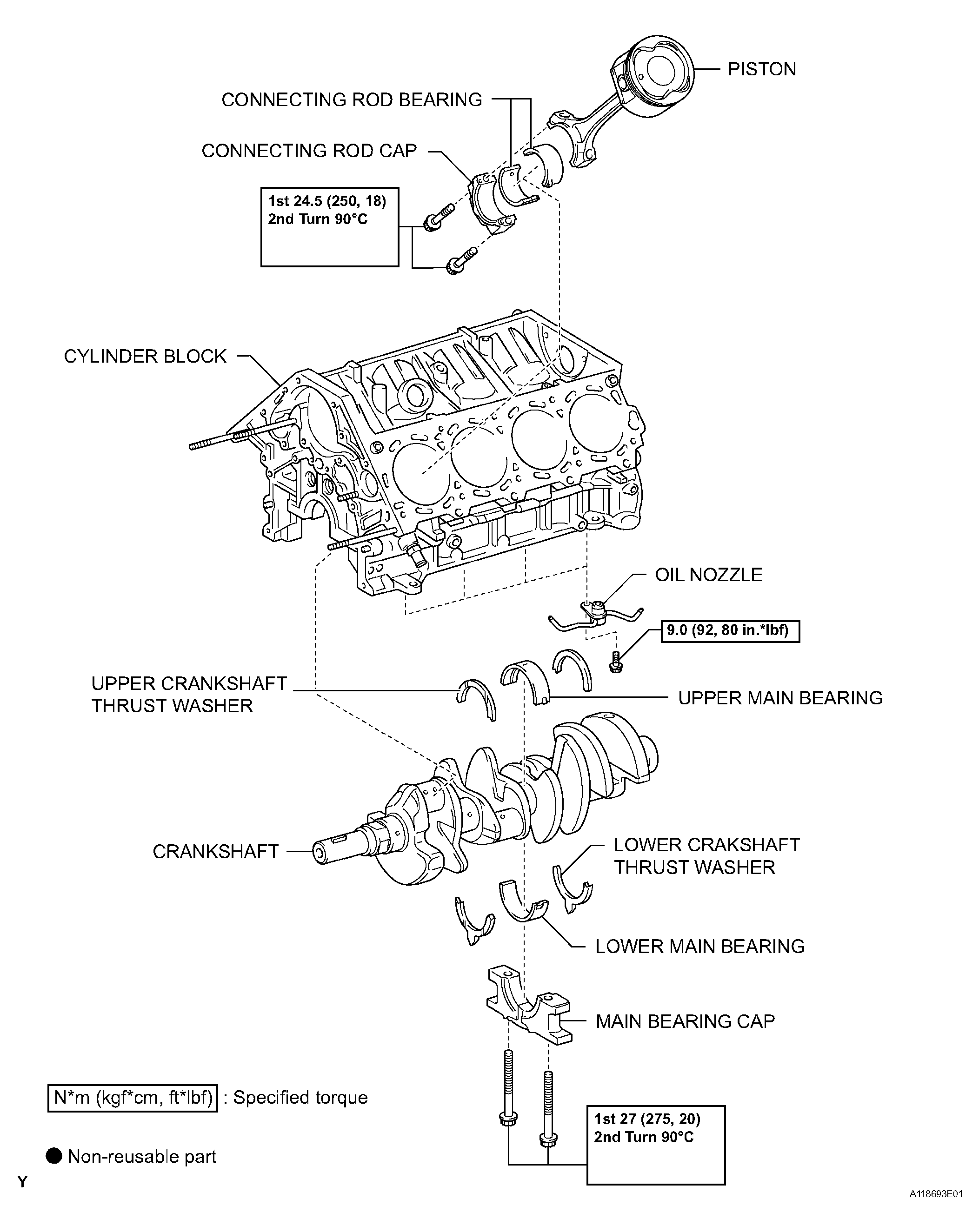

Fig 1: Oil Nozzle Replacement Components & Torque Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
