Fuel Injector: Components

Fig 1: Identifying Fuel Injector Components
G04507433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

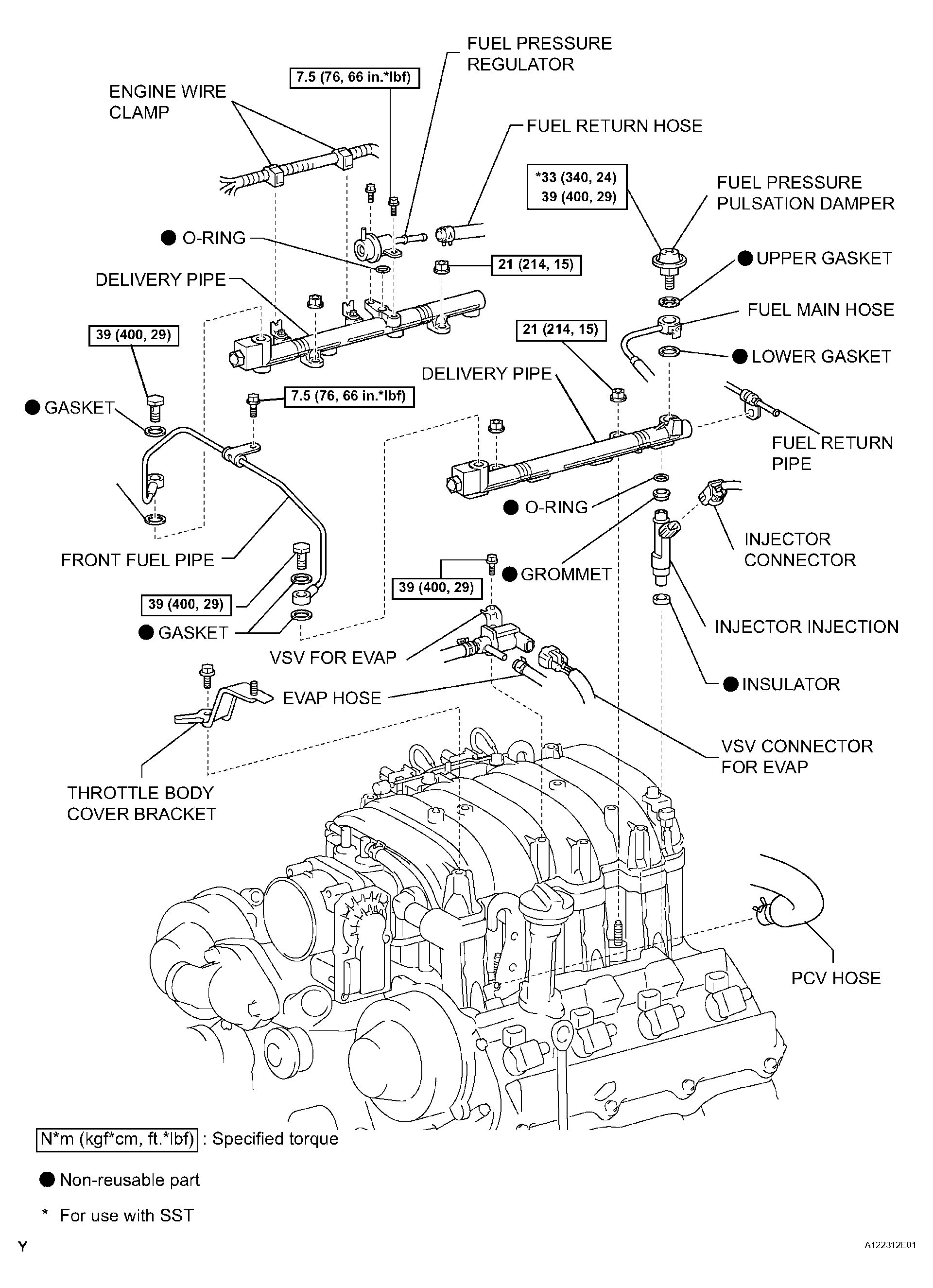

Fig 2: Fuel Injector Replacement Components With Torque Specifications
G04507434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
