Fuel Pump: Components

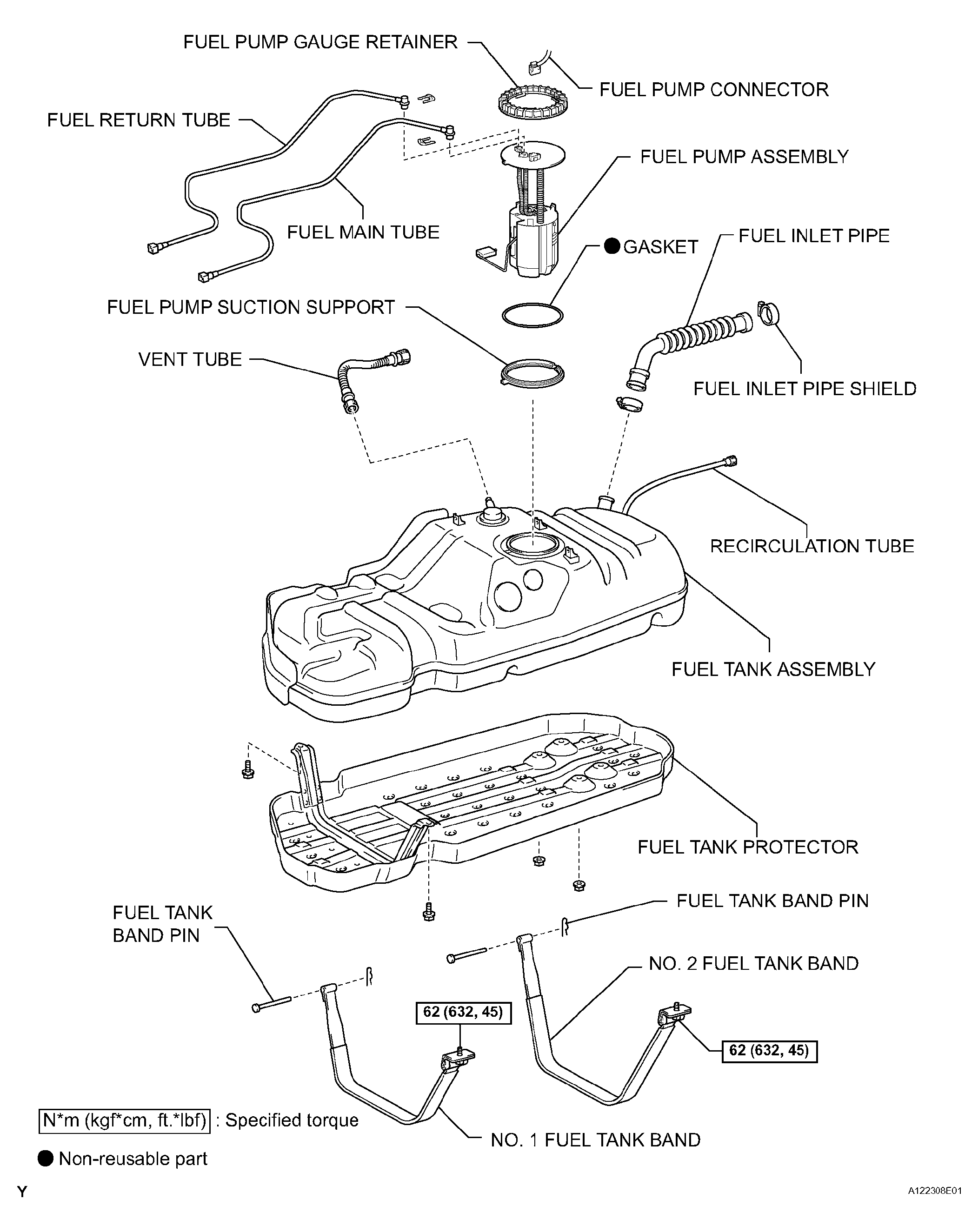

Fig 1: Fuel Pump Replacement Components With Torque Specifications
G04507457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

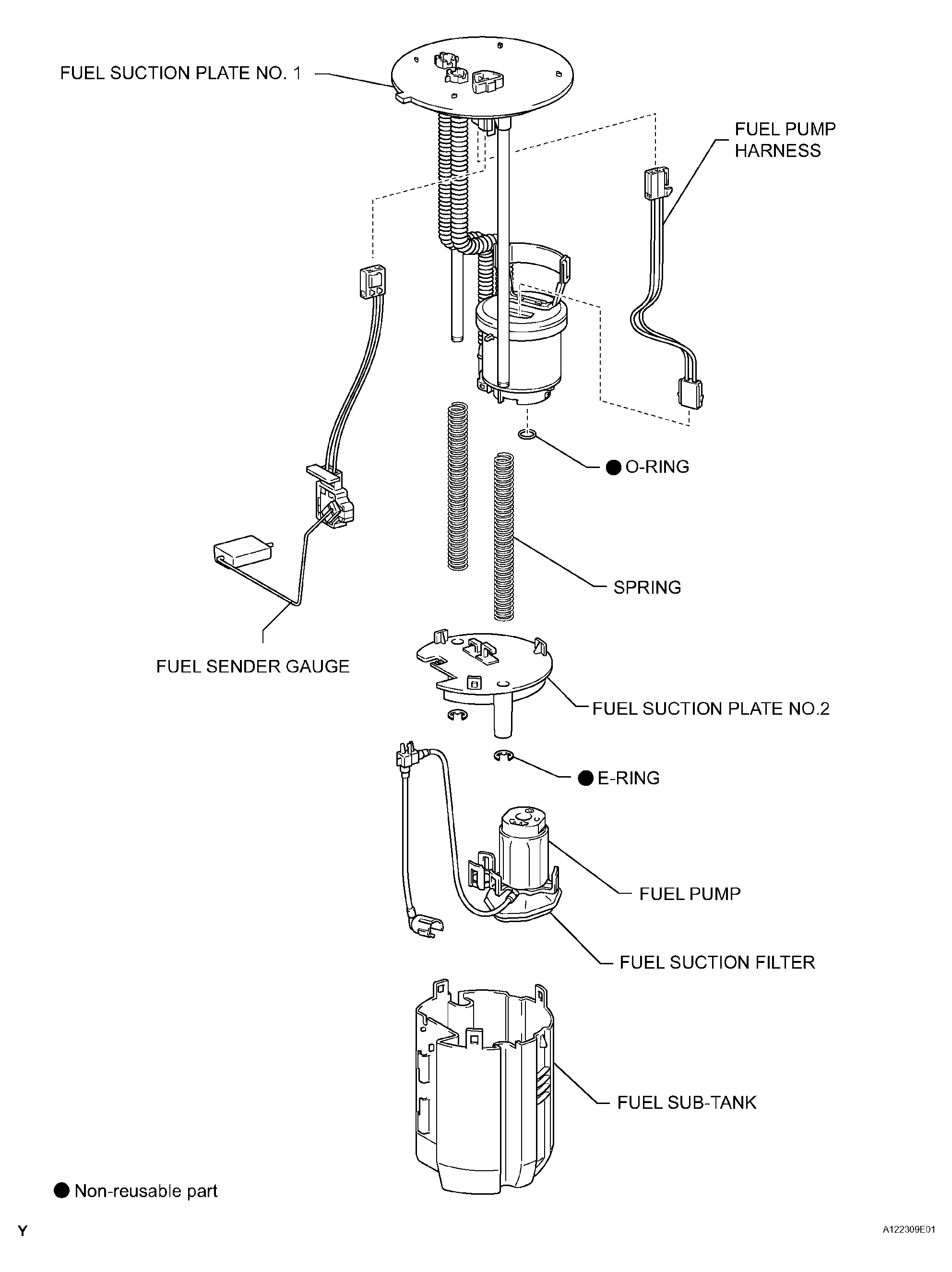

Fig 2: Identifying Fuel Pump Components
G04507458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
