Front Passenger Side Door Jam Protection Pulse Switch Circuit: Wiring Diagram

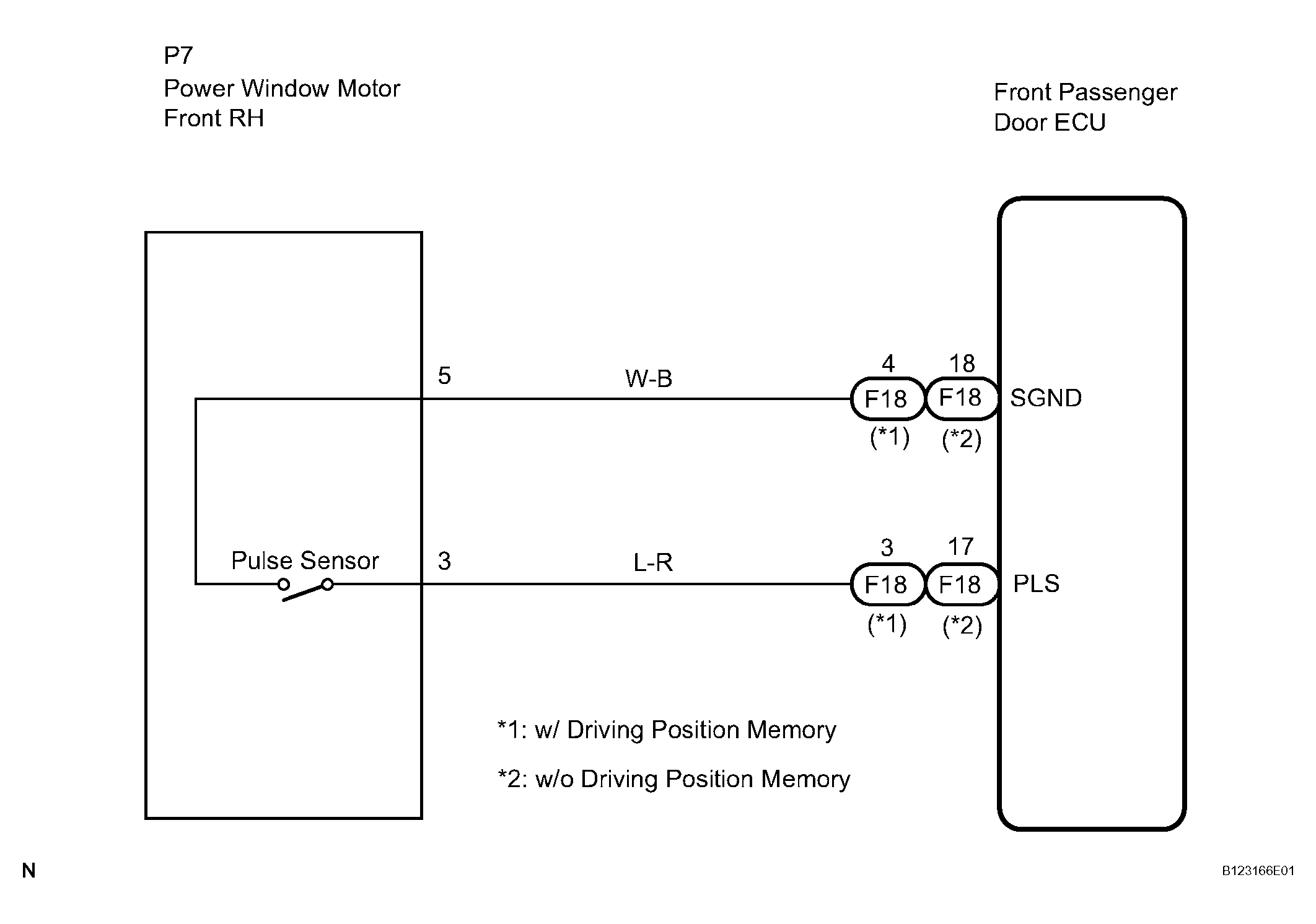

Fig 1: Front Passenger Side Door Jam Protection Pulse Switch - Wiring Diagram
G04511037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
