Engine Oil Cooler: Components

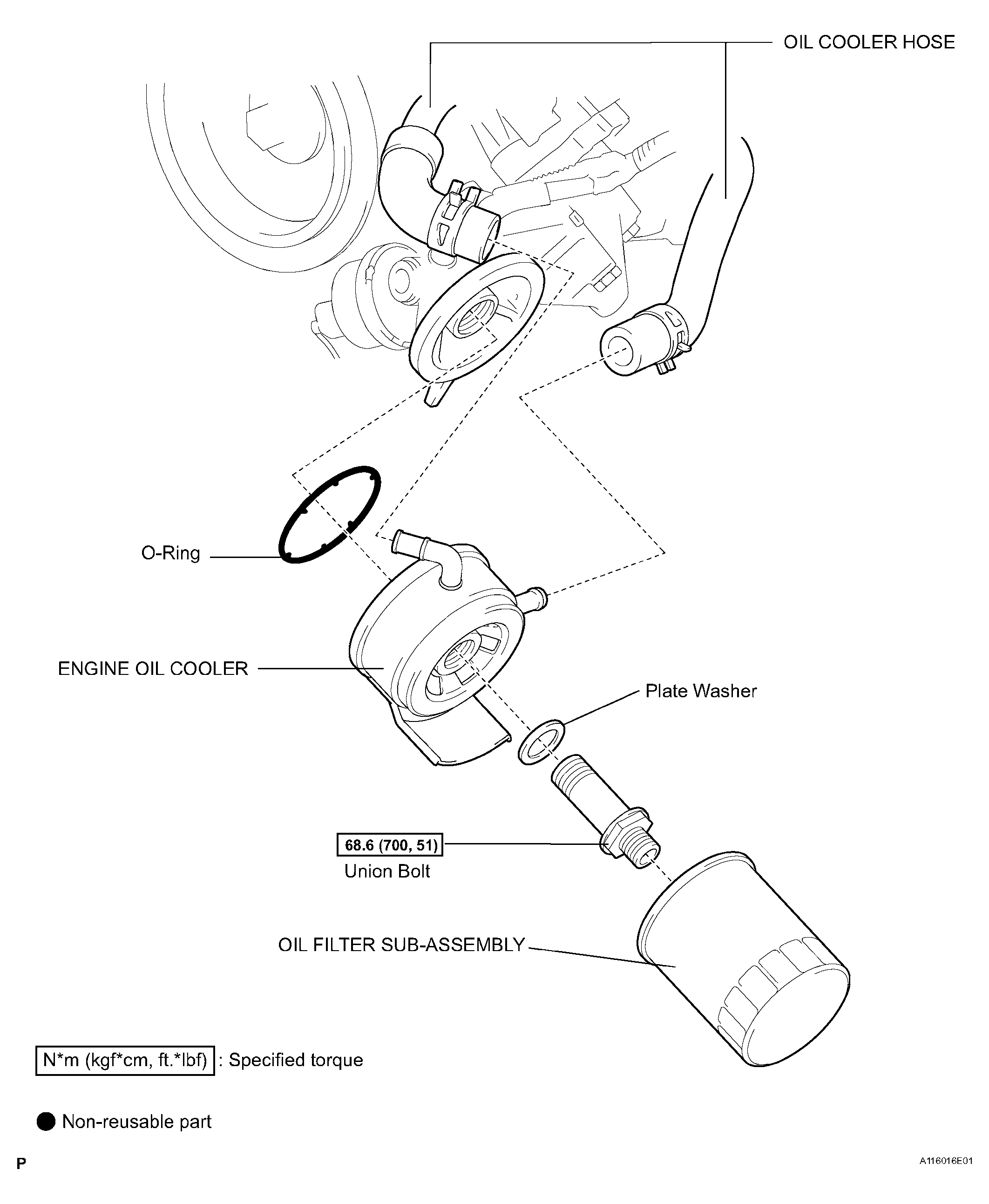

Fig 1: Engine Oil Cooler Replacement Components & Torque Specification
