Front Lower Ball Joint: Components

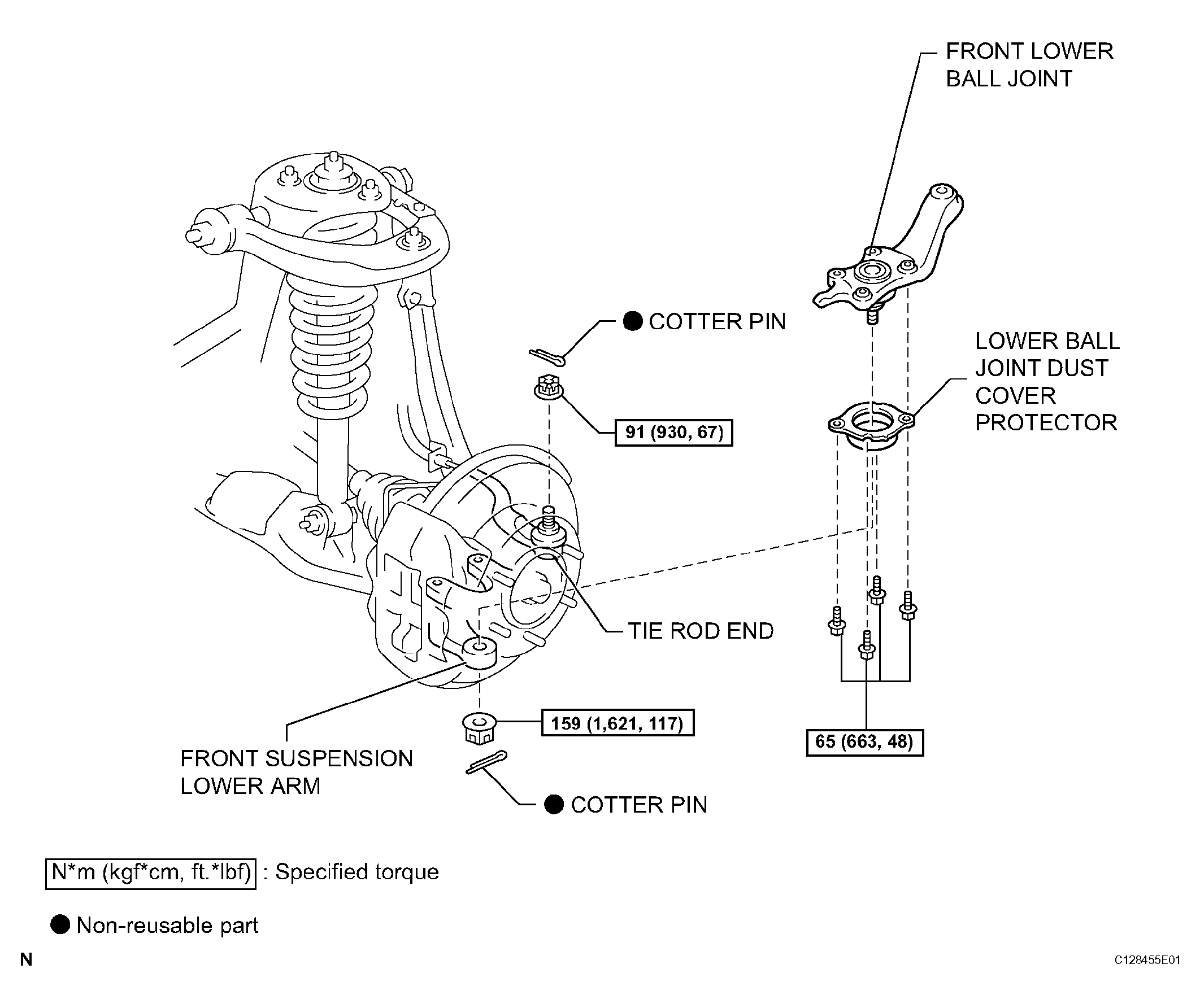

Fig 1: Identifying Front Lower Ball Joint Components & Replacements
G04509288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
