Home › Toyota › 2007 › Sequoia Limited, RWD › Repair and Diagnosis › Suspension › Wheel Alignment › Suspension System › Front Shock Absorber With Coil Spring › Components

Front Shock Absorber With Coil Spring: Components

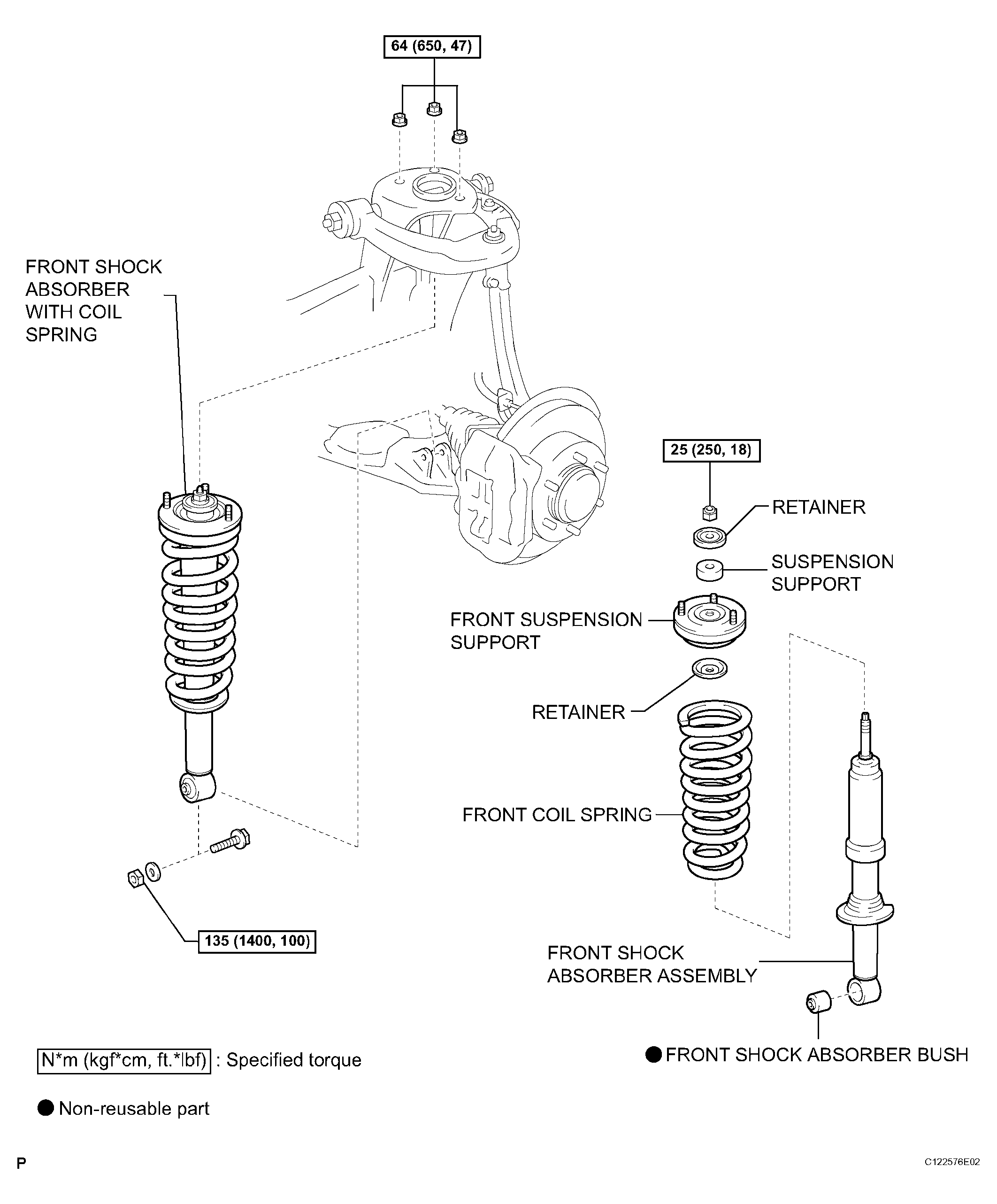

Fig 1: Identifying Front Shock Absorber With Coil Spring Components & Replacements
G04509255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
