Front Upper Ball Joint: Components

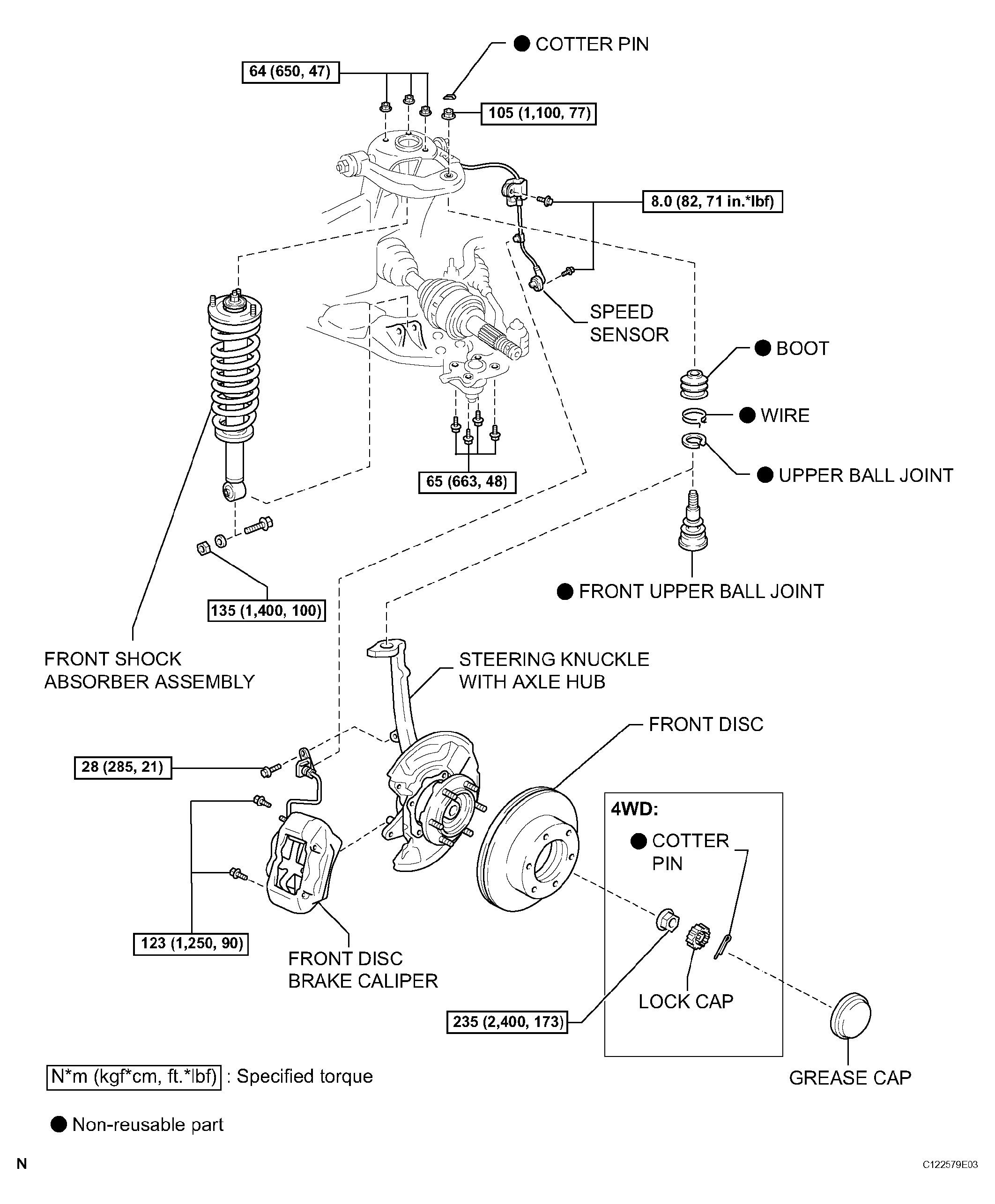

Fig 1: Identifying Front Upper Ball Joint Components & Replacements
G04509284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
