Rear Lateral Control Rod: Components

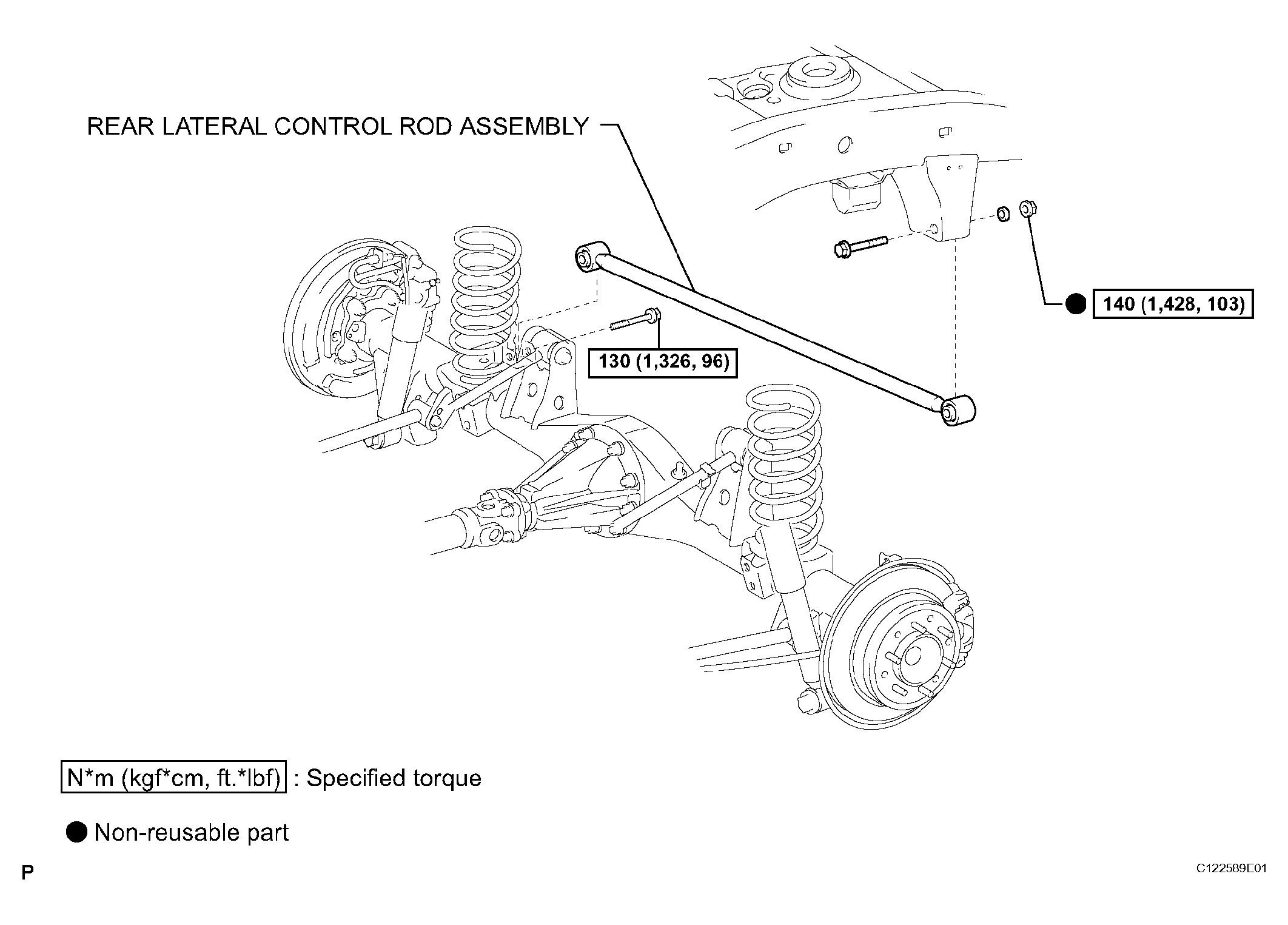

Fig 1: Identifying Rear Lateral Control Rod Components & Replacements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
