Rear Stabilizer Bar
›
Components
Rear Stabilizer Bar: Components

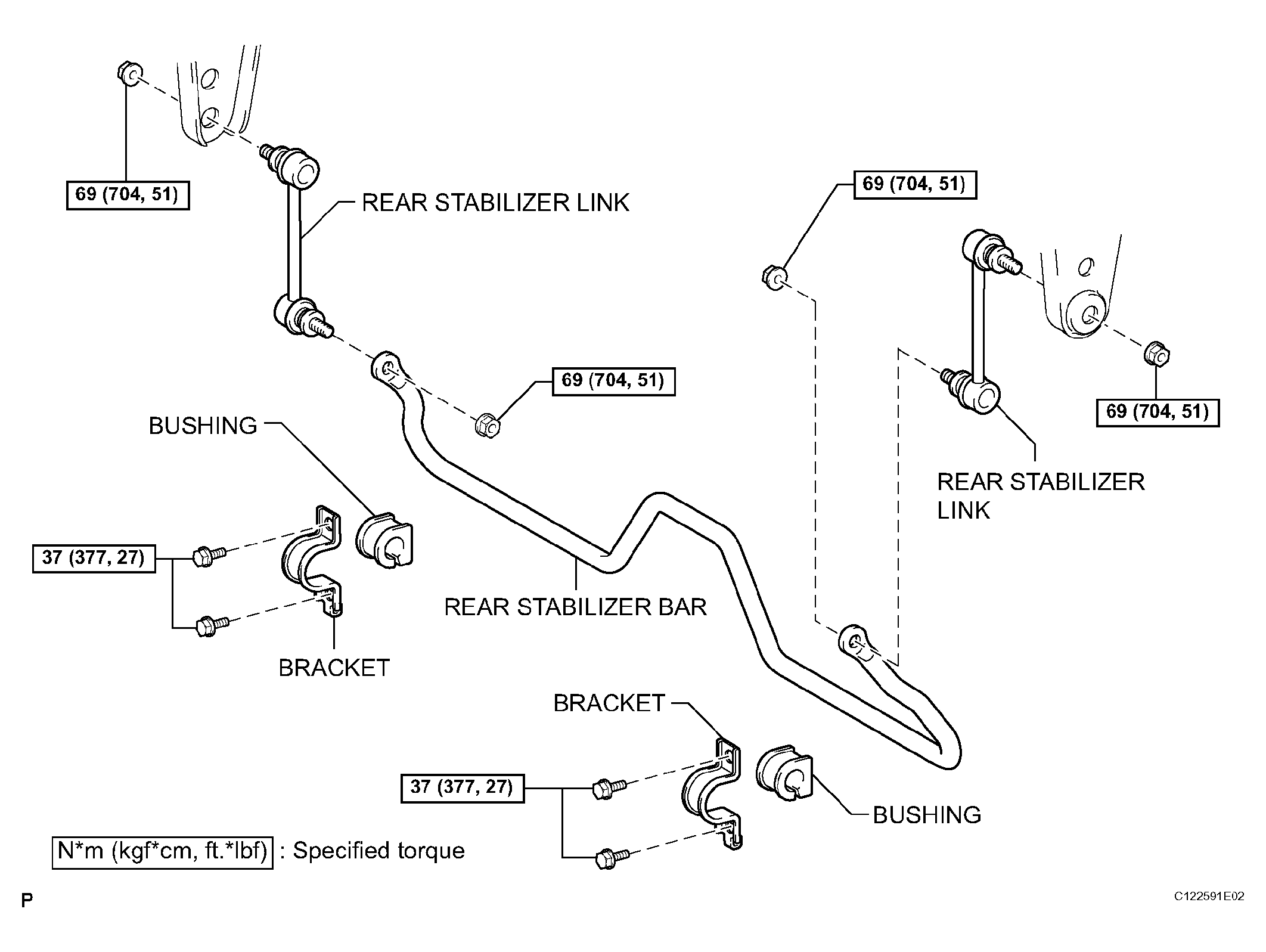

Fig 1: Identifying Rear Stabilizer Bar Components & Replacements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
