Rear Upper Control Arm: Components

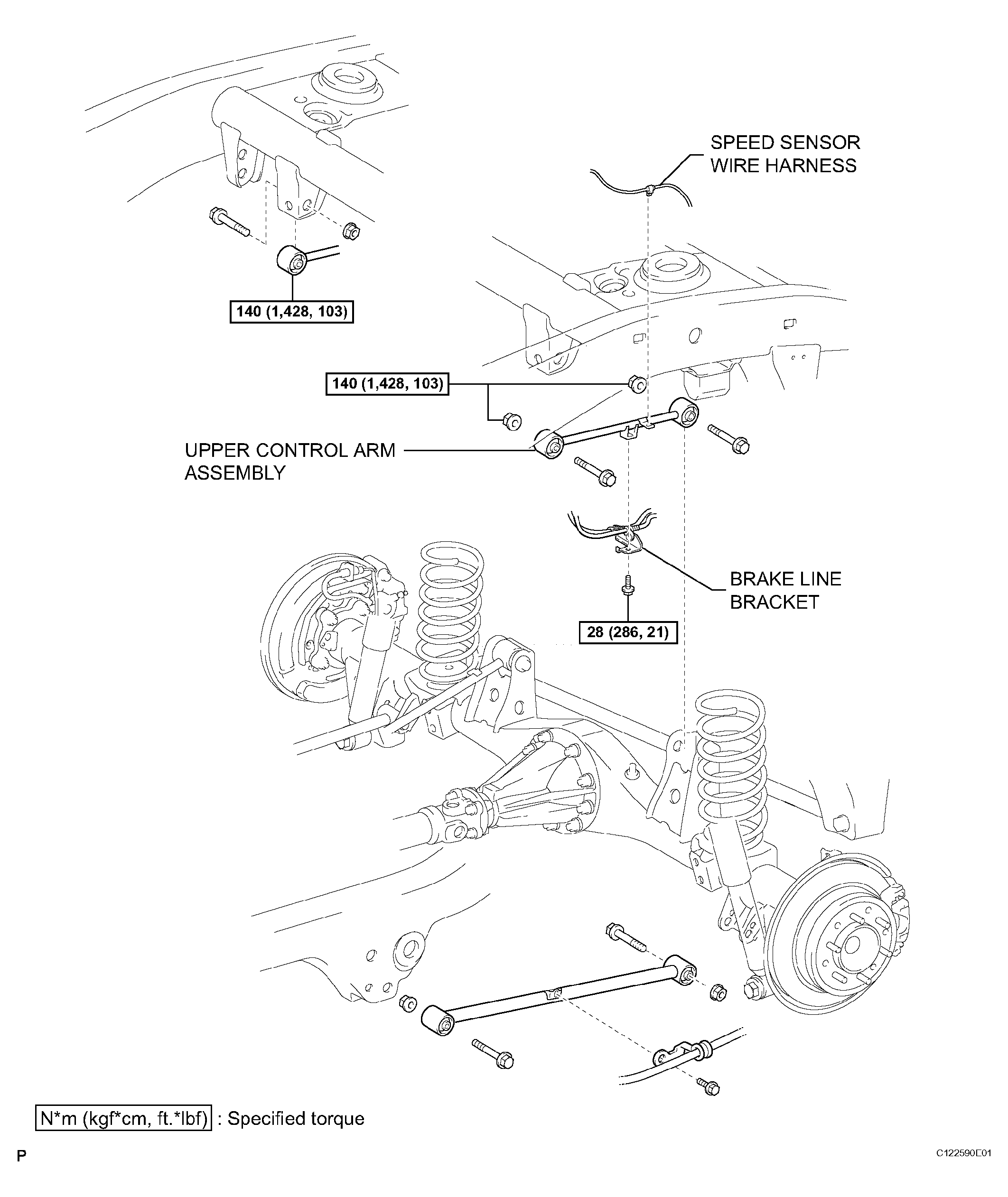

Fig 1: Identifying Rear Upper Control Arm Components & Replacements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
