Back Door Power Window Pulse Sensor Circuit: Wiring Diagram

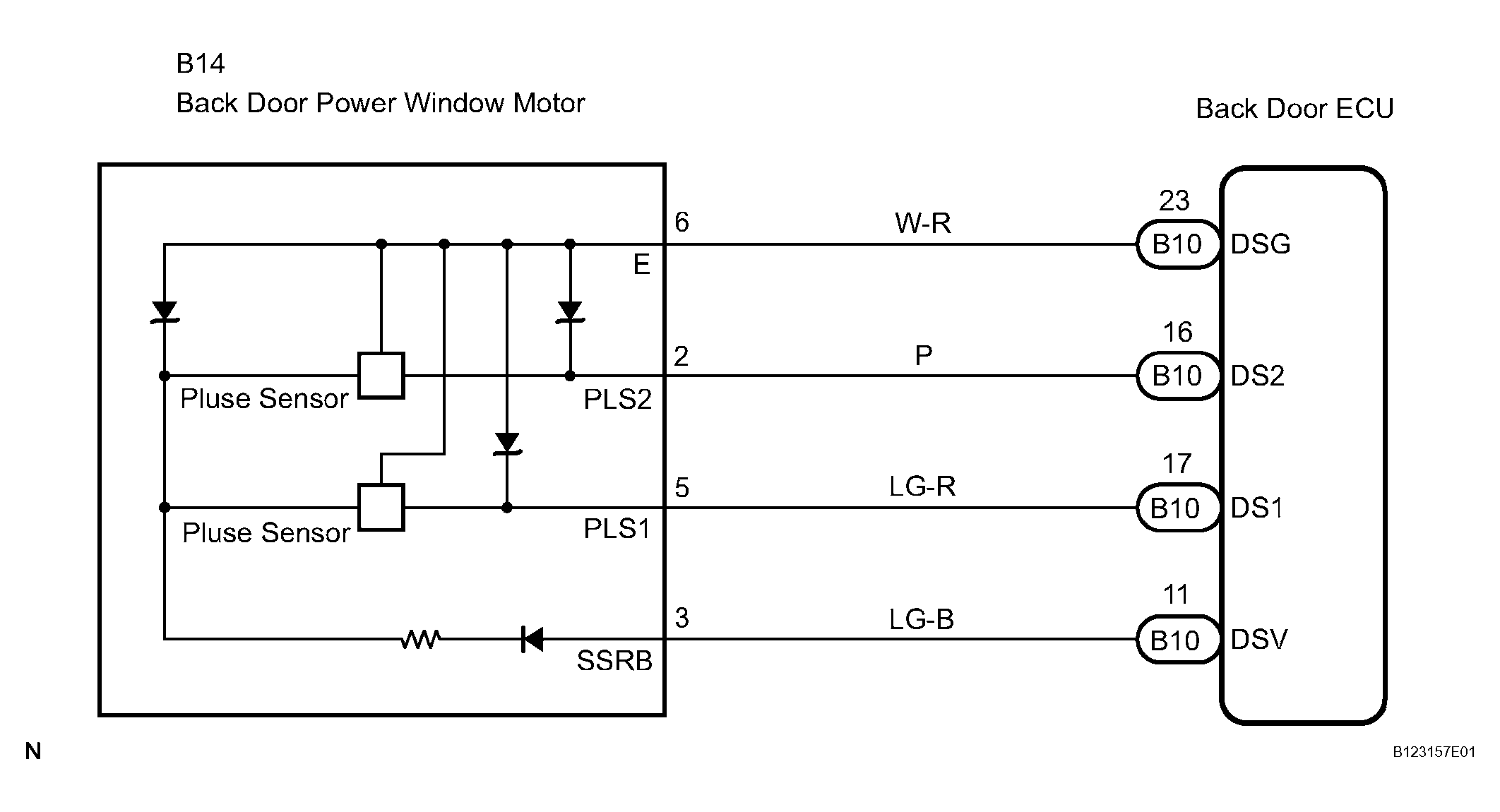

Fig 1: Back Door Power Window Pulse Sensor - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
