Back Door Power Window Switch Circuit: Wiring Diagram

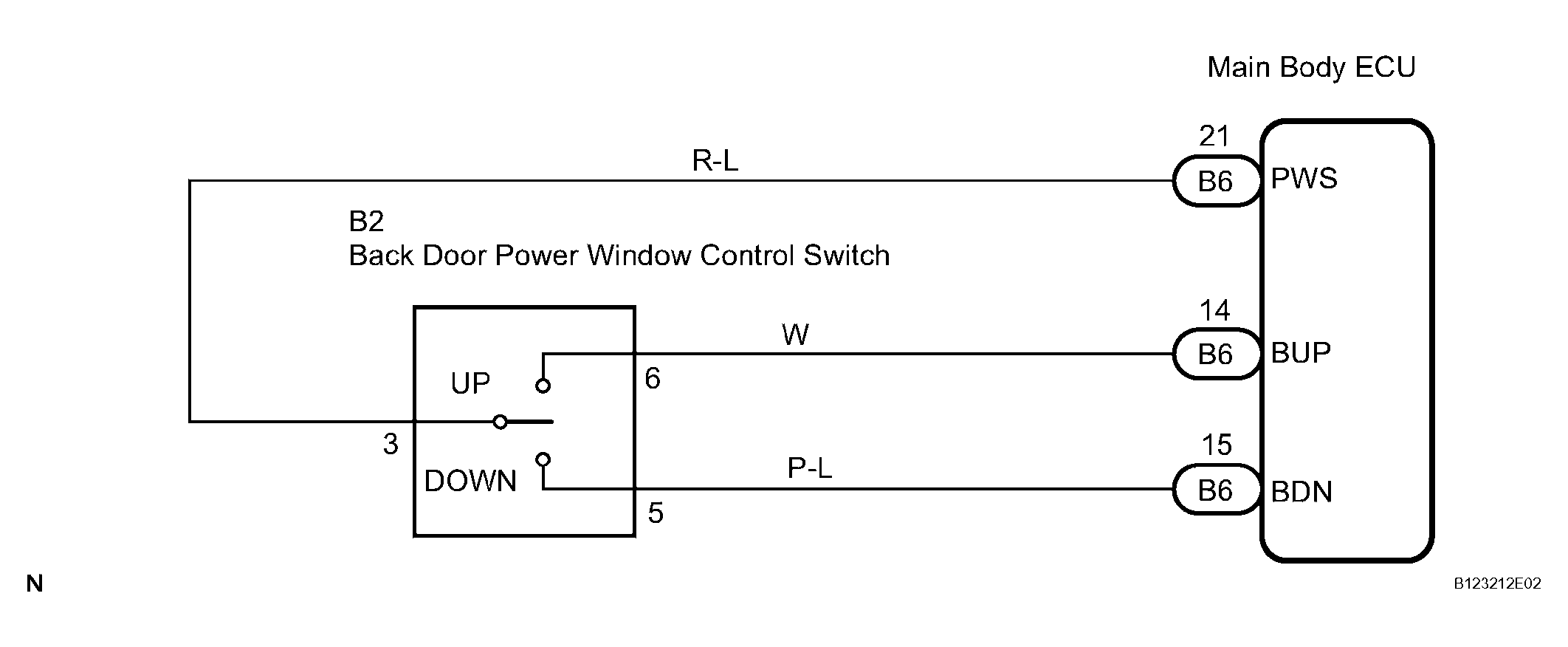

Fig 1: Back Door Power Window Switch - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
