Rear Power Window Switch Circuit: Wiring Diagram

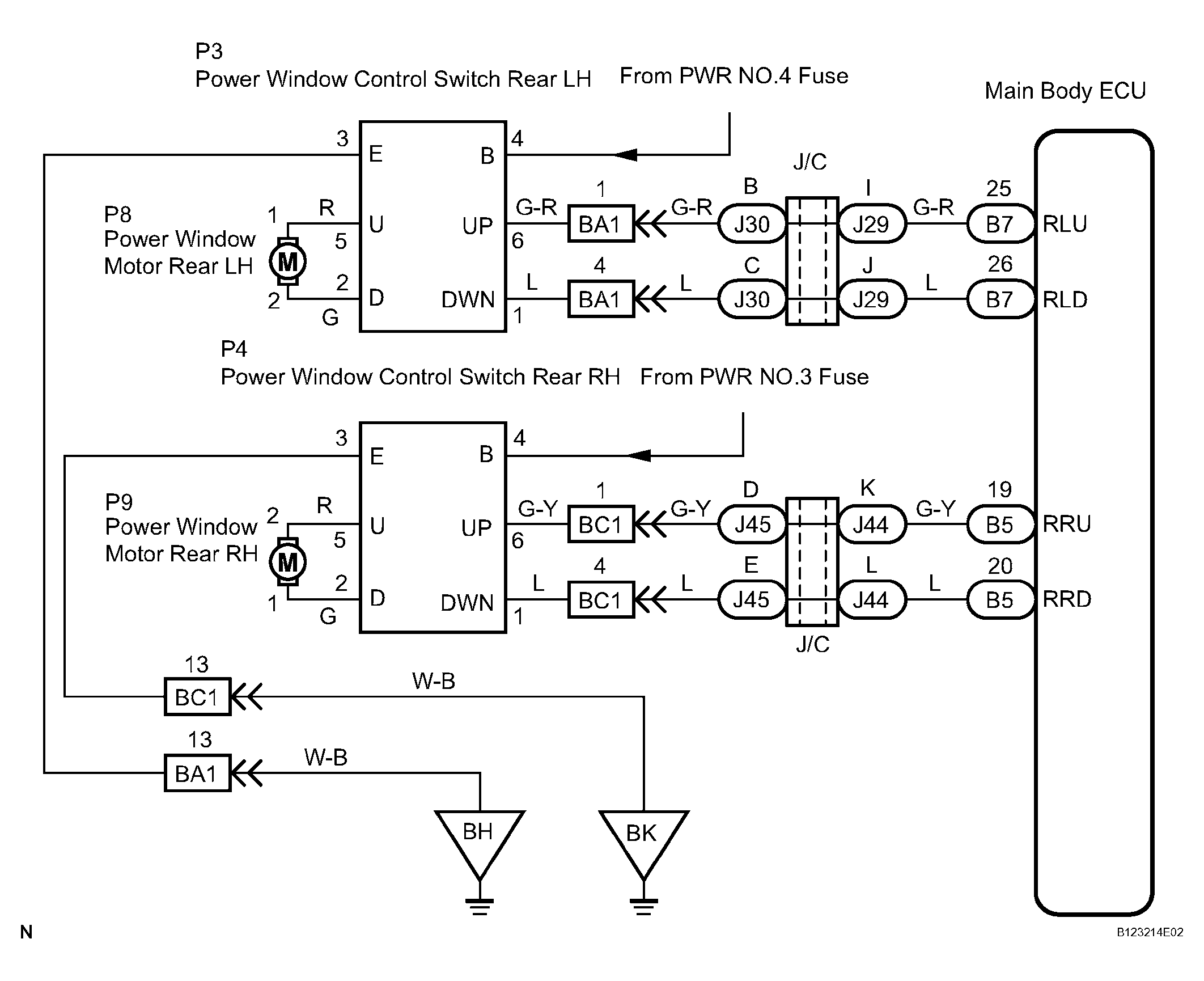

Fig 1: Rear Power Window Switch - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
