FixVault
Home
›
Toyota
›
2007
›
Sequoia SR5, 4WD
›
Repair and Diagnosis
›
Engine Mechanical
›
Auxiliary Emission Control Systems
›
Emission Control System
›
Heated Oxygen Sensor
›
Components
Heated Oxygen Sensor: Components

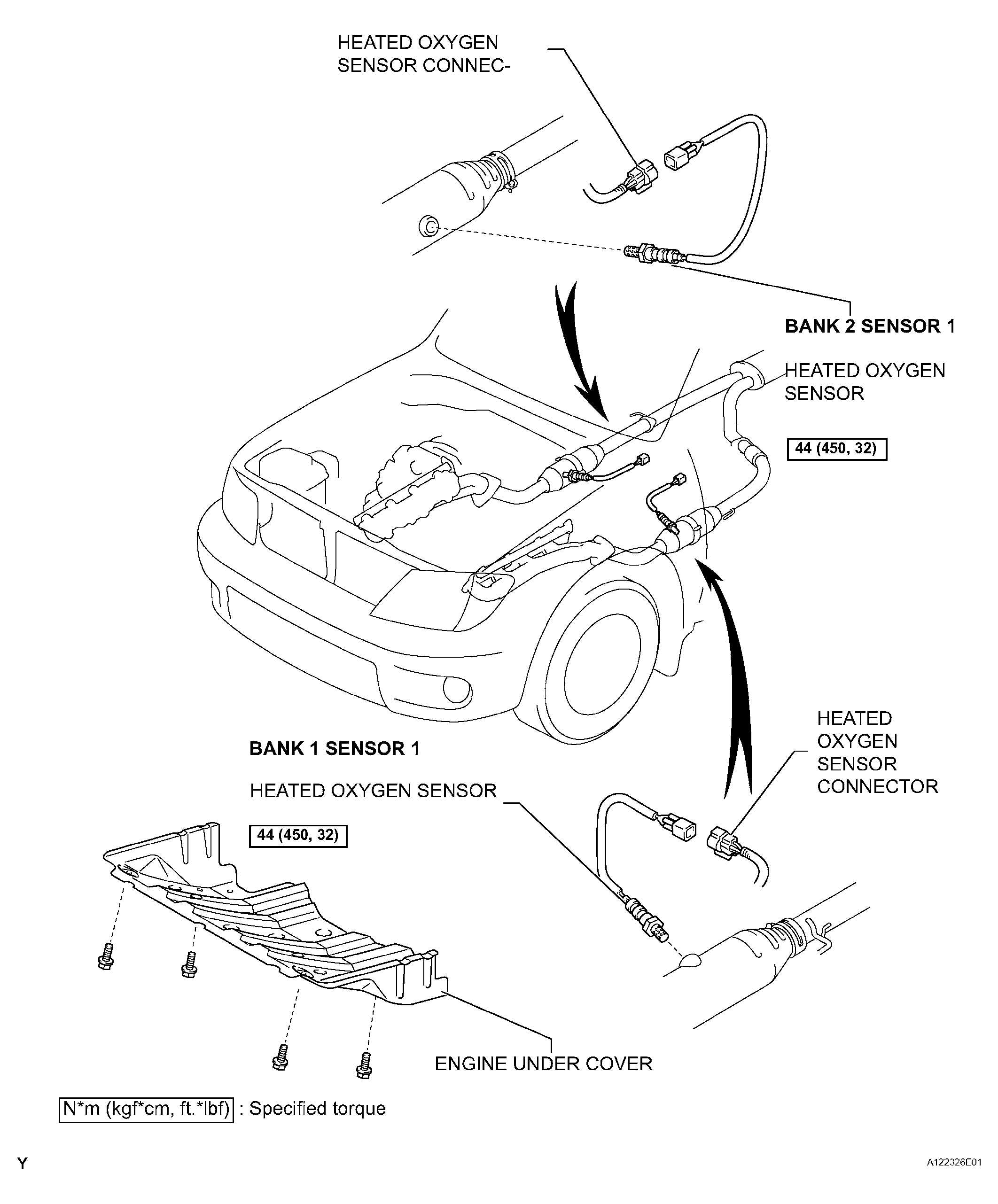

Fig 1: Identifying Heated Oxygen Sensor Components With Specified Torque
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
