Audio System with 10 Speaker: Notes

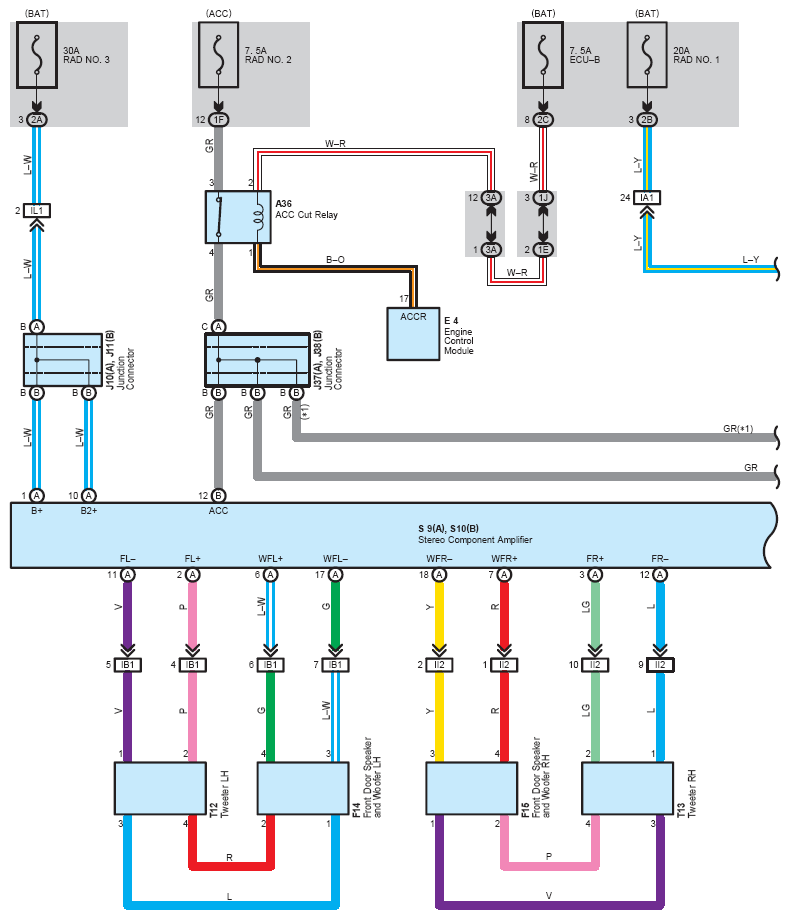

Fig 1: Audio System (With 10 Speaker) Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

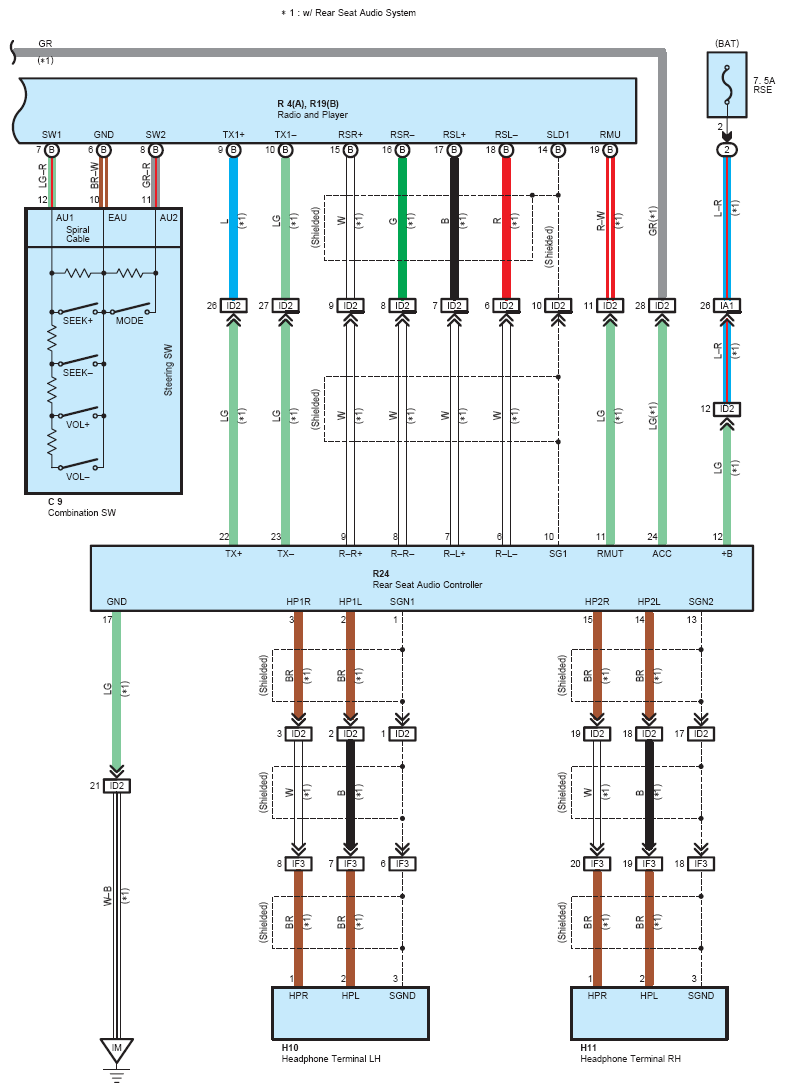

Fig 2: Audio System (With 10 Speaker) Wiring Diagram (2 Of 3)

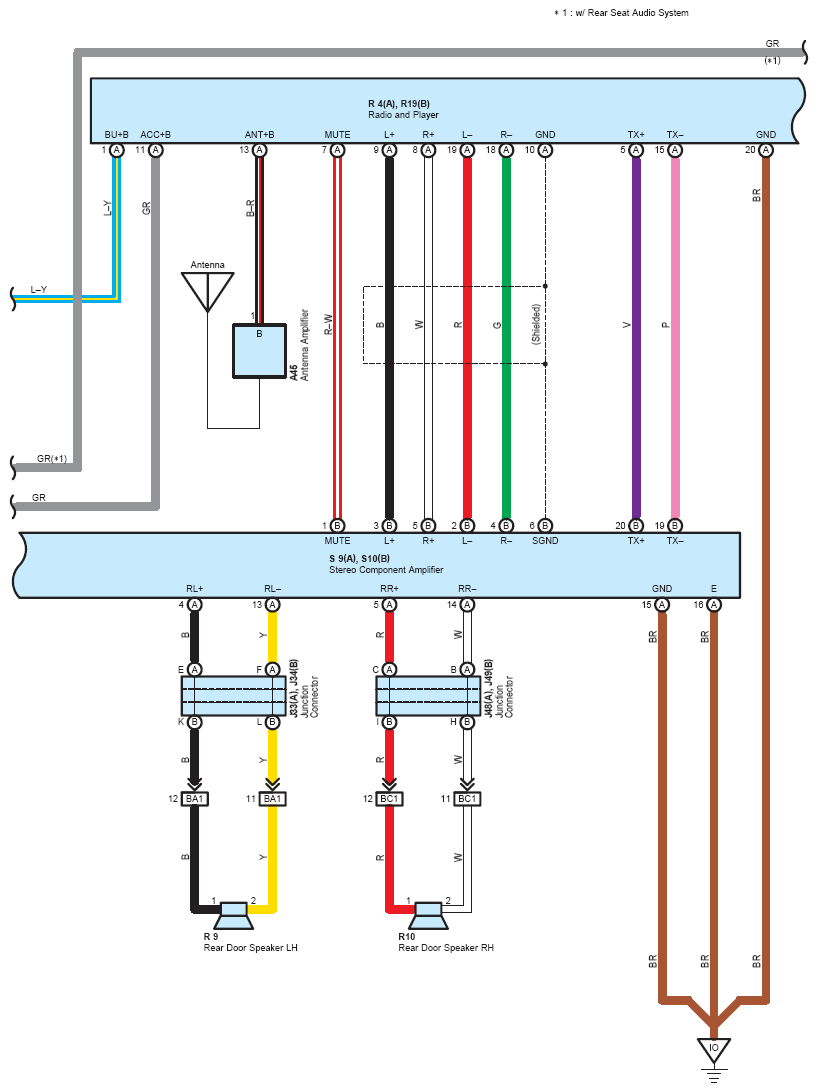

Fig 3: Audio System (With 10 Speaker) Wiring Diagram (3 Of 3)
