Navigation Antenna: Components

Fig 1: Exploded View Of Navigation Antenna Components With Torque Specifications (1 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

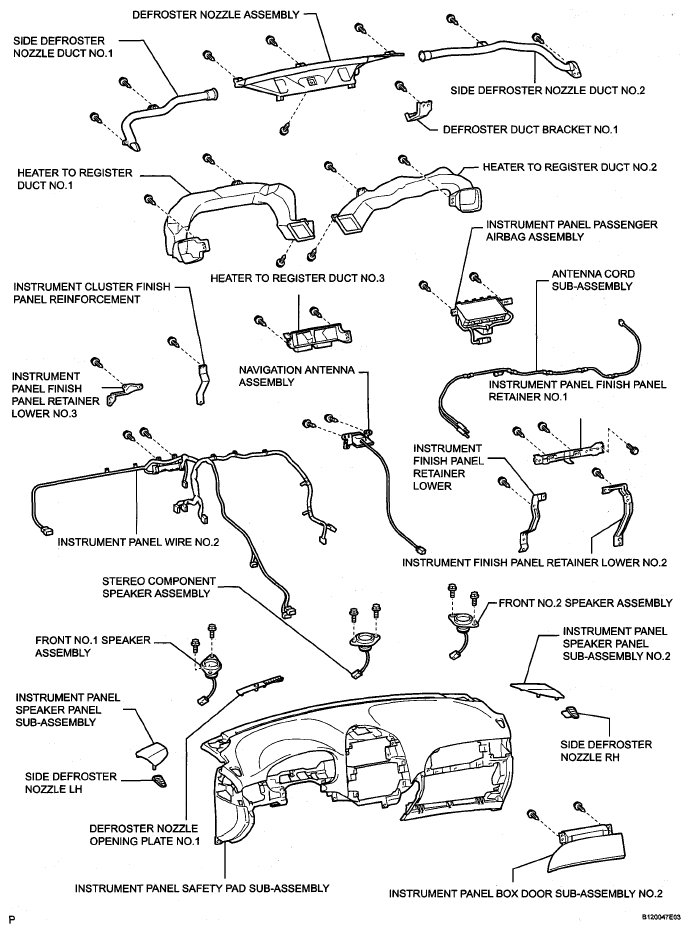

Fig 2: Exploded View Of Navigation Antenna Components (2 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
