Automatic Transaxle Assembly: Removal

HINT:

(See REMOVAL )

HINT:

(See REMOVAL )

HINT:

(See REMOVAL )

1. Remove the bolt and the transmission control cable clamp.
   Fig 1: Locating Transmission Control Cable Clamp Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the wire harnesses from the clamp.
2. Remove the 3 bolts and 2 clamps.
   Fig 2: Locating Wire Harness Clamps Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the bolt and disconnect the wire harness.
   Fig 3: Locating Wire Harness Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector (1).
2. Remove the nut (2) and disconnect the starter wire.
3. Remove the 2 bolts (3) and starter assembly.
   Fig 4: Locating Starter Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the transmission wire connector.
2. Disconnect the park/neutral position switch connector.
3. Disconnect the 2 speed sensor connectors.

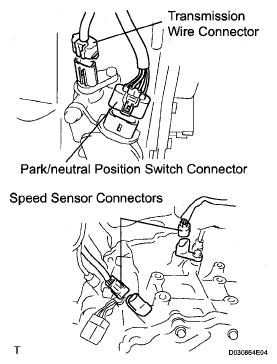

   Fig 5: Identifying Transmission Wire Connector And Speed Sensor Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the bolt and automatic transmission oil cooler tube clamp.
2. Remove the 2 bolts and transmission control cable bracket No.1.
   Fig 6: Locating Transmission Control Cable Bracket Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the ATF level gauge.
2. Disconnect the wire harnesses 2 clamps from the oil filler tube.
3. Remove the 2 bolts and oil filler tube.
4. Remove the O-ring from the oil filler tube.
   Fig 7: Locating Oil Filler Tube Clamp Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST and a wrench, disconnect the oil cooler inlet tube No.1.
   Fig 8: Removing Oil Cooler Inlet Tube

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   SST 09023-12701

1. Using SST and a wrench, disconnect the oil cooler outlet tube No.1.

   SST 09023-12701

1. Remove the 3 bolts and engine mounting bracket front.
   Fig 9: Locating Engine Mounting Bracket Bolts (Front)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 5 bolts and transfer stiffener plate RH.
   Fig 10: Locating Transfer Stiffener Plate RH Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 bolts and flywheel housing under cover.
   Fig 11: Locating Flywheel Housing Under Cover Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the crankshaft to gain access and remove the 6 bolts while holding the crankshaft pulley bolt with a wrench.

   HINT:

   There will be one green colored bolt.

   Fig 12: Locating Torque Converter Clutch Mounting Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 10 bolts.
4. Separate and remove the automatic transaxle w/ transfer.
   Fig 13: Locating Automatic Transaxle Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

(See REMOVAL )

HINT:

(See INSPECTION )
