Terminals Of ECM
- ECM
HINT:
Each ECM terminal's standard voltage is shown in the table below.
In the table, first follow the information under "Condition". Look under "Symbols (Terminal No.)" for the terminals to inspected. The standard voltage between the terminals is shown under "Specific Condition".

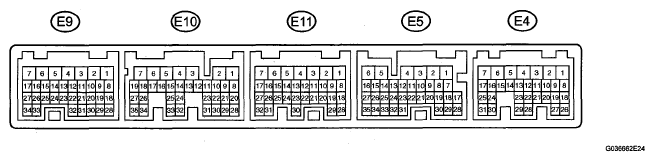

Use the illustration above as a reference for the ECM terminals.
ECM CONNECTOR TERMINALS VOLTAGE SPECIFICATIONSymbols (Terminals No.) Wiring Color Terminal Description Condition Specified Condition L (E5-9)-E1 (E11-1) L-BR L shift position switch signal IG switch ON and shift lever L position 11 to 14 V IG switch ON and shift lever other than L position Below 1 V 2 (E5-10)-E1 (E11-1) Y-G - BR 2 shift position switch signal IG switch ON and shift lever 2 and L position 11 to 14 V IG switch ON and shift lever other than 2 and L position Below 1 V D (E5-21)-E1 (E11-1) L-W - BR D shift position switch signal IG switch ON and shift lever D and 4 position 11 to 14 V IG switch ON and shift lever other than D and 4 position Below 1 V R (E5-11)-E1 (E11-1) R-B - BR R shift position switch signal IG switch ON and shift lever R position 11 to 14 V IG switch ON and shift lever other than R position Below 1 V SPD (E5-8)-E1 (E11-1) V-W - BR Speed signal Vehicle speed 20 km/h (12 mph) Pulse generation (See hwaveform 8) STP (E4-15)-E1 (E11-1) G-W - BR Stop light switch signal Brake pedal is depressed 7.5 to 14 V Brake pedal is released Below 1.5 V 3 (E5-19)-E1 (E11-1) G - BR 3 shift position switch signal IG switch ON and shift lever 3 position 11 to 14 V IG switch ON and shift lever other than 3 position Below 1 V 4 (E5-20)-E1 (E11-1) B-W - BR 4 shift position switch signal IG switch ON and shift lever 4 position 11 to 14 V IG switch ON and shift lever other than 4 position Below 1 V NSW (STAR) (E10-8) - E1 (E11-1) B-Y - BR Park neutral switch signal IG switch ON and shift lever P and N position Below 1 V IG switch ON and shift lever other than P and N position 11 to 14 V P (E5-23)-E1 (E11-1) L-Y - BR Park position switch signal IG switch ON and shift lever P position 11 to 14 V IG switch ON and shift lever other then P position Below 1 V N (E5-22)-E1 (E11-1) Y-R - BR Neutral position switch signal IG switch ON and shift lever N position 11 to 14 V IG switch ON and shift lever other then N position Below 1 V DSL (E10-11)-E1 (E11-1) Y-G - BR DSL solenoid signal Vehicle speed 65 km/h (40 mph), lock-up (ON to OFF) Pulse generation (See bwaveform 2) SR (E10-9)-E1 (E11-1) L-B - BR SR solenoid signal IG switch ON Below 1 V 3rd, 4th or 5th gear 11 to 14 V 1st or 2nd gear Below 1 V S4 (E10-10)-E1 (E11-1) L-W - BR S4 solenoid signal IG switch ON Below 1 V 5th gear 11 to 14 V Except 5th gear Below 1 V SL3+ (E10-17)-SL3- (E10-16) G-B - G-R SL3 solenoid signal Engine idle speed Pulse generation (See cwaveform 3) SL2+ (E10-15) - SL2- (E10-14) L-Y - L-R SL2 solenoid signal Engine idle speed Pulse generation (See dwaveform 4) SL1+ (E10-19)-SL1- (E10-18) R-B - B-W SL1 solenoid signal Engine idle speed Pulse generation (See ewaveform 5) NC+ (E10-34)-NC- (E10-26) R-W-G Speed sensor (NC) signal Vehicle speed 30 km/h (19 mph): (3rd gear)
Engine speed 1,400 rpmPulse generation (See fwaveform 6) NT+ (E10-35)- NT- (E10-27) W-R-W Speed sensor (NT) signal Vehicle speed 20 km/h (12mph) Pulse generation (See gwaveform 7) SLT+ (E10-13)- SLT- (E10-12) Y-R - Y-B SLT solenoid signal Engine idle speed Pulse generation (See awaveform 1) THO1 (E10-24)-E2 (E9-28) G-Y - BR ATF temperature sensor signal ATF temperature: 115°C (239°F) or more Below 1.5 V - Waveform 1
Reference:
WAVEFORM REFERENCE (WAVEFORM 1)Terminal SLT+ - SLT- Tool setting 5 V/DIV, 1 ms/DIV Vehicle condition Engine idle speed - Waveform 2
Reference:
WAVEFORM REFERENCE (WAVEFORM 2)Terminal DSL - E1 Tool setting 10 V/DIV, 100ms/DIV Vehicle condition Vehicle speed 65 km/h (40 mph), lock-up (ON to OFF) - Waveform 3
Reference:
WAVEFORM REFERENCE (WAVEFORM 3)Terminal SL3+ - SL3- Tool setting 5 V/DIV, 1 ms/DIV Vehicle condition Engine idle speed - Waveform 4
Reference:
WAVEFORM REFERENCE (WAVEFORM 4)Terminal SL2+ - SL2- Tool setting 5 V/DIV, 1 ms/DIV Vehicle condition Engine idle speed - Waveform 5
Reference:
WAVEFORM REFERENCE (WAVEFORM 5)Terminal SL1+-SL1- Tool setting 5 V/DIV, 1 ms/DIV Vehicle condition Engine idle speed - Waveform 6
Reference:
WAVEFORM REFERENCE (WAVEFORM 6)Terminal NC+-NC- Tool setting 1 V/DIV, 1 ms/DIV Vehicle condition Vehicle speed 30 km/h (19 mph): (3rd gear) Engine speed 1.400 rpm - Waveform 7
Reference:
WAVEFORM REFERENCE (WAVEFORM 7)Terminal NT+ - NT- Tool setting 5 V/DIV, 0.5ms/DIV Vehicle condition Vehicle speed 20 km/h (12 mph) - Waveform 8
Reference:
WAVEFORM REFERENCE (WAVEFORM 8)Terminal SPD-E1 Tool setting 5 V/DIV, 20ms/DIV Vehicle condition Vehicle speed 20 km/h (12 mph)
