Transmission Control Cable Assembly: Installation

1. Pull in the control cable to the body.
   Fig 1: Installing Control Cable End To Control Shaft Lever

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the cable end, as shown in the illustration.
   Fig 2: Installing Cable End

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. When installing the transmission control cable assembly on the shift lever plate, place the projection of the shift cable downward to fit in the groove of the shift lever plate (FIG.2) Confirm that the spring in the shift cable outer has moved to the position (FIG.3) shown in the illustration.

   Confirm that the shift cable is installed on the shift lever plate properly.

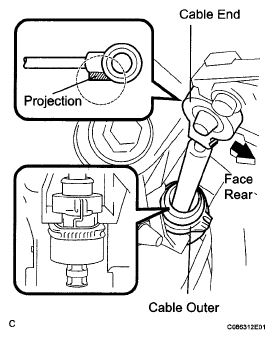

   Fig 3: Identifying Projection Of Shift Cable

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • To prevent torsion of the inner cable, the projection on the eye end should face rear.
   • Push the cable end to the bottom of the pin.
4. Install the transmission control cable assembly and 2 nuts.

   Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

   Fig 4: Locating Transmission Control Cable Assembly Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the transmission control cable assembly to the transmission control cable bracket No.2.
   Fig 5: Identifying Transmission Control Cable Bracket No. 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Temporarily install the transmission control cable assembly to the control shaft lever with the nut.
   Fig 6: Identifying Control Cable Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install the transmission control cable assembly and clip to the bracket.
   Fig 7: Locating Control Shaft Lever Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

(See INSTALLATION )

HINT:

(See ADJUSTMENT )

HINT:

(See ADJUSTMENT )
