Cooling Fan: Notes

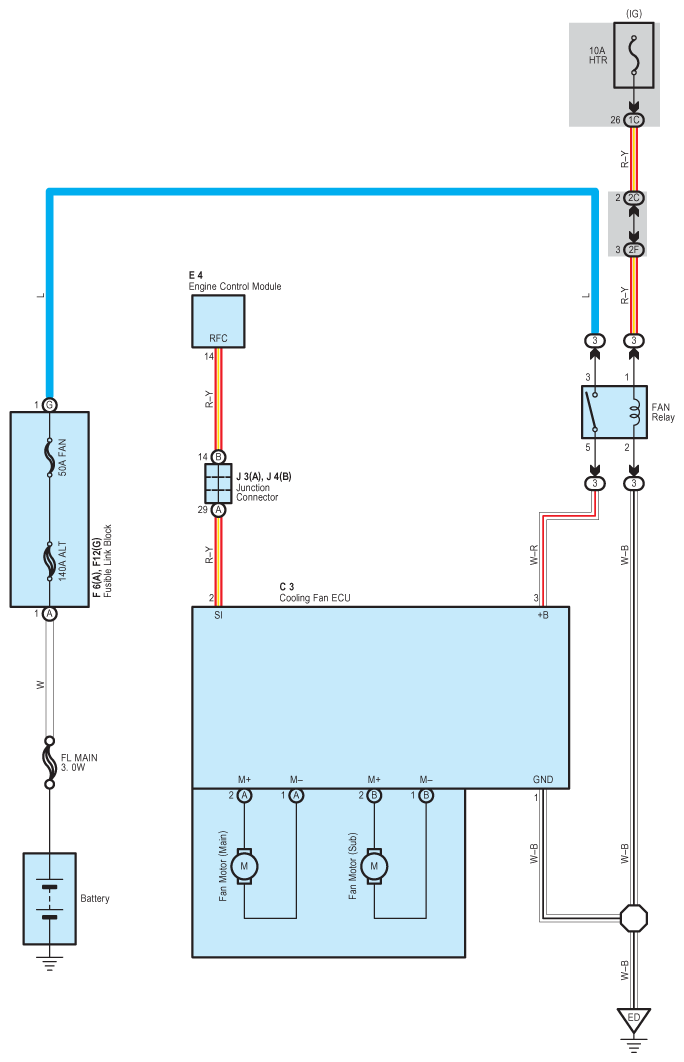

Fig 1: Cooling Fan System Wiring Diagram

G08842089

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
