Sienna LE, FWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Power Back Door
›
Notes
Power Back Door: Notes

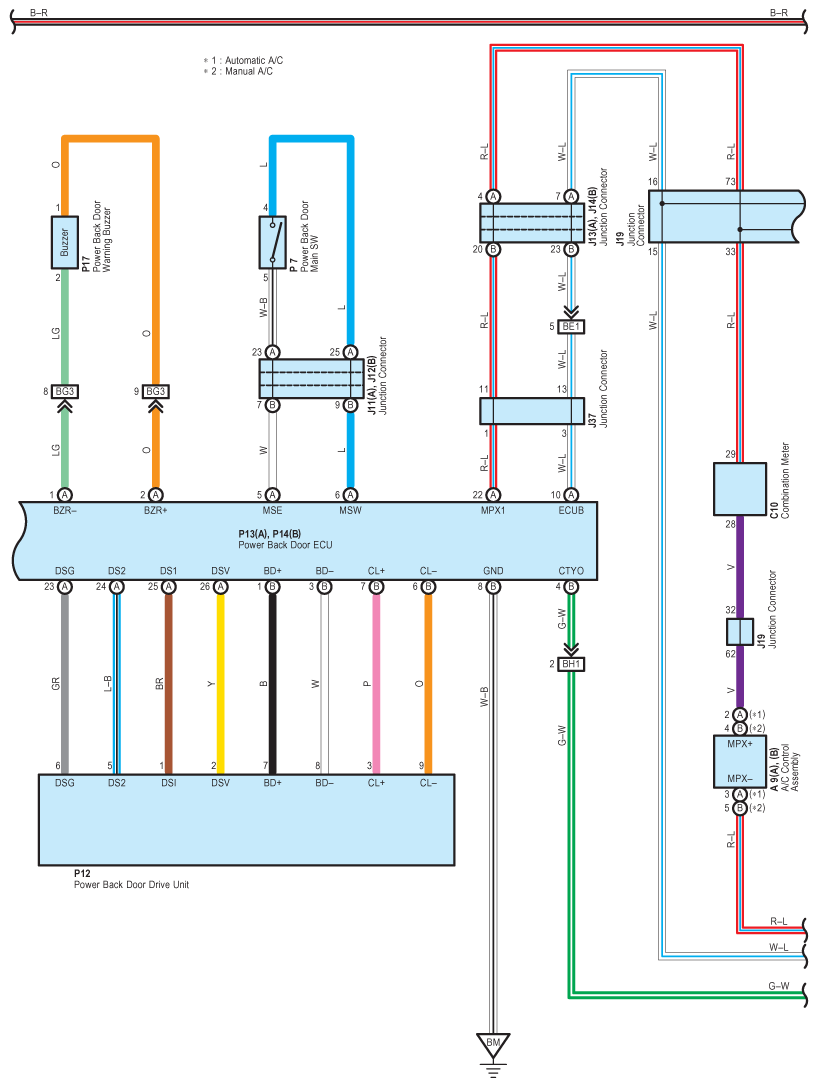

Fig 1: Power Back Door System Wiring Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

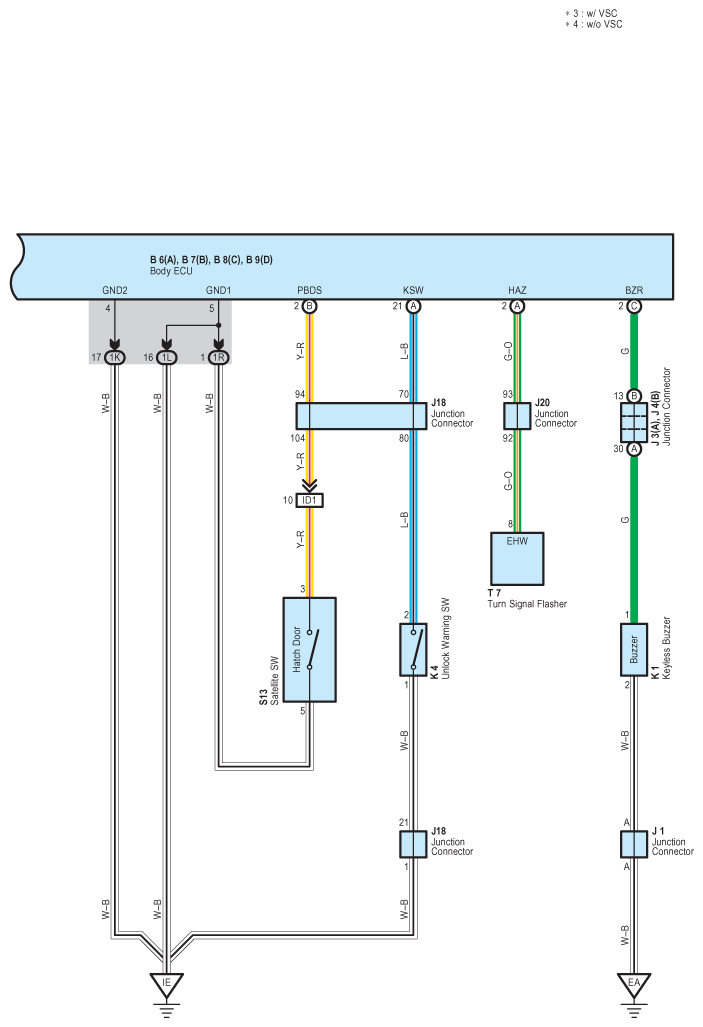

Fig 2: Power Back Door System Wiring Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

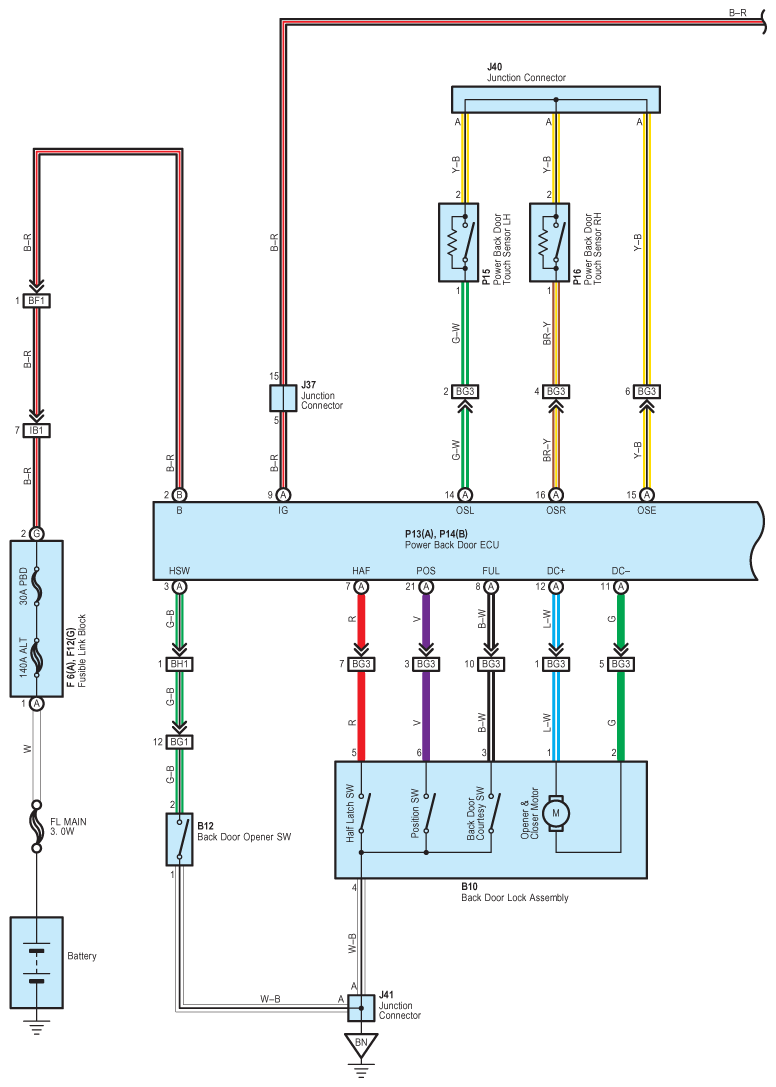

Fig 3: Power Back Door System Wiring Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

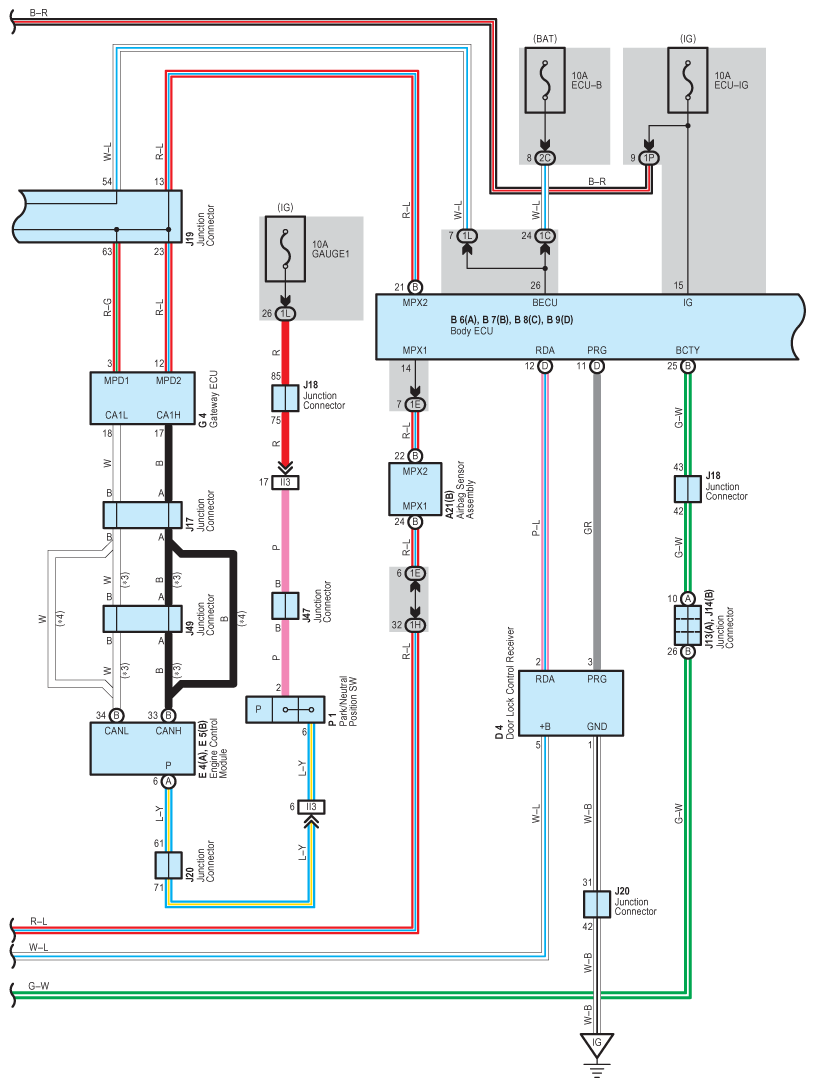

Fig 4: Power Back Door System Wiring Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
