Power Slide Door (LH): Notes

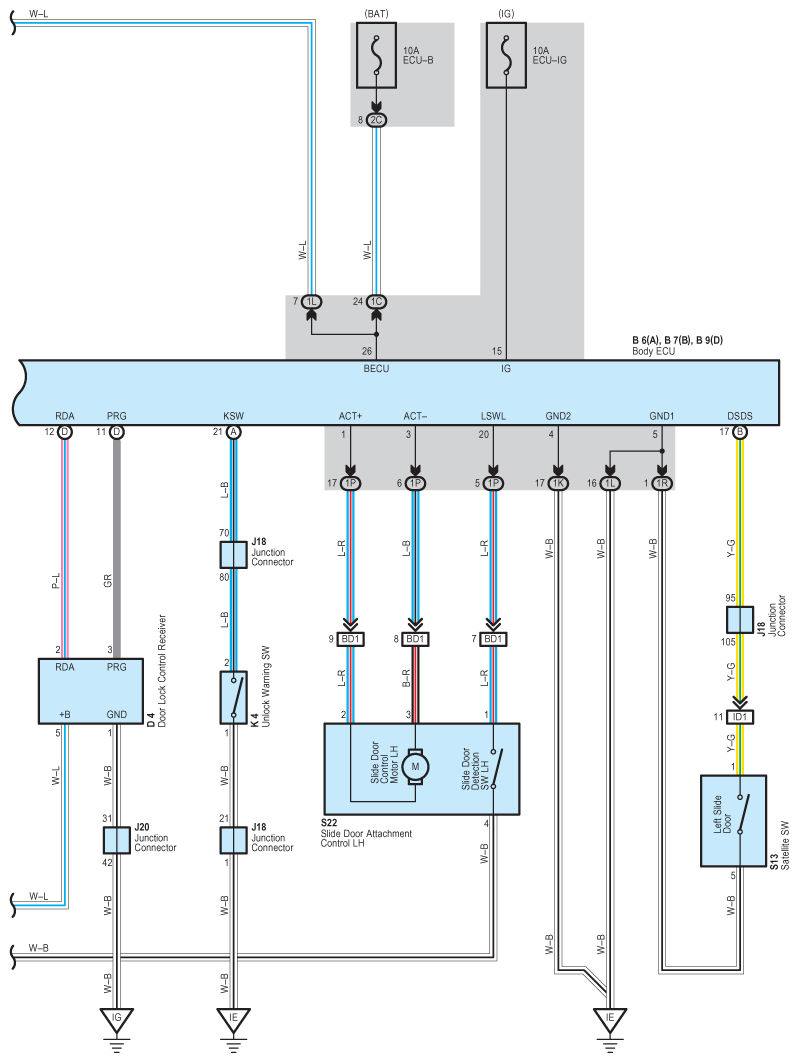

Fig 1: LH Power Slide Door System Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

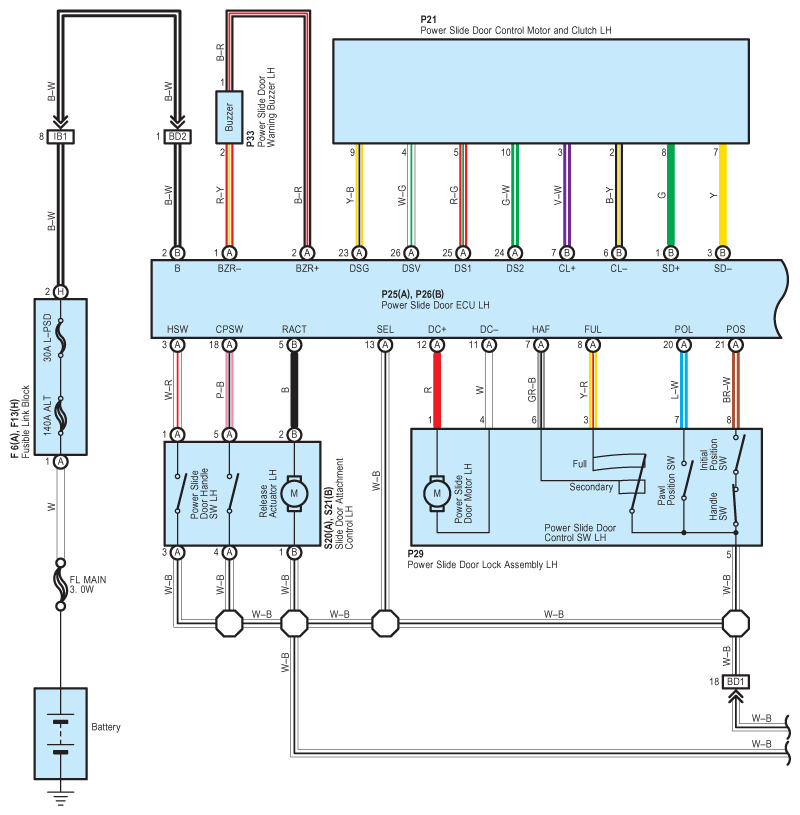

Fig 2: LH Power Slide Door System Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

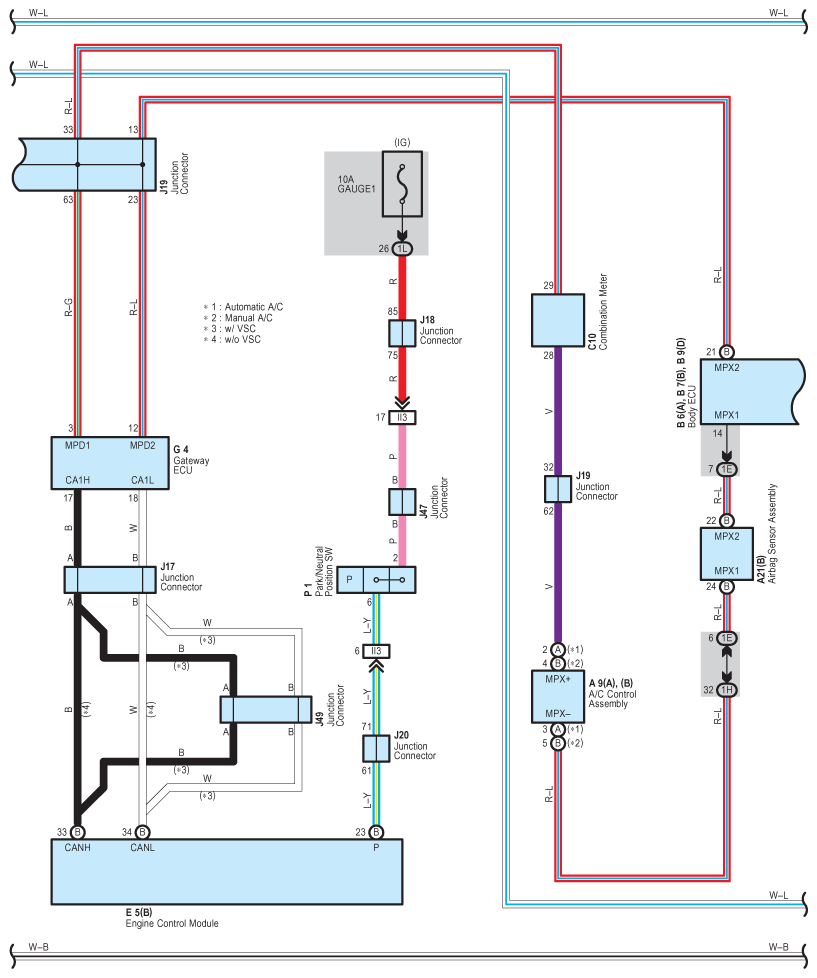

Fig 3: LH Power Slide Door System Wiring Diagram (3 Of 4)

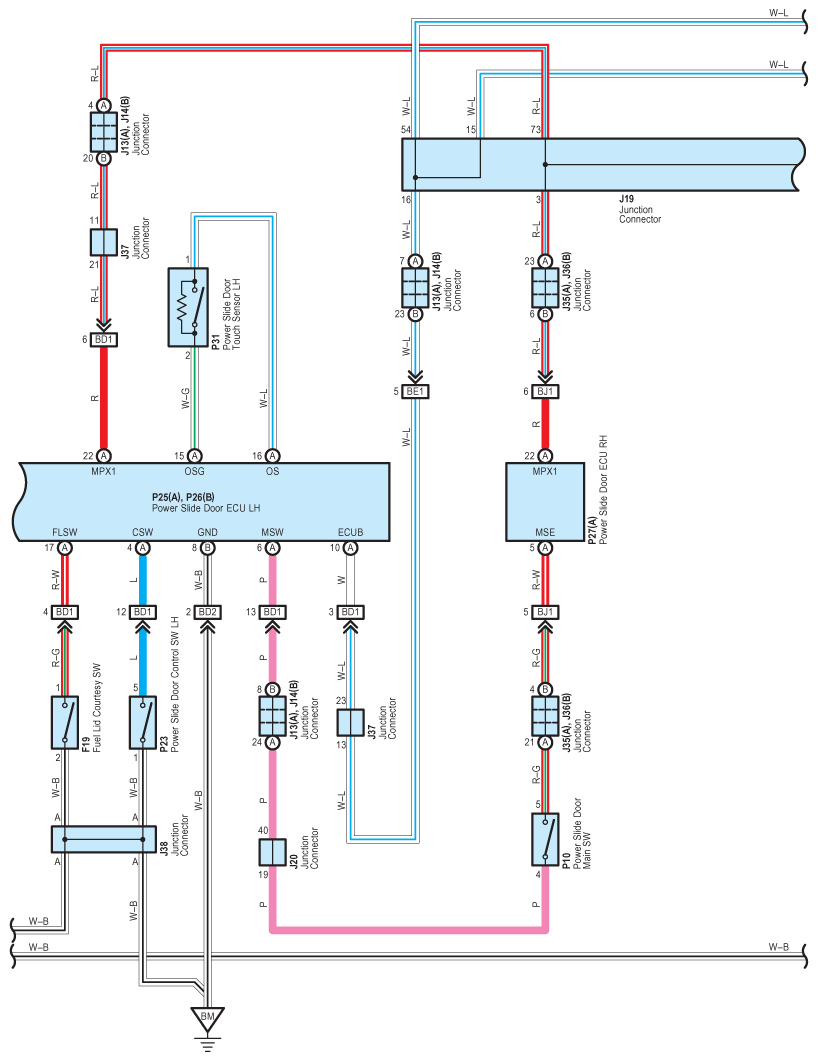

Fig 4: LH Power Slide Door System Wiring Diagram (4 Of 4)
