Mirror Heater: Notes

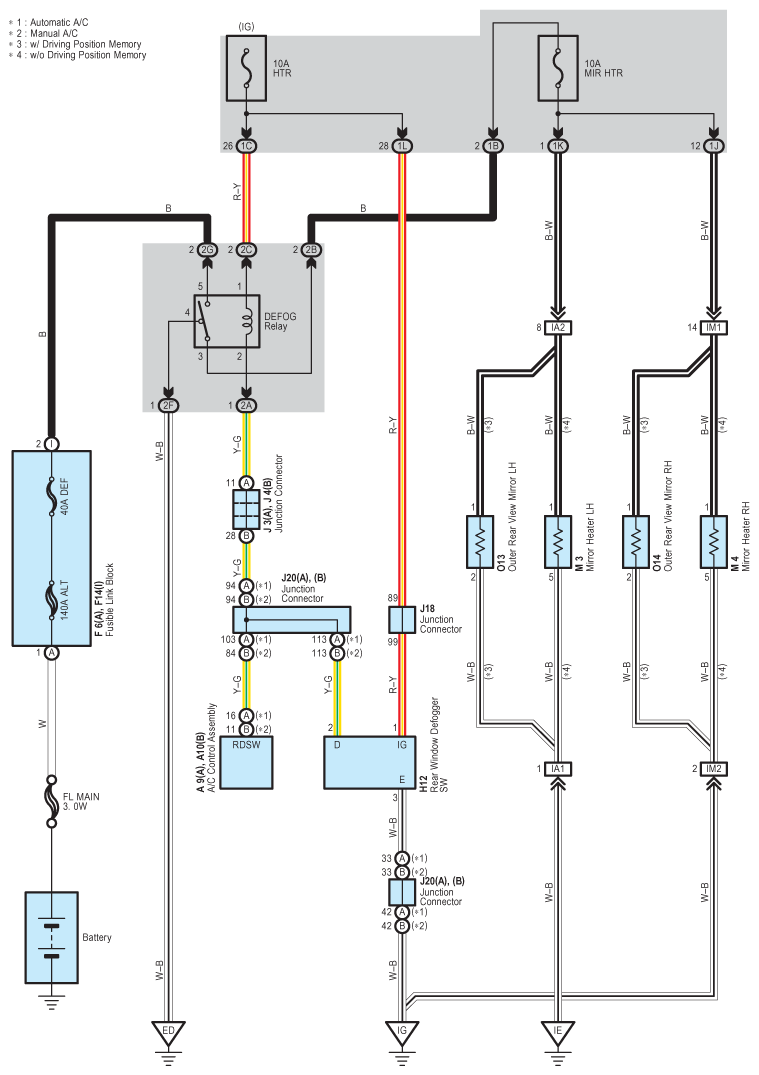

Fig 1: Mirror Heater System Wiring Diagram

G08842060

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
