Power Outlet (115V)
›
Notes
Power Outlet (115V): Notes

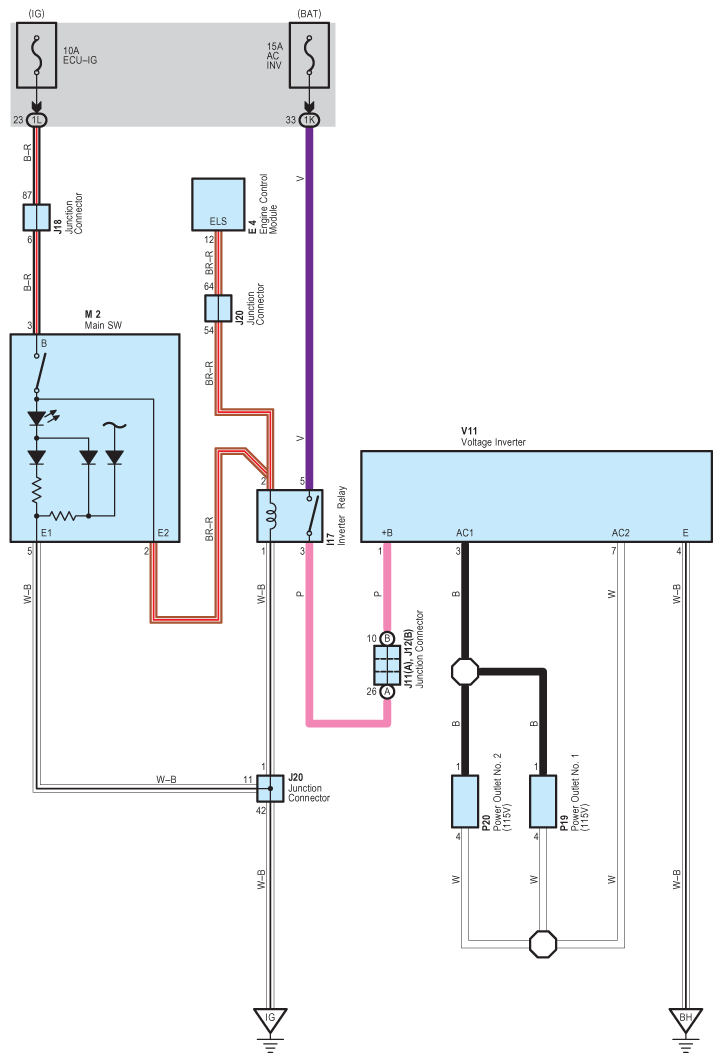

Fig 1: Power Outlet System (115V) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
