Driver Side Power Window Does Not Operate With Power Window Master Switch: Wiring Diagram

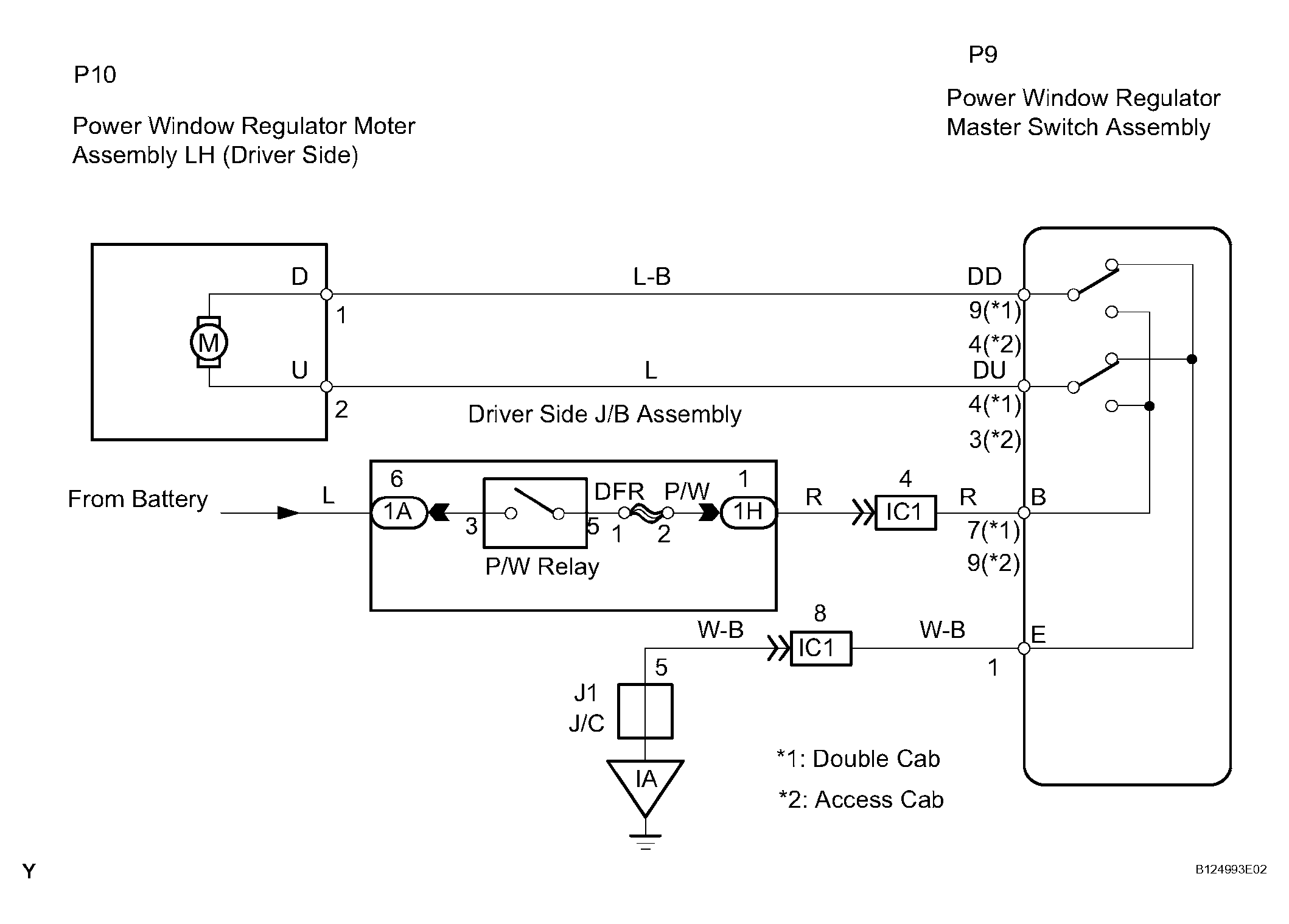

Fig 1: Driver Side Power Window Does Not Operate With Power Window Master Switch - Wiring Diagram
G04412841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
