2007
›
Tacoma PreRunner, 2D Pickup
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System (2TR-FE)
›
SFI System
›
EVAP System
›
Wiring Diagram
EVAP System: Wiring Diagram

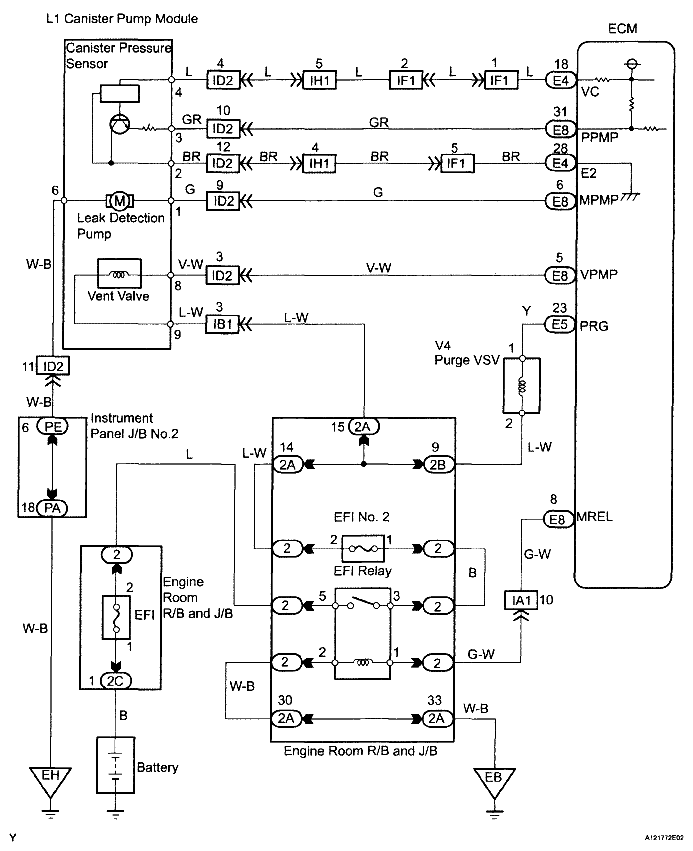

Fig 1: Canister Pump Module - Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
