Parts Location
Parts Location

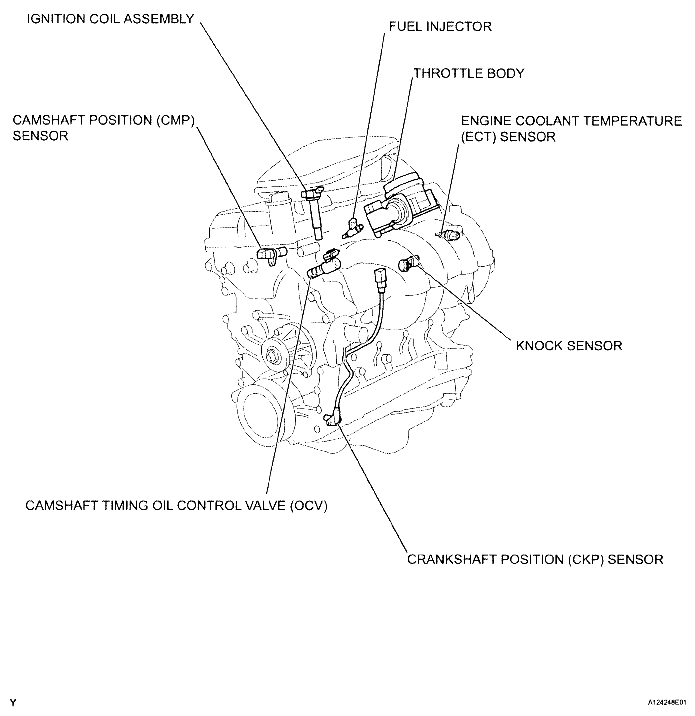

Fig 1: Identifying SFI System Parts Location (1 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

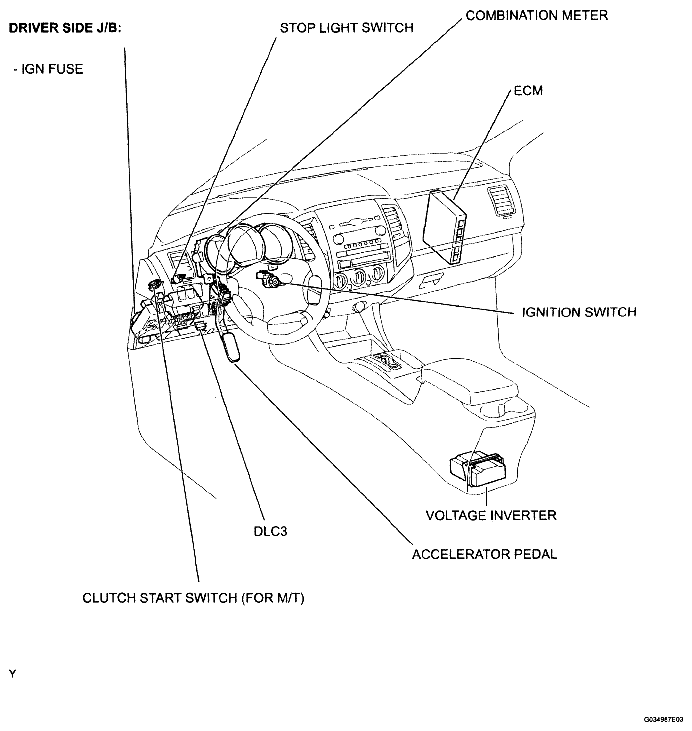

Fig 2: Identifying SFI System Parts Location (2 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

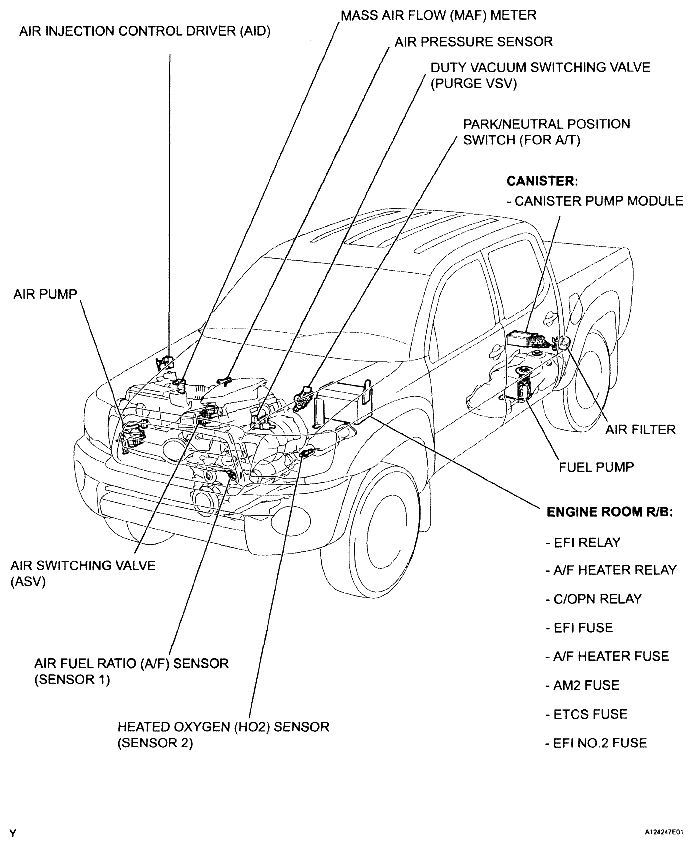

Fig 3: Identifying SFI System Parts Location (3 Of 3)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
