Fuel Tank: Components

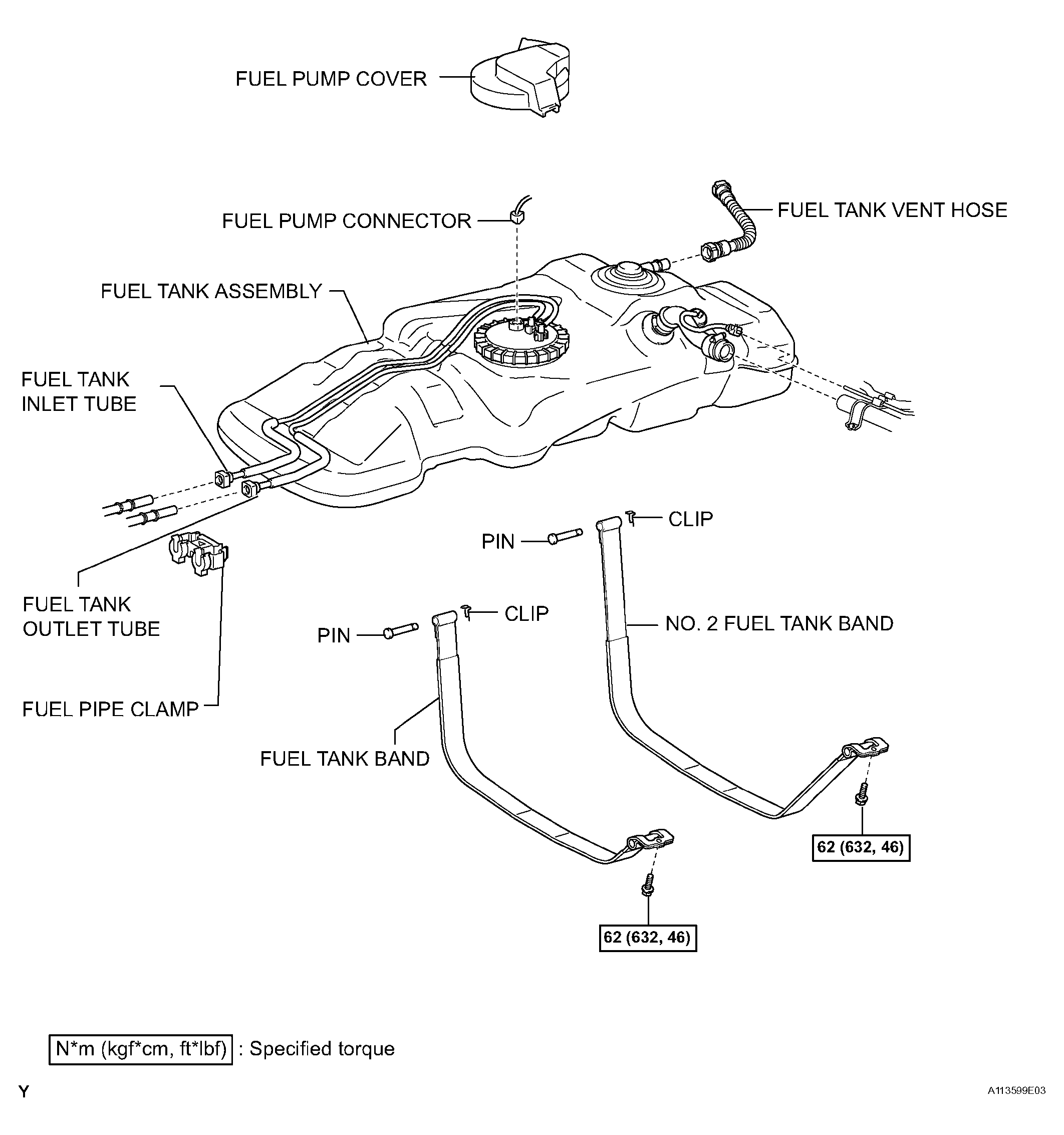

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 2)
G04409242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

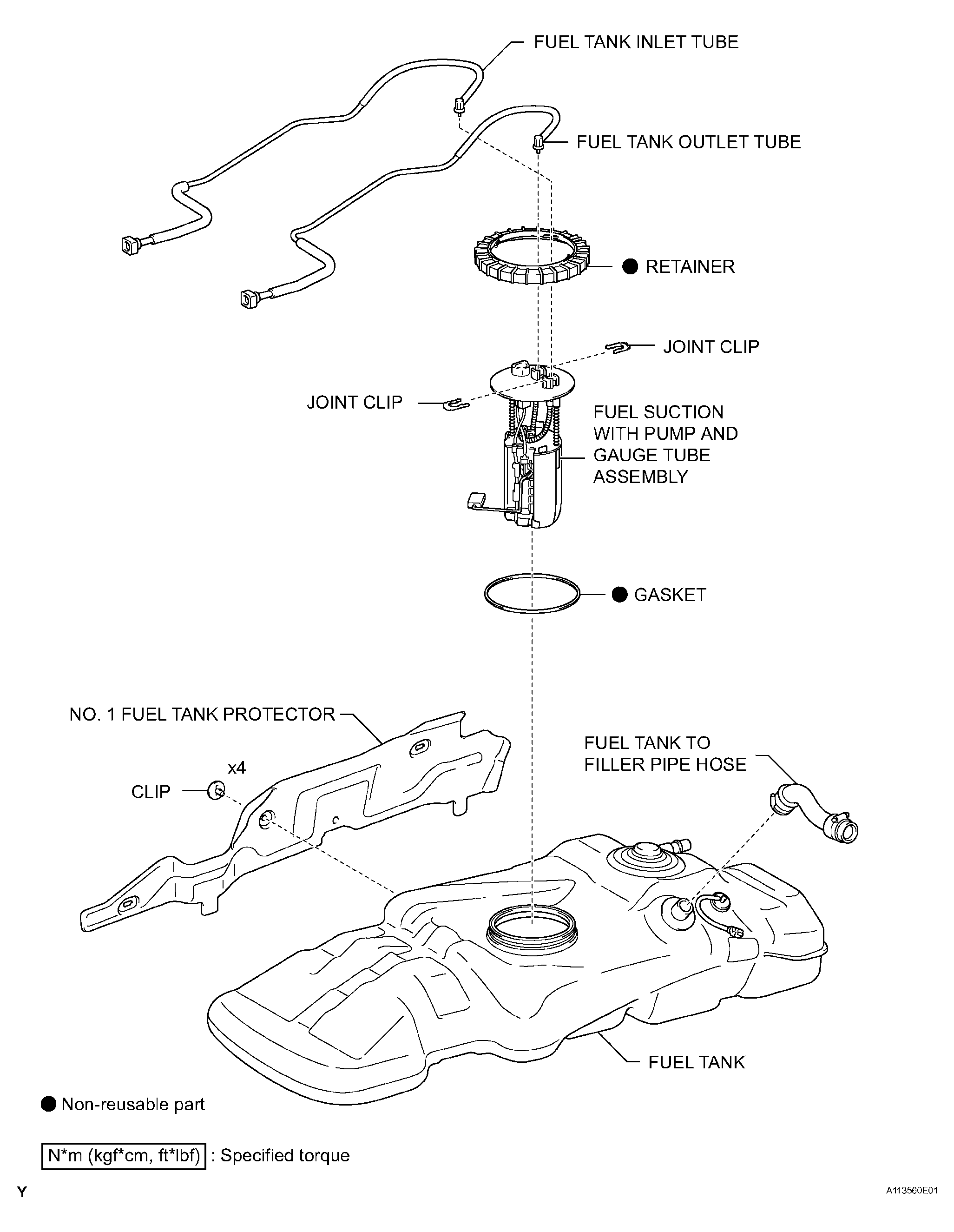

Fig 2: Identifying Fuel Tank Components (2 Of 2)
G04409243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
