Wiper and Washer without INT Time SW: Notes

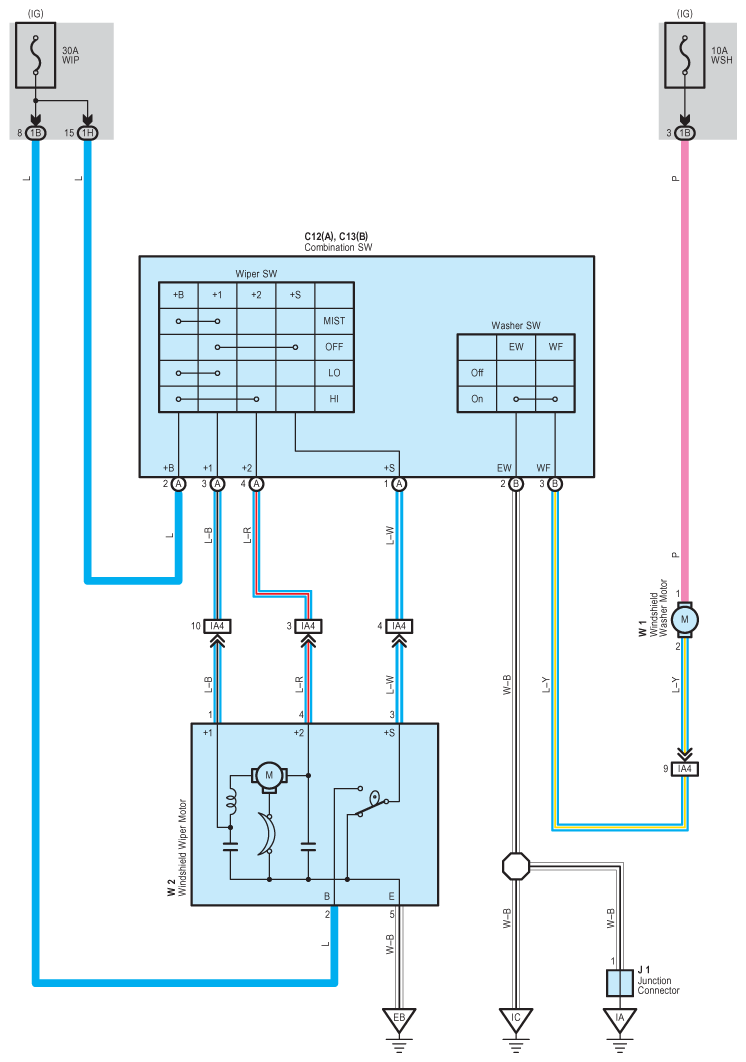

Fig 1: Wiper And Washer Without INT Time SW System Wiring Diagram
G08796858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
