Accessory Meter
›
Notes
Accessory Meter: Notes

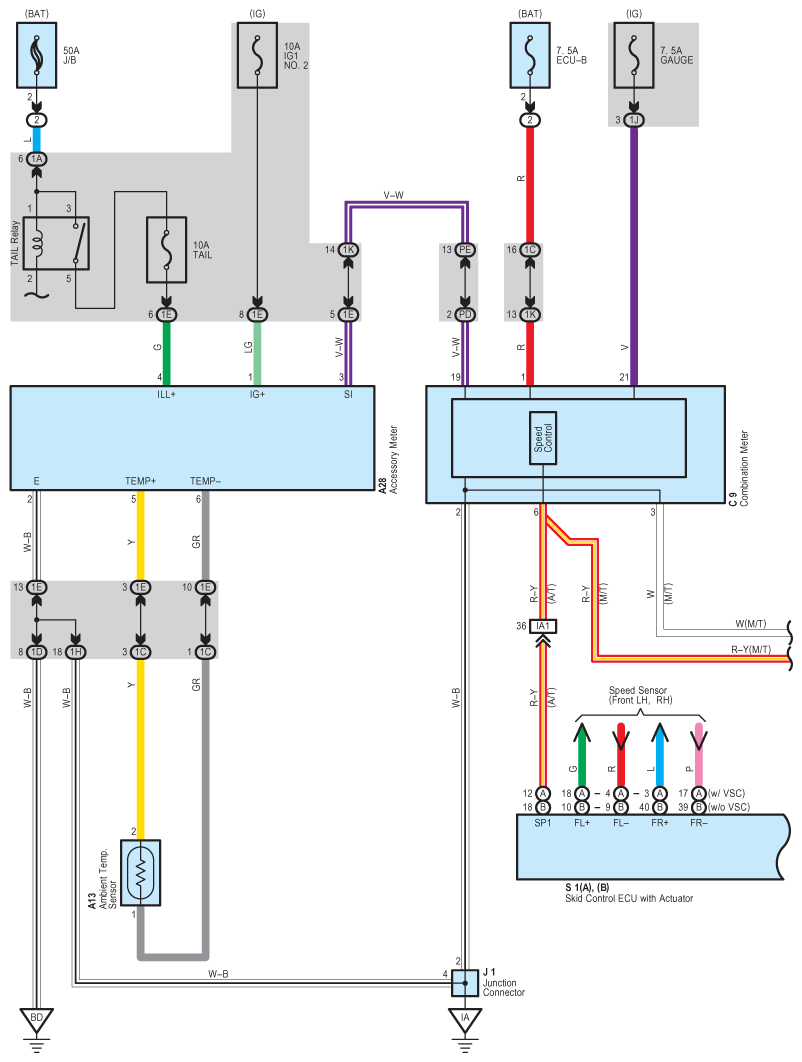

Fig 1: Accessory Meter System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

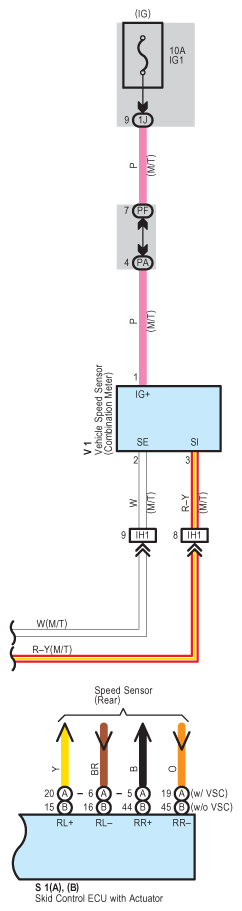

Fig 2: Accessory Meter System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
