Engine Immobilizer System for 1GR-FE
›
Notes
Engine Immobilizer System for 1GR-FE: Notes

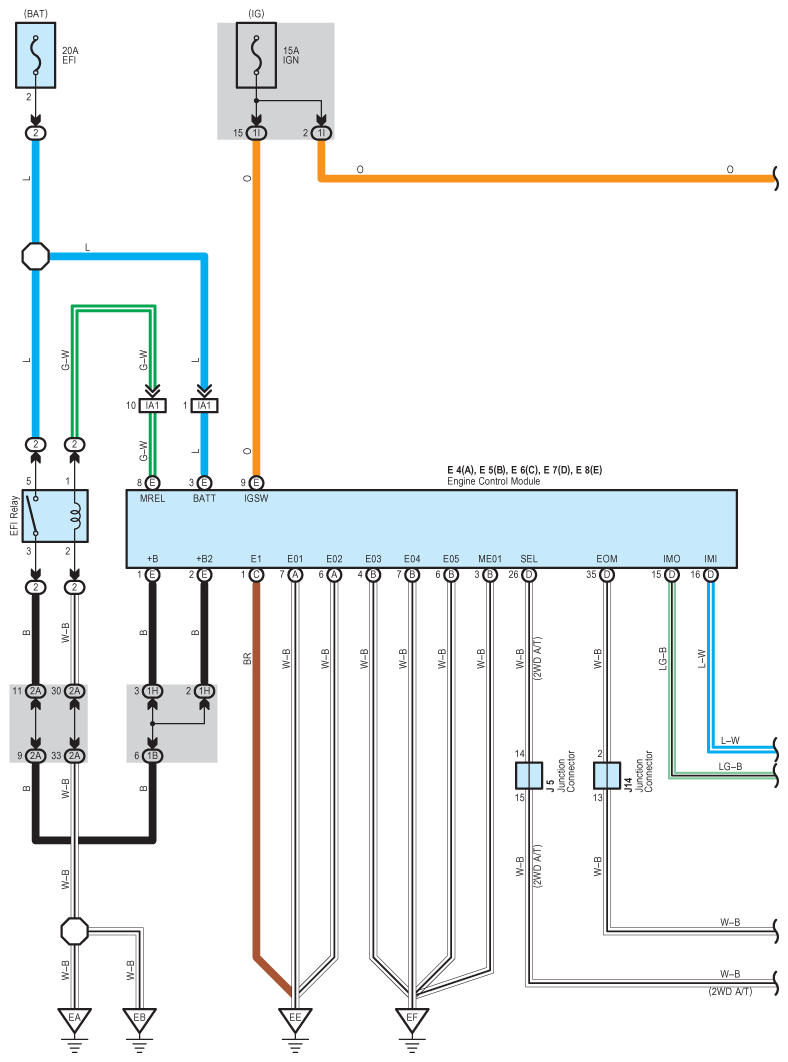

Fig 1: Engine Immobilizer System For 1GR-FE System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

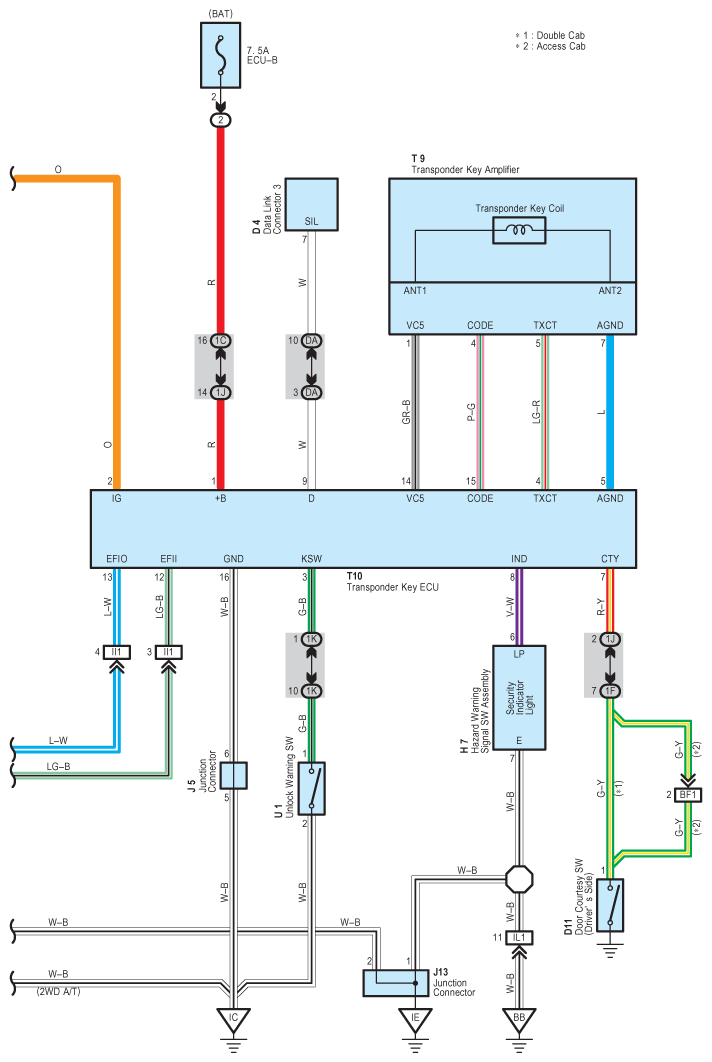

Fig 2: Engine Immobilizer System For 1GR-FE System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
