Engine Immobilizer System for 2TR-FE: Notes

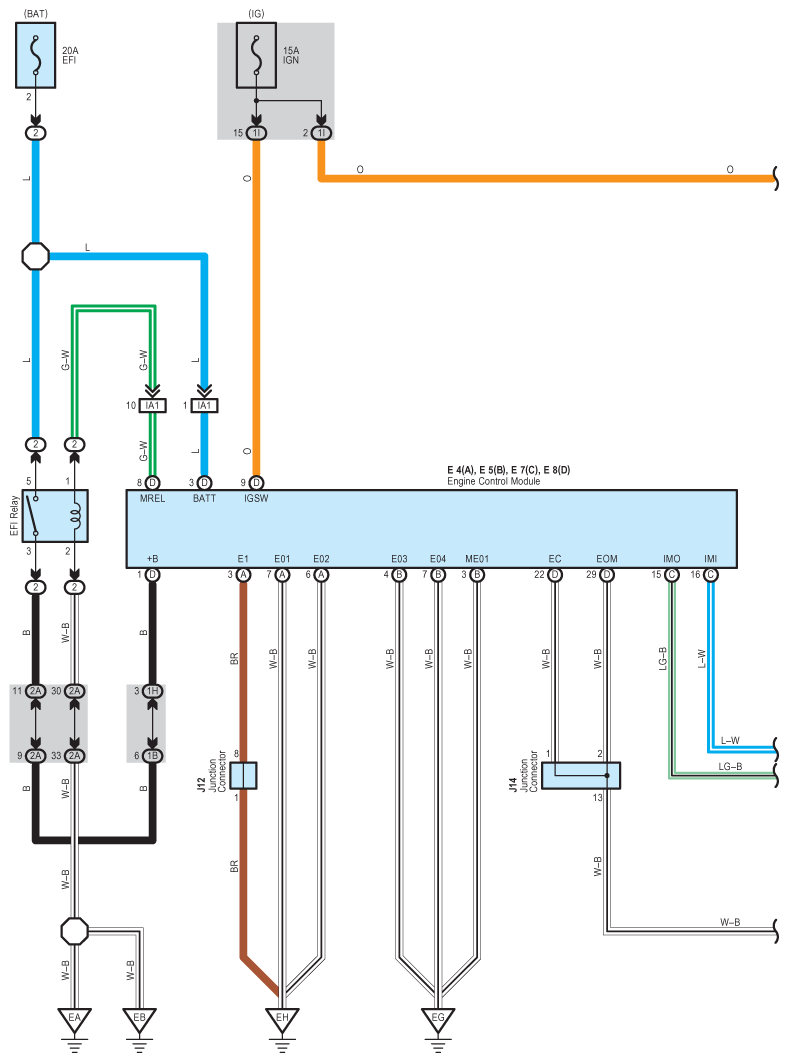

Fig 1: Engine Immobilizer System For 2TR-FE System Wiring Diagram (1 Of 2)
G08796790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

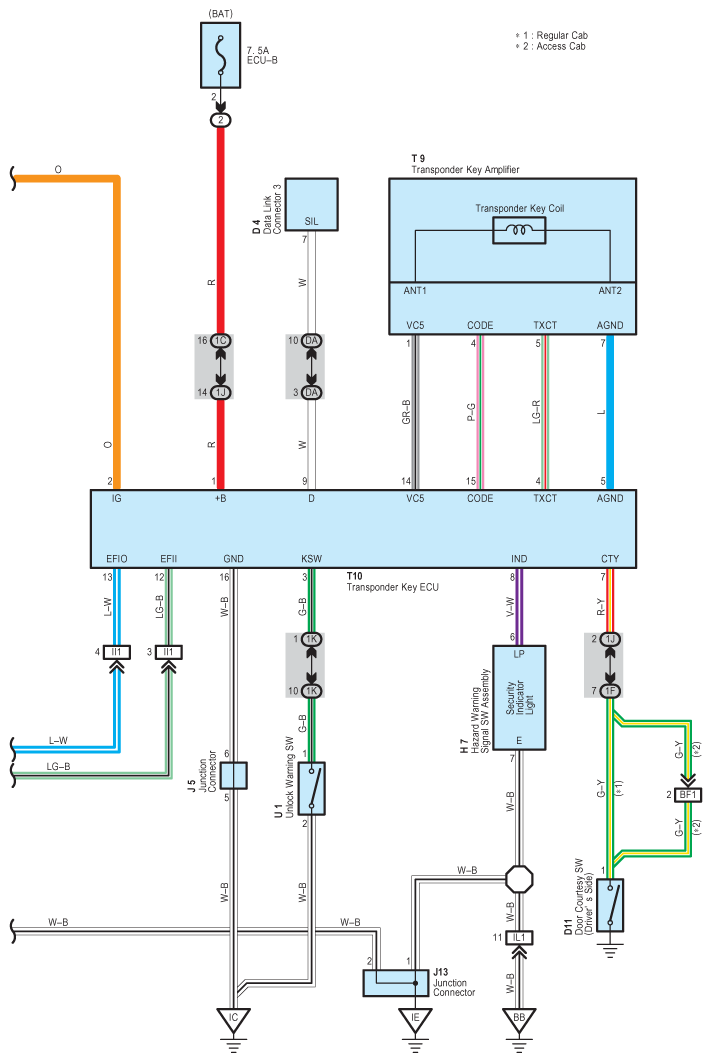

Fig 2: Engine Immobilizer System For 2TR-FE System Wiring Diagram (2 Of 2)
G08796791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
