Power Outlet for 115V
›
Notes
Power Outlet for 115V: Notes
Fig 1: Power Outlet For 115V System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

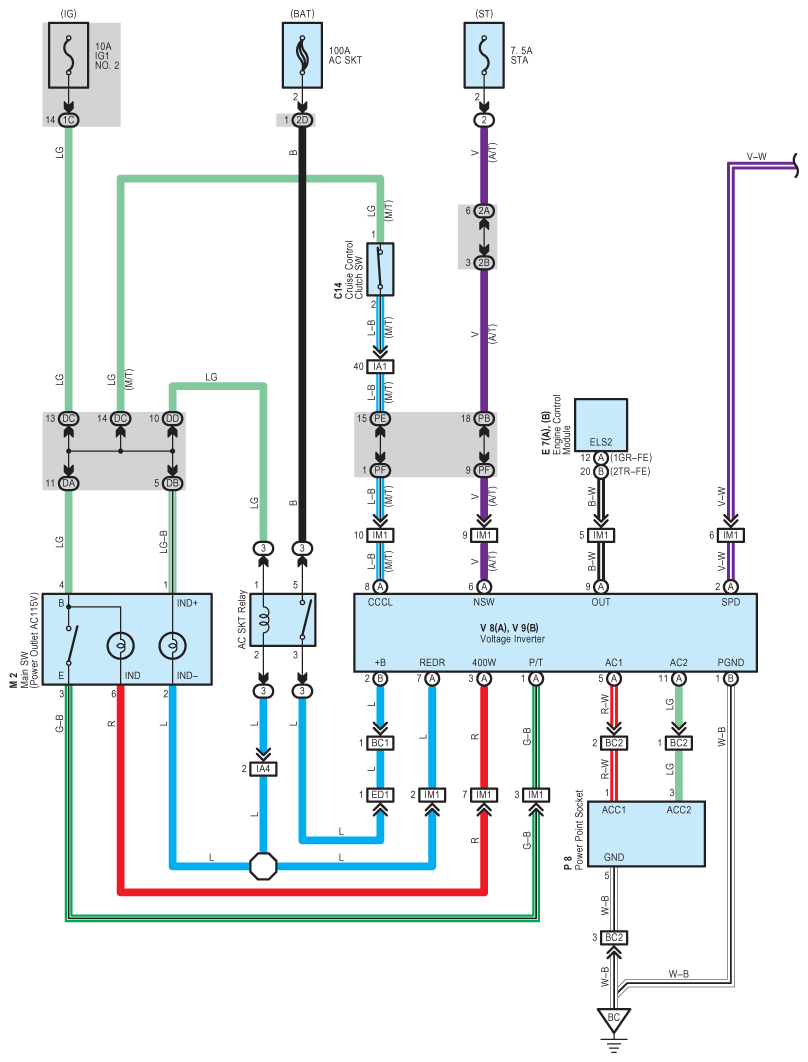

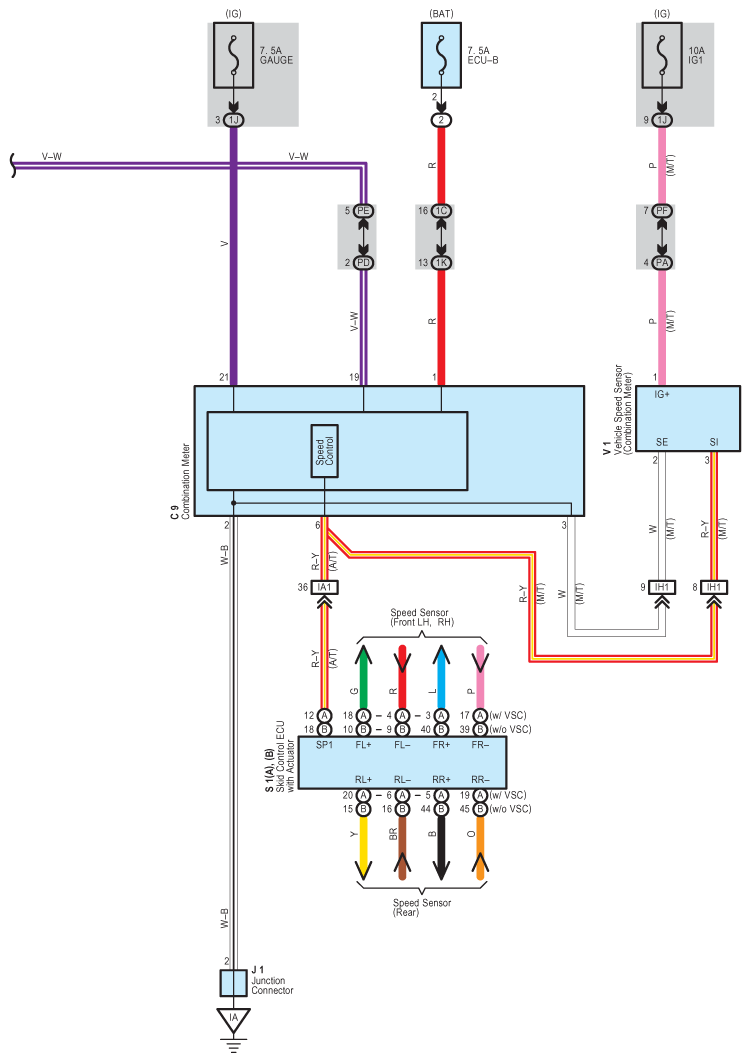

Fig 2: Power Outlet For 115V System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
