Rear Differential Lock for 2WD: Notes

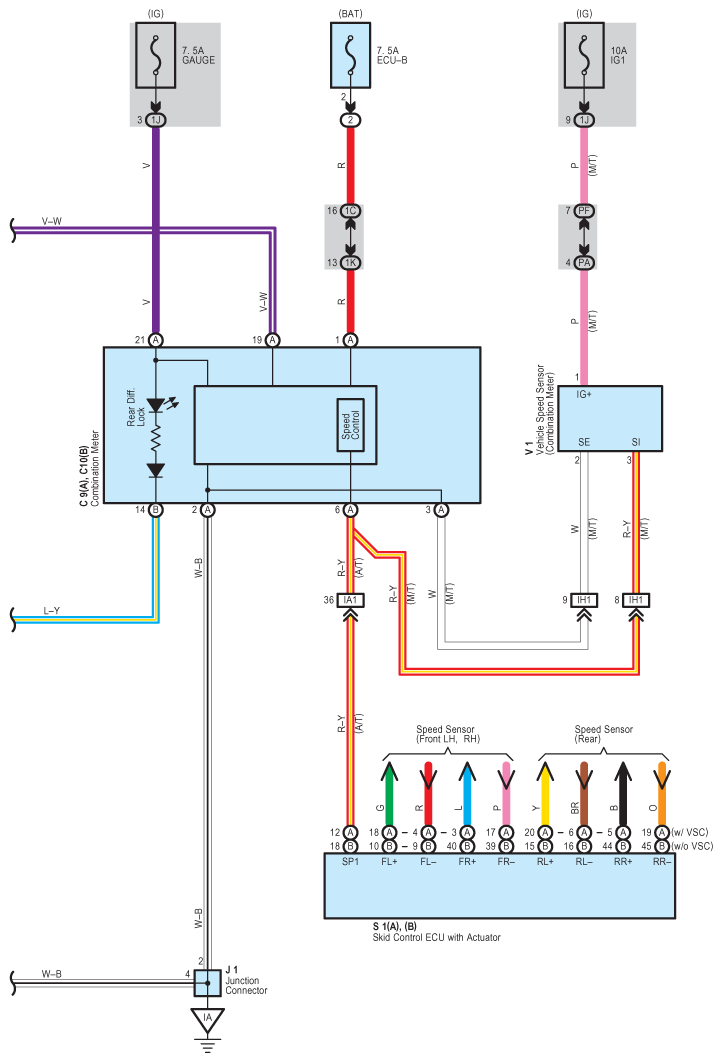

Fig 1: Rear Differential Lock For 2WD System Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Rear Differential Lock For 2WD System Wiring Diagram (2 Of 2)
