Home › Toyota › 2007 › Tacoma X-Runner › Repair and Diagnosis › Engine Performance › Engine Control System (1GR-FE) › SFI System › ECM Power Source Circuit › Wiring Diagram

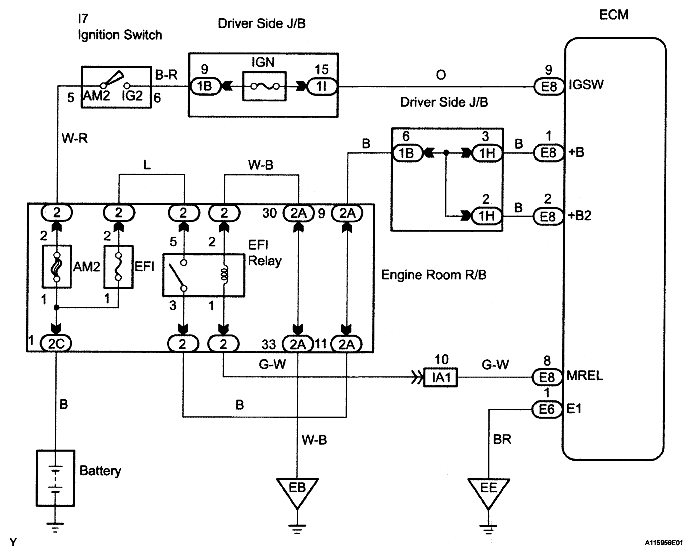

ECM Power Source Circuit: Wiring Diagram

Fig 1: Purge Flow Monitor Graph
G05197967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
