Rear Leaf Spring: Components

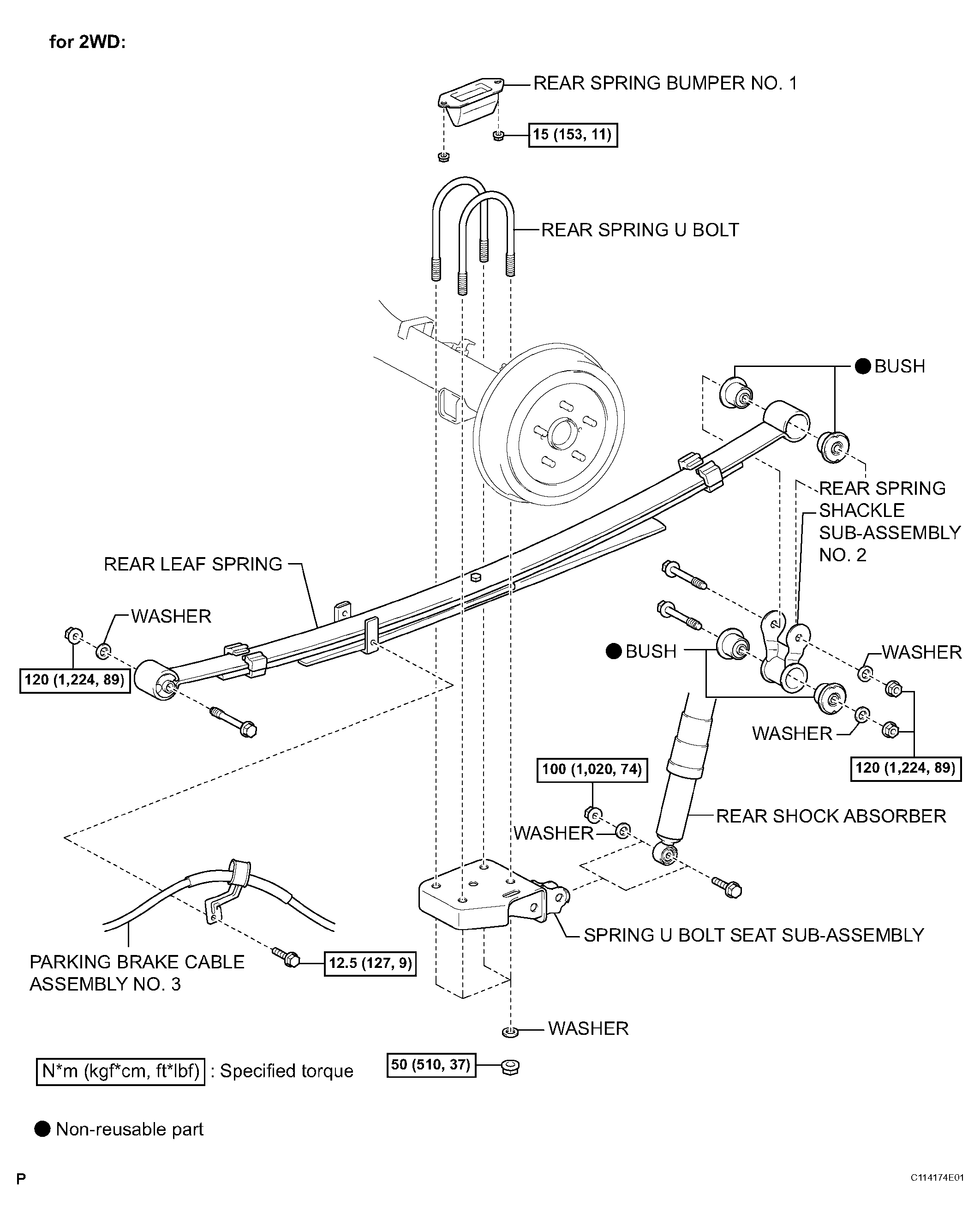

Fig 1: Rear Leaf Spring Replacement Components (For 2WD) & Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

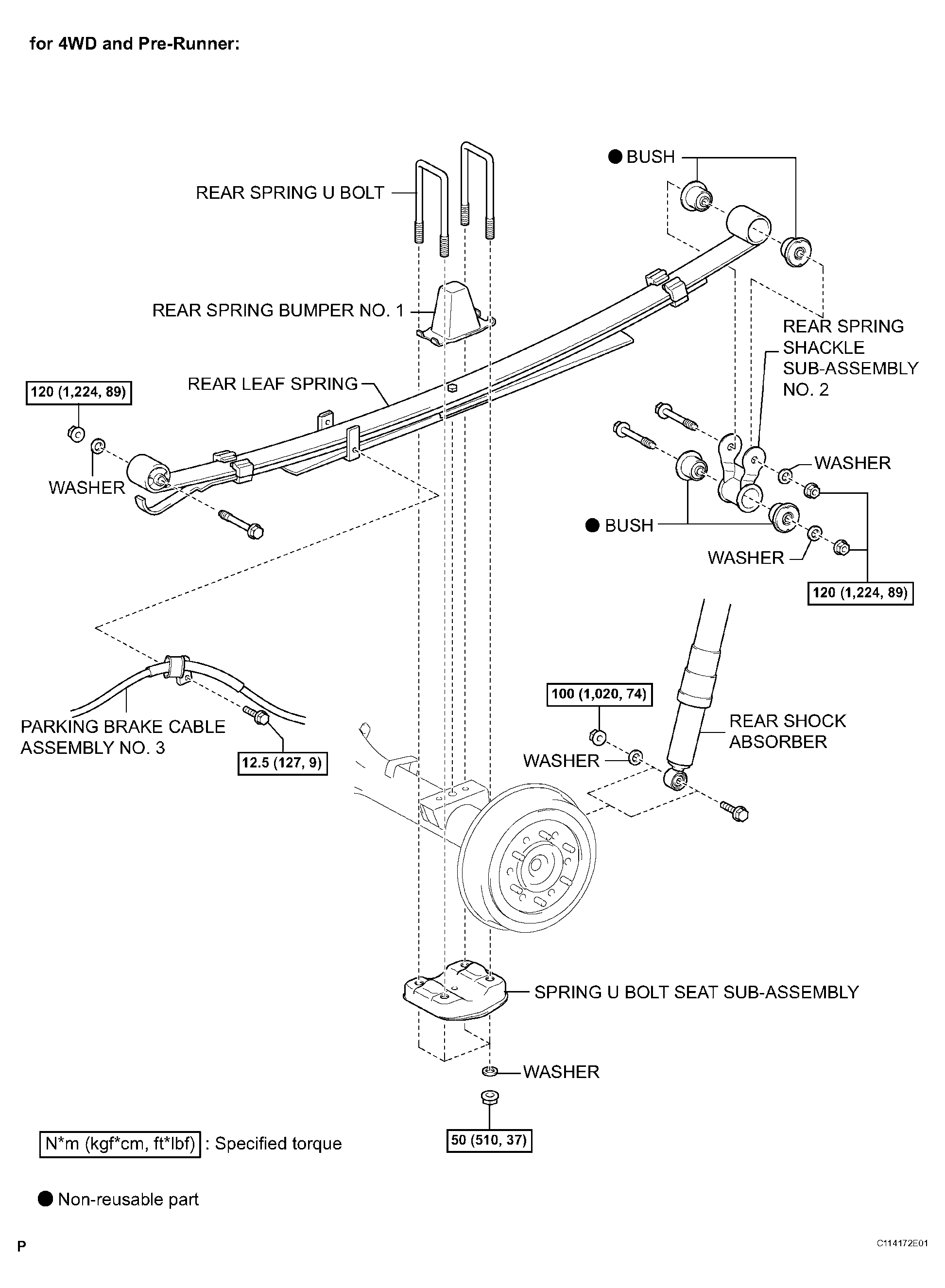

Fig 2: Rear Leaf Spring Replacement Components (For 4WD & Pre-Runner) & Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
