Cruise Control for 2UZ-FE: Notes

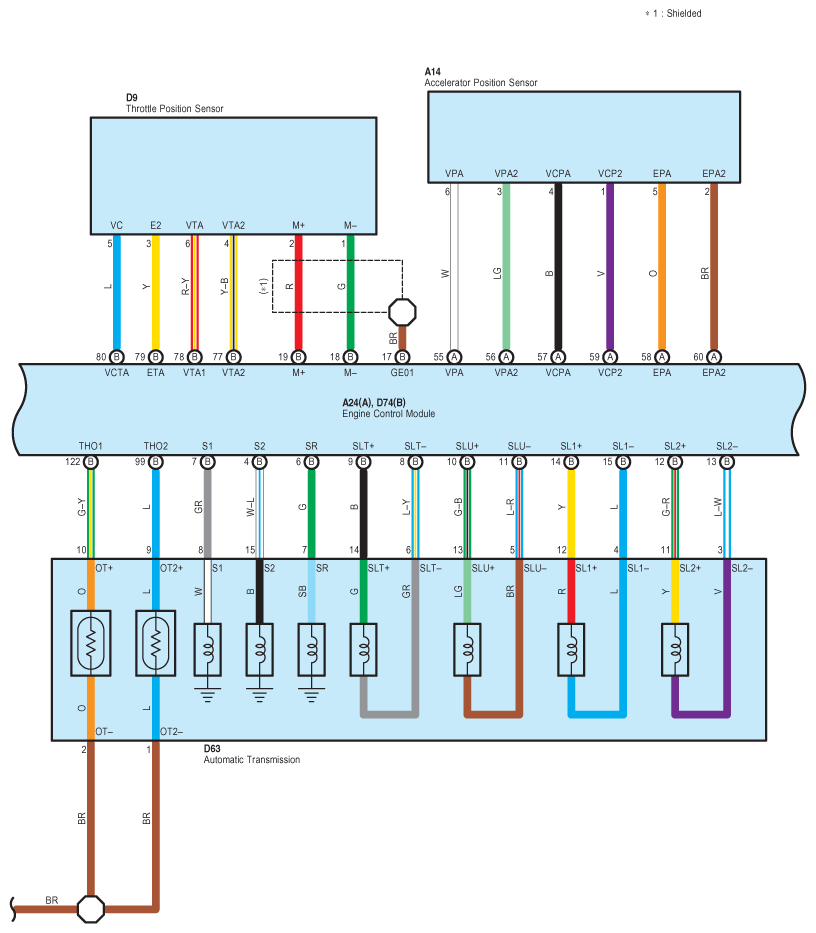

Fig 1: Cruise Control System Wiring Diagram (2UZ-FE; 1 Of 7)
G08790957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

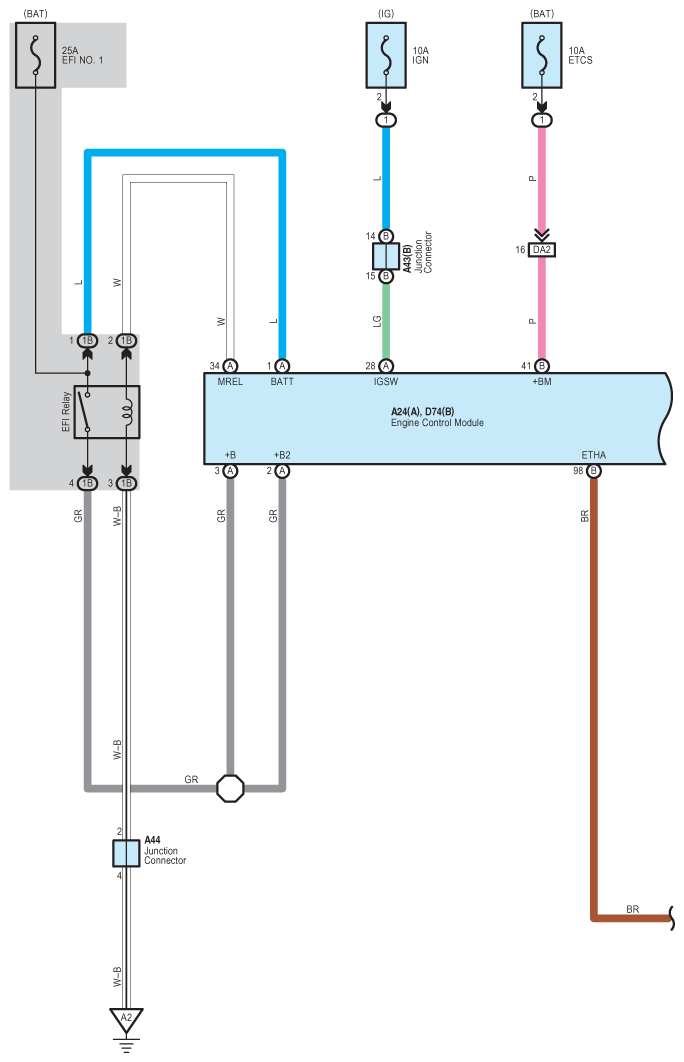

Fig 2: Cruise Control System Wiring Diagram (2UZ-FE; 2 Of 7)
G08790958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

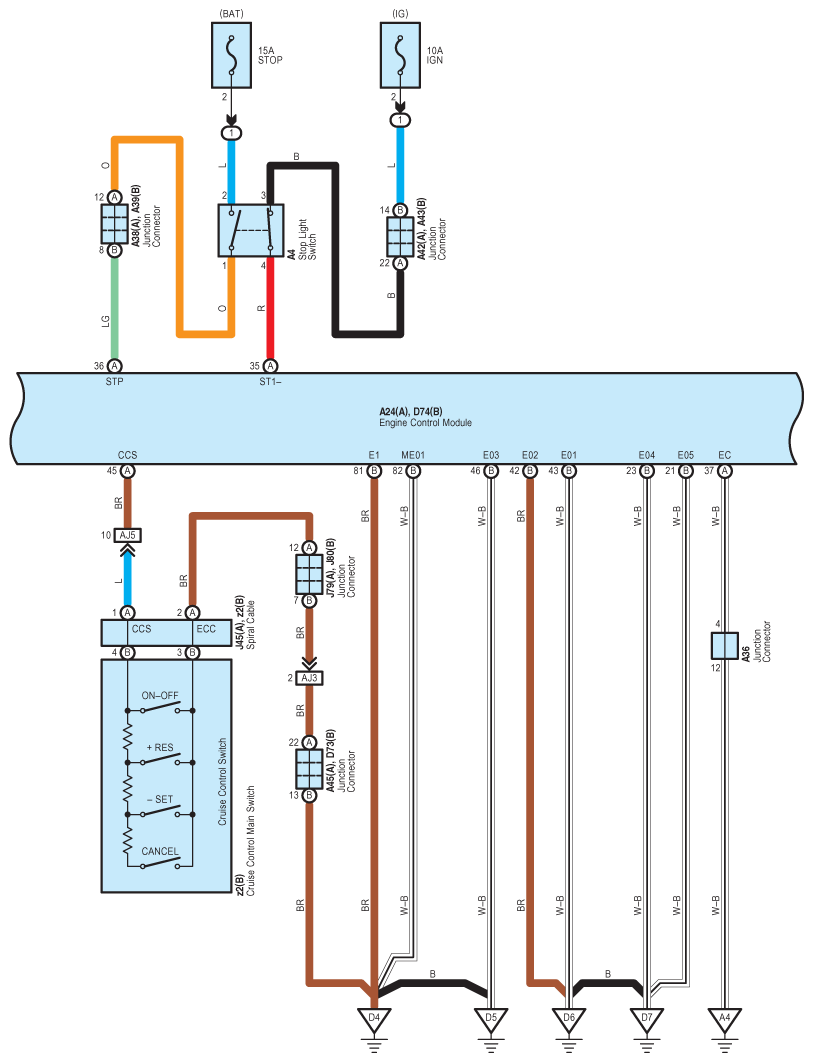

Fig 3: Cruise Control System Wiring Diagram (2UZ-FE; 3 Of 7)
G08790959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

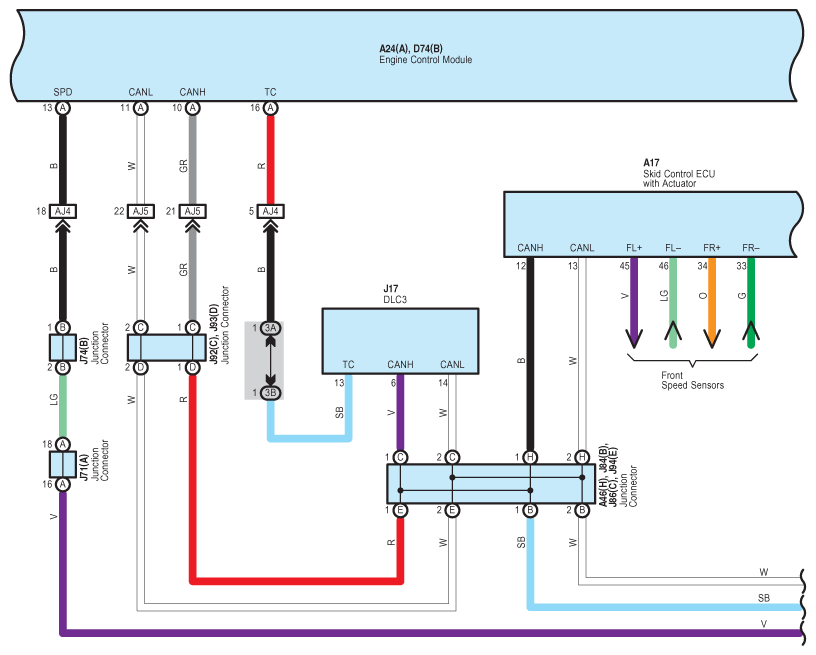

Fig 4: Cruise Control System Wiring Diagram (2UZ-FE; 4 Of 7)
G08790960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

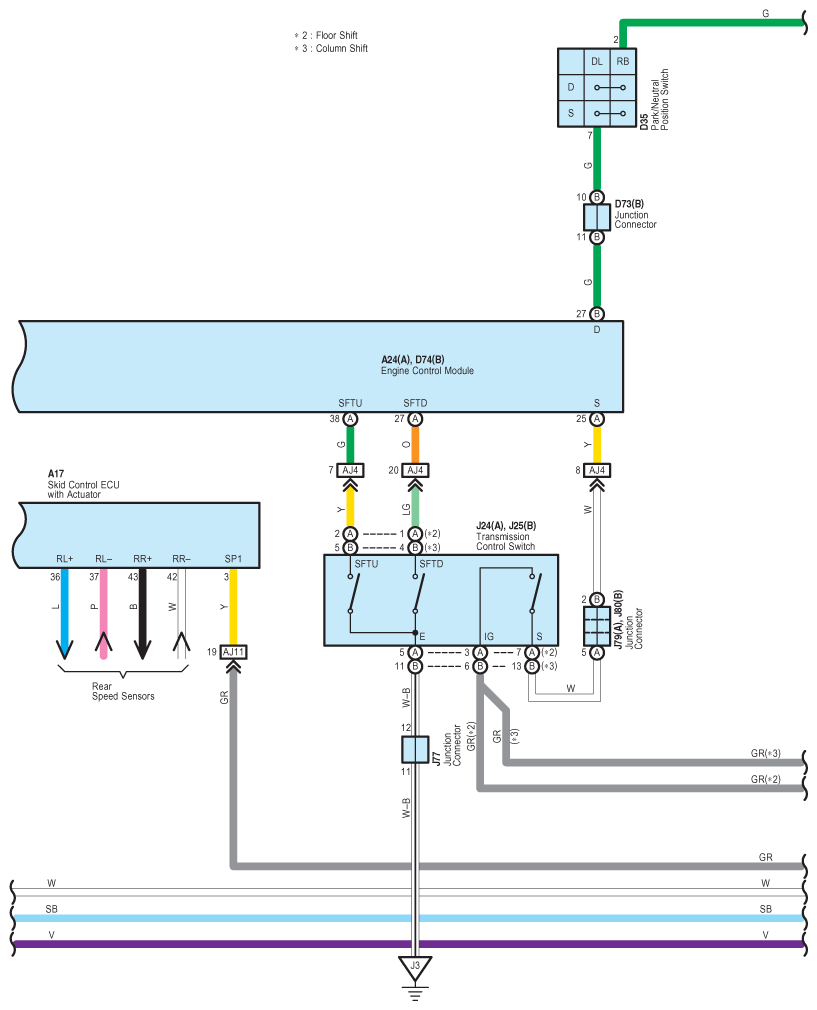

Fig 5: Cruise Control System Wiring Diagram (2UZ-FE; 5 Of 7)
G08790961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

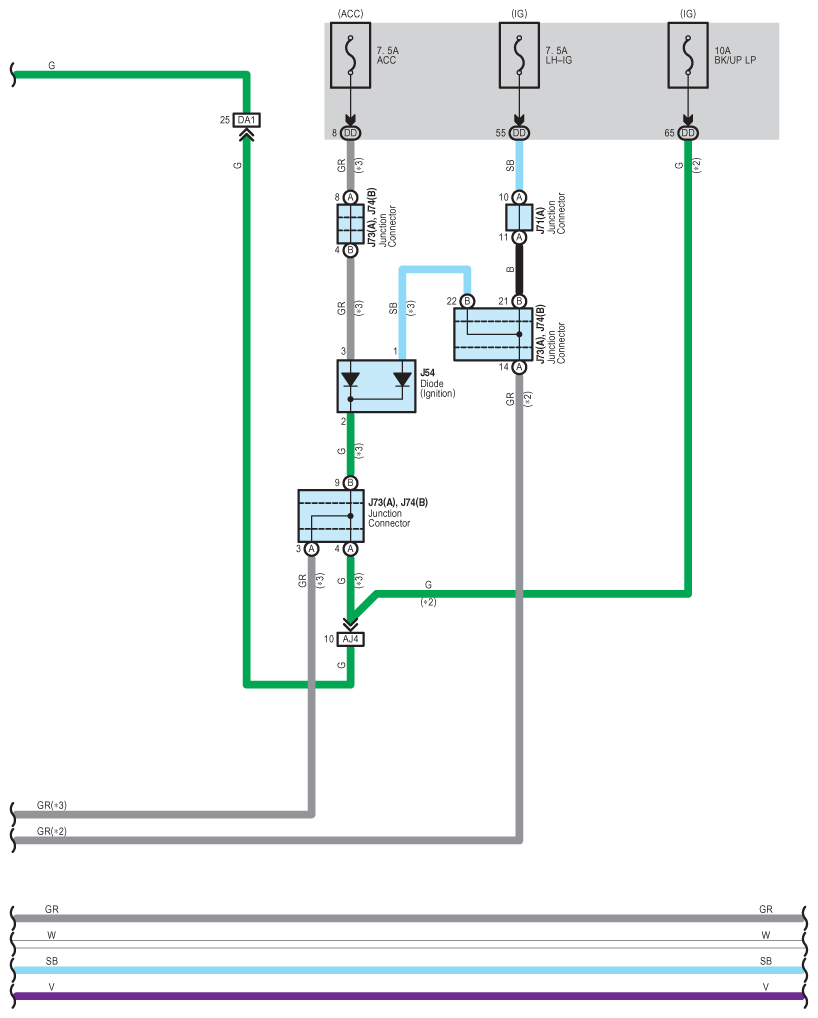

Fig 6: Cruise Control System Wiring Diagram (2UZ-FE; 6 Of 7)
G08790962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

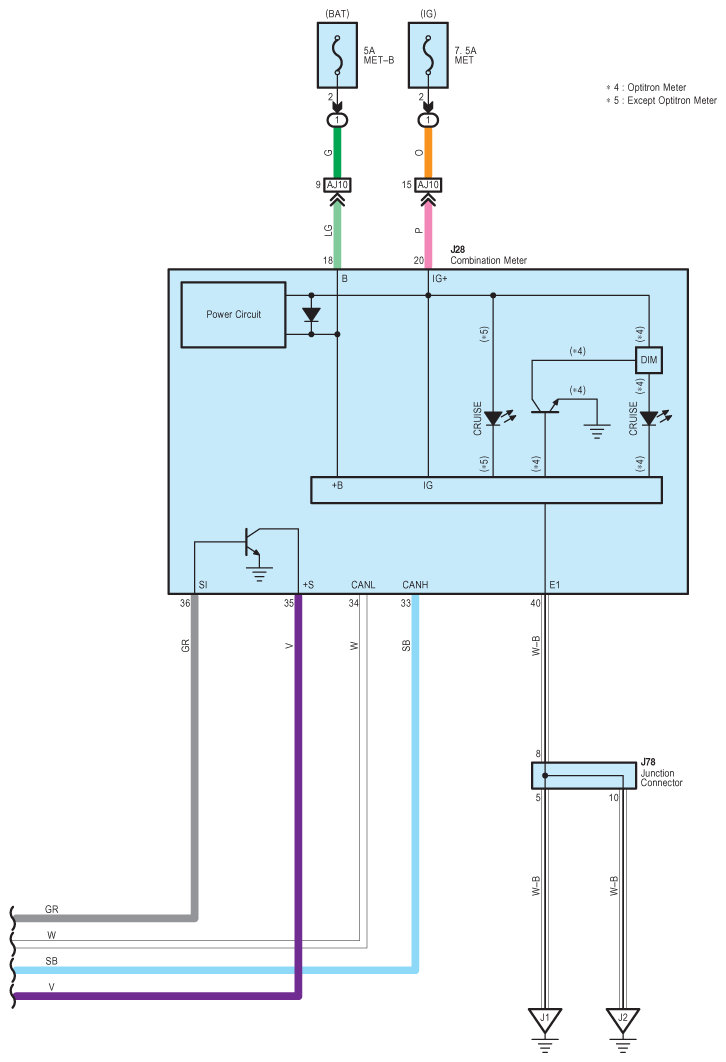

Fig 7: Cruise Control System Wiring Diagram (2UZ-FE; 7 Of 7)
G08790963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
