Shift Lock for Floor Shift: Notes

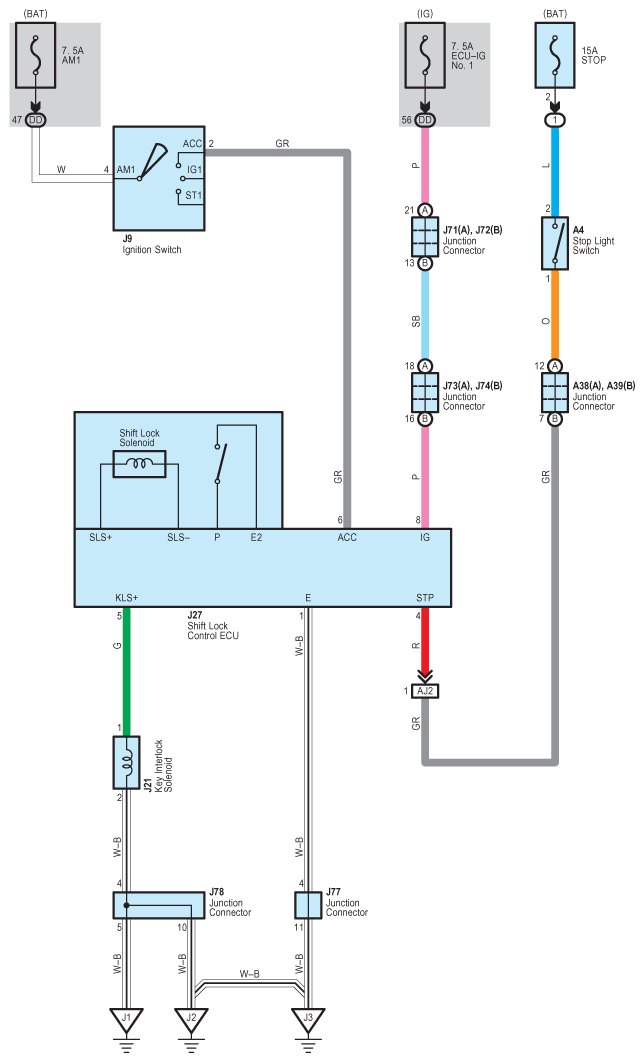

Fig 1: Shift Lock System Wiring Diagram (For Floor Shift)
G08791033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
