Ignition Coil And Spark Plug: Components

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (1 Of 2)
G05157898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

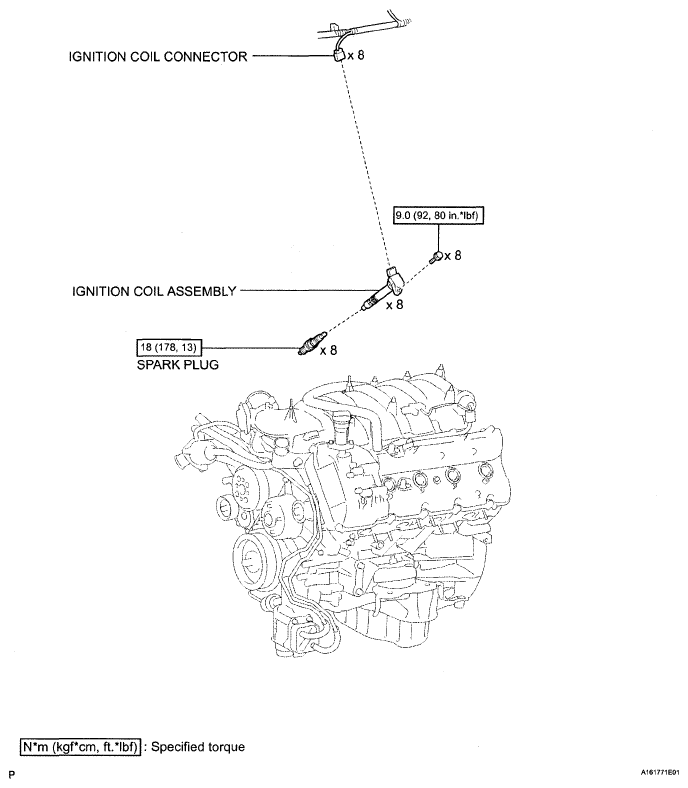

Fig 2: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (2 Of 2)
G05157899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
