Multiplex Communication System - CAN: Notes

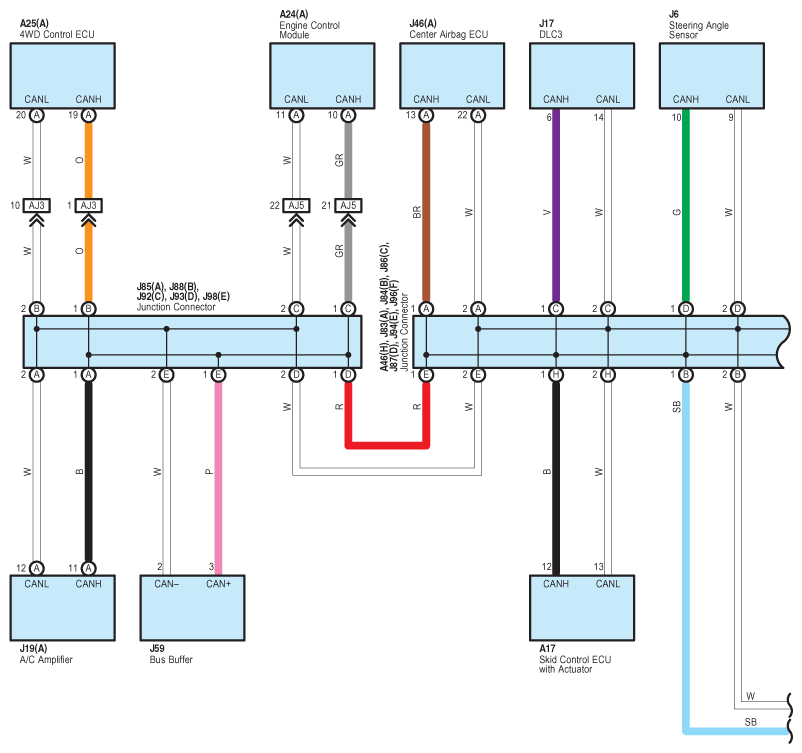

Fig 1: Multiplex Communication System Wiring Diagram - CAN (1 Of 2)
G08790883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

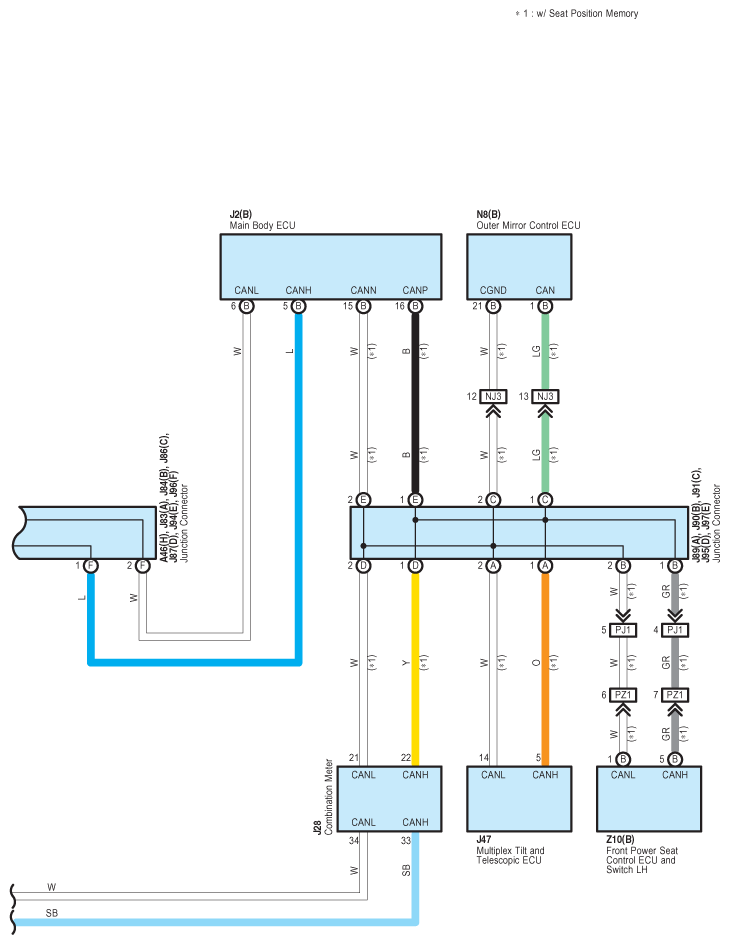

Fig 2: Multiplex Communication System Wiring Diagram - CAN (2 Of 2)
G08790884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
