Power Window: Notes

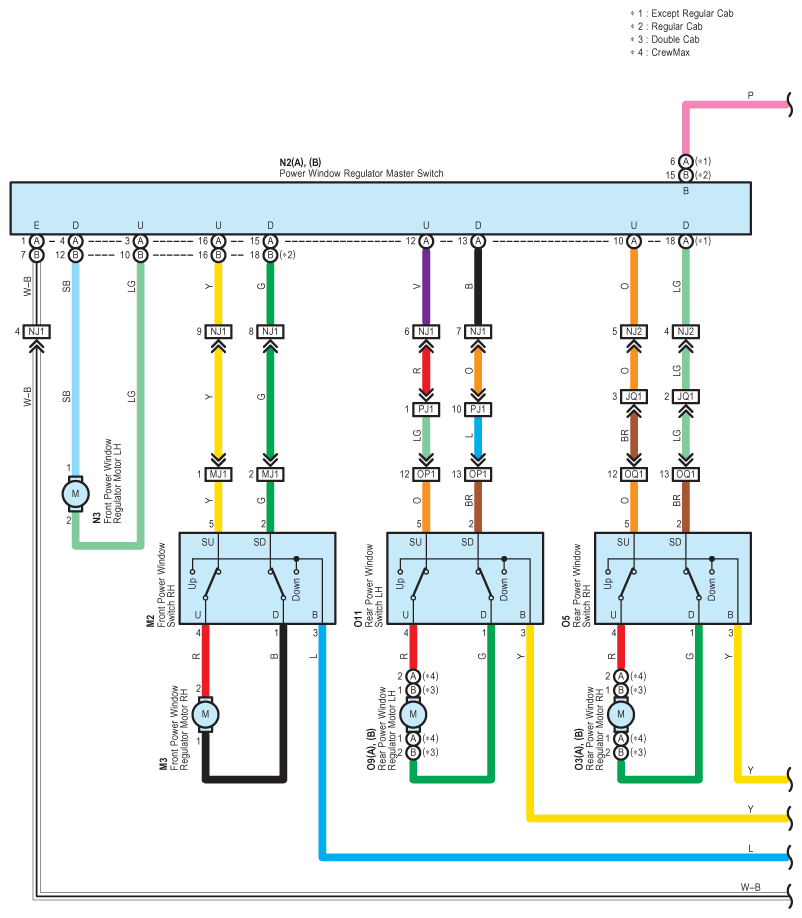

Fig 1: Power Window System Wiring Diagram (1 Of 3)
G08790997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

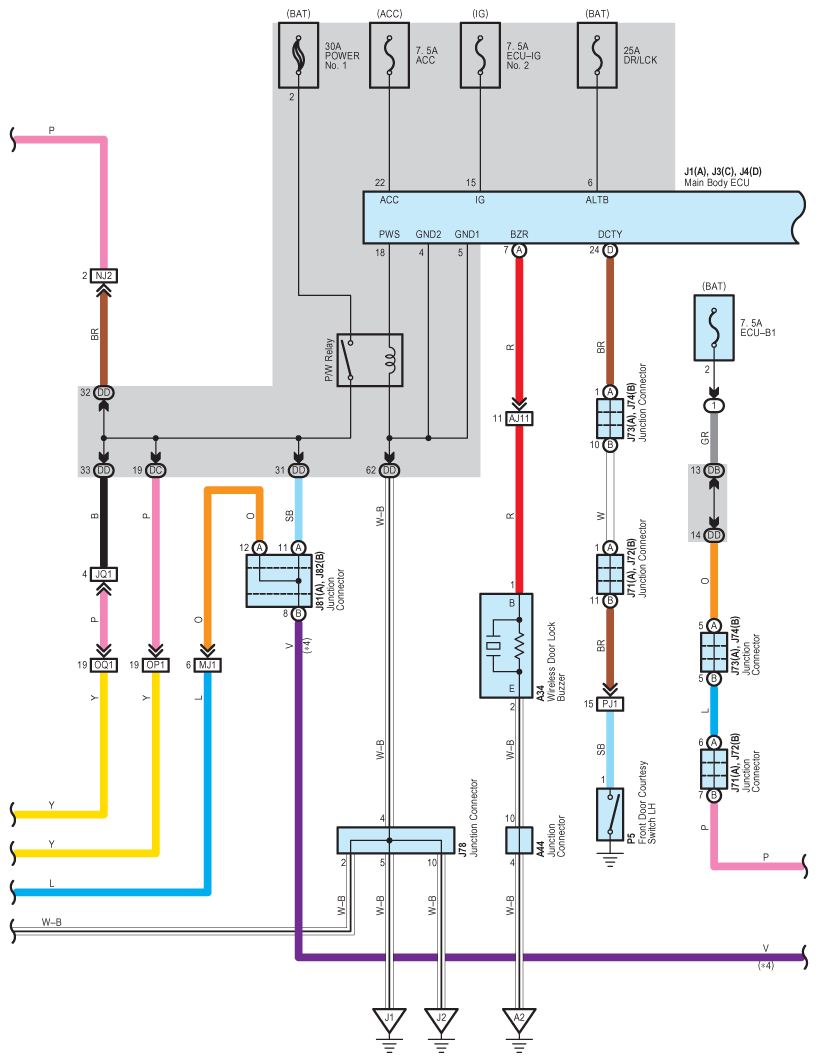

Fig 2: Power Window System Wiring Diagram (2 Of 3)
G08790998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

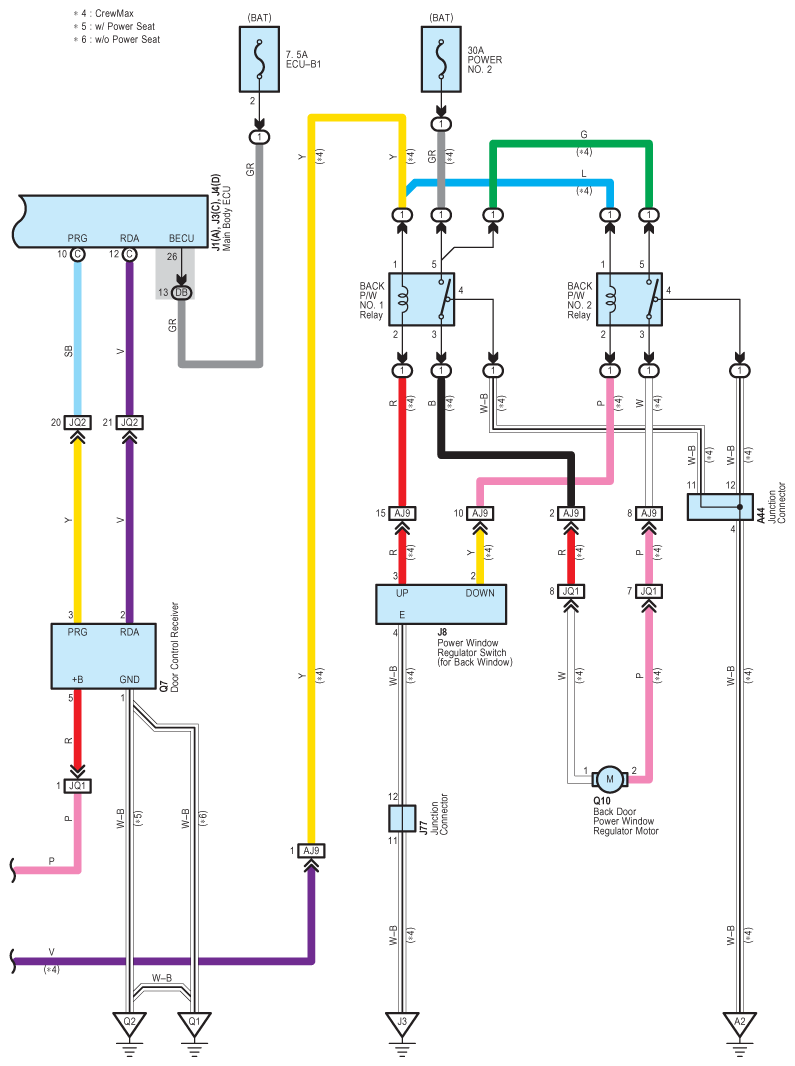

Fig 3: Power Window System Wiring Diagram (3 Of 3)
G08790999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
